Double Infrared Sensors with Automatic Setup and Indicator Light

Automatic Self-adapting Sensor Technology

Low Battery Indicator

Magnetic Solenoid Valve

Water Supply Connection with Flexible High-pressure Hose and Strainer

6 Volt Lithium 2CR5 Commercial Battery included

Appropriate Mounting Hardware included

Optional 24 Hour Sentinel Activation

3 year limited warranty

Touch-free operation improves hand washing hygiene

Modular one-piece construction easily attaches to deck surface

All electronics in spout are sealed

Designed for drip free foam dispensing operation

Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Motor assembly rotates 360 degrees for easy installation

Battery life of 45,000 activations. 1-2 years based on usage.

Approx. 1,500 dispenses per foam soap bottle

Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Ships with battery pack (4 "D" Alkaline batteries included)

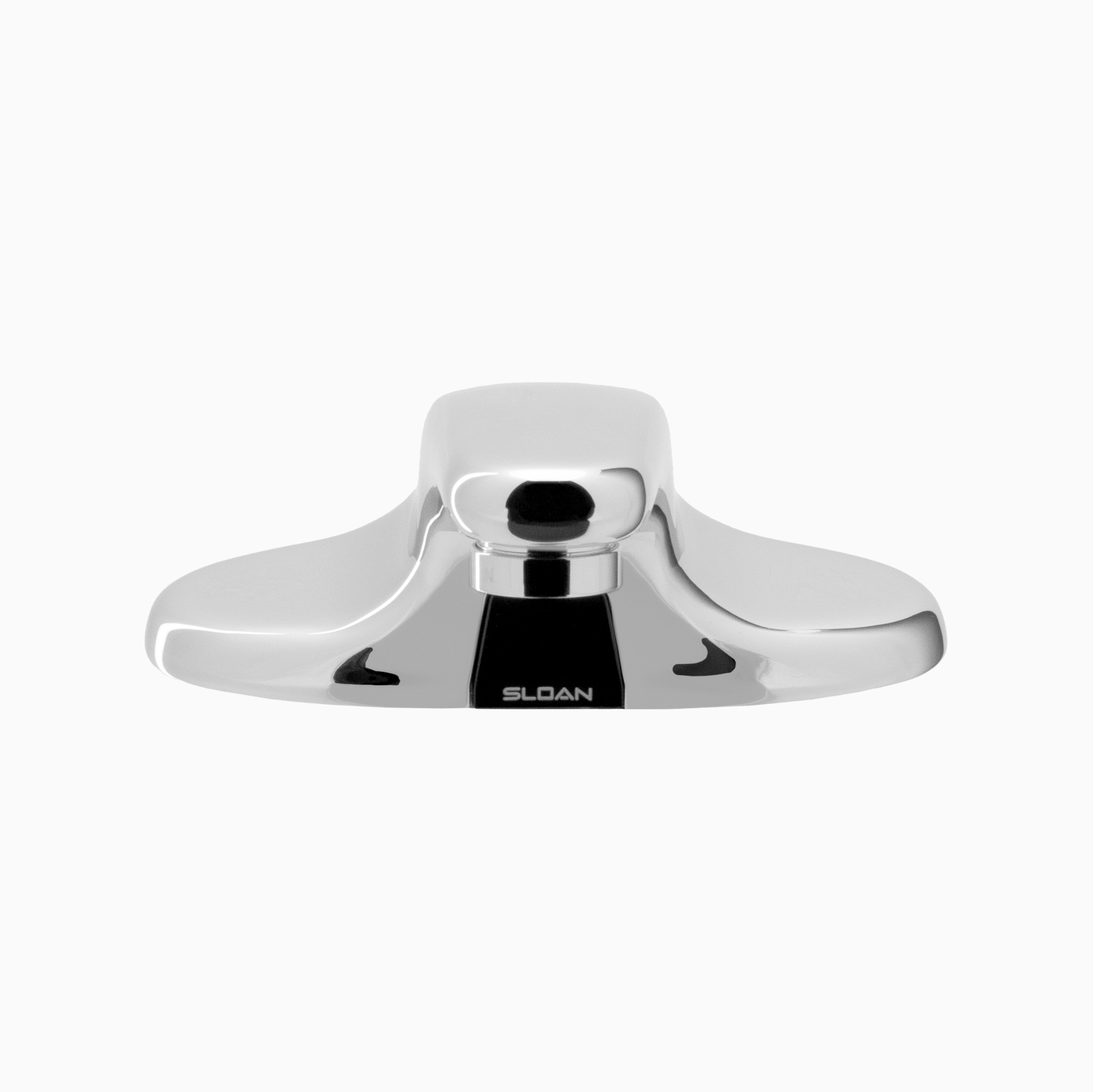

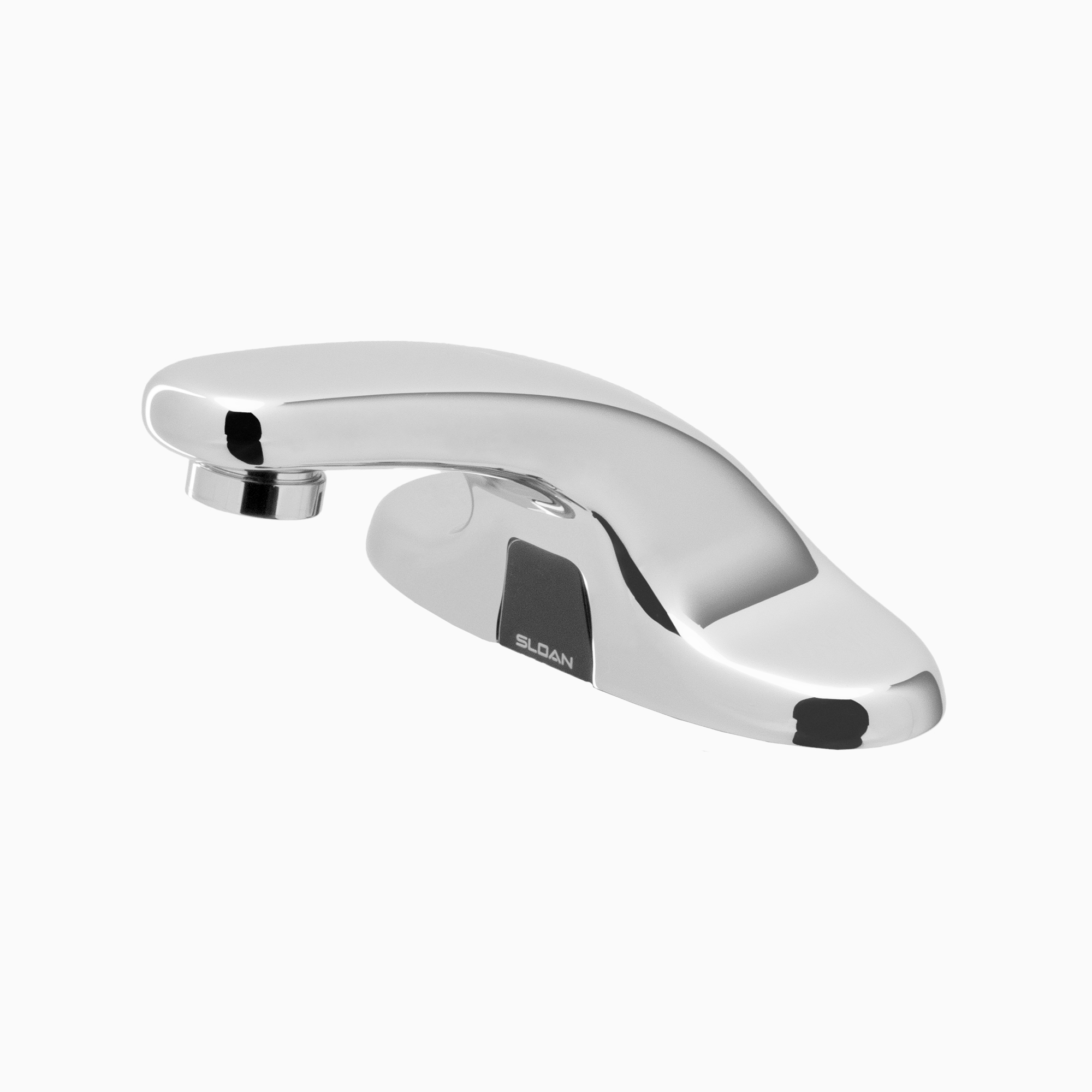

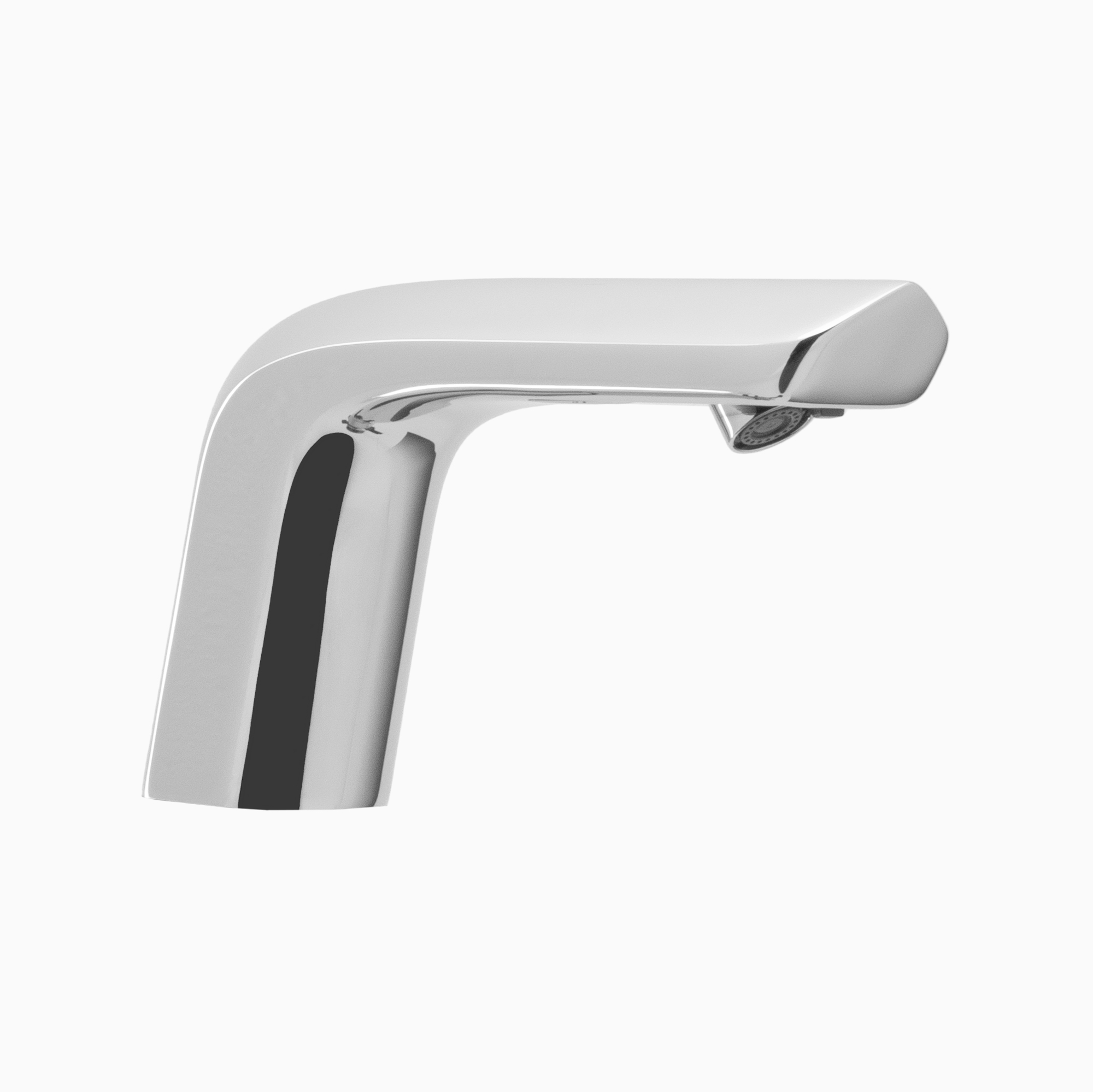

Faucet: Double Infrared Sensors with Automatic Setting

Faucet: Automatic Self-adapting Sensor Technology

Faucet: Low Battery Indicator

Faucet: Magnetic Solenoid Valve

Faucet: Water Supply Connection with Flexible High-pressure Hose and Strainer

Faucet: 6 Volt Lithium 2CR5 Commercial Battery included

Faucet: Appropriate Mounting Hardware included

Faucet: Optional 24 Hour Sentinel Activation

Faucet: 3 year limited warranty

Soap Dispenser: Touch-free operation improves hand washing hygiene

Soap Dispenser: Modular one-piece construction easily attaches to deck surface

Soap Dispenser: All electronics in spout are sealed

Soap Dispenser: Designed for drip free foam dispensing operation

Soap Dispenser: Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Soap Dispenser: Motor assembly rotates 360 degrees for easy installation

Soap Dispenser: Battery life of 45,000 activations. 1-2 years based on usage.

Soap Dispenser: Approx. 1,500 dispenses per foam soap bottle

Soap Dispenser: Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Soap Dispenser: Can be ordered as individual soap dispenser (ESD-1500)

Soap Dispenser: Hardwired or battery powered

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Integrity of the product is maintained with the vandal-resistant stop cap

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Small size and clean lines fits a large variety of applications and restroom looks

Thorough washdown flushing action

Vandal resistant stainless steel strainer included

IAPMO certified to meet or exceed ASME A112.19.2 standards

Water Sense listed by EPA that qualifies for most rebate programs

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

8 second dry time

95% cost savings vs. paper towels

Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast

Can be easily positioned to comply with ADA requirements or for juvenile height

Can install multiple units on one circuit

Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Residual moisture is evaporated with a warm stream of air up to 135°F/57°C

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum

Vandal resistant cover design

Virtually maintenance free

Weight: 15-17 lbs.

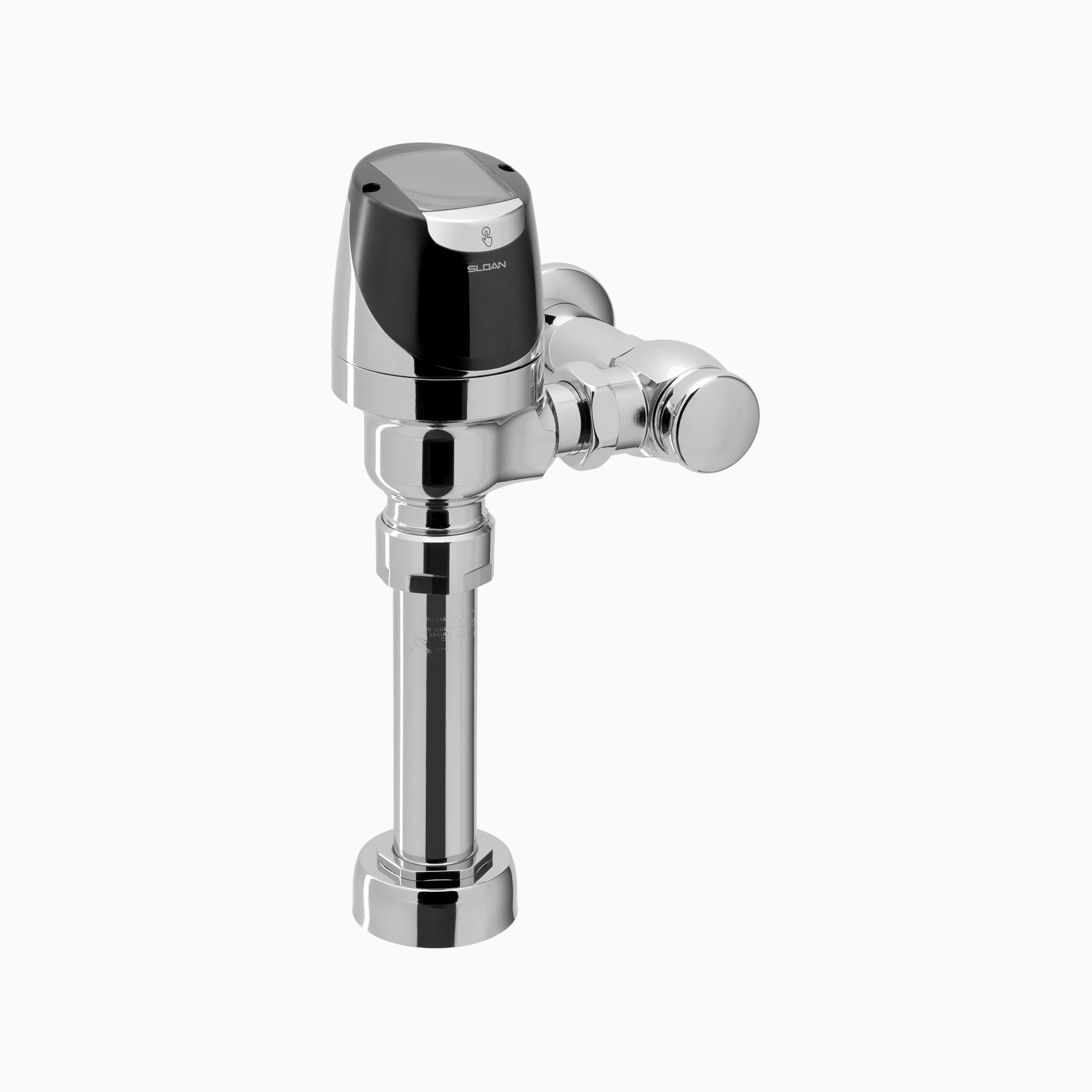

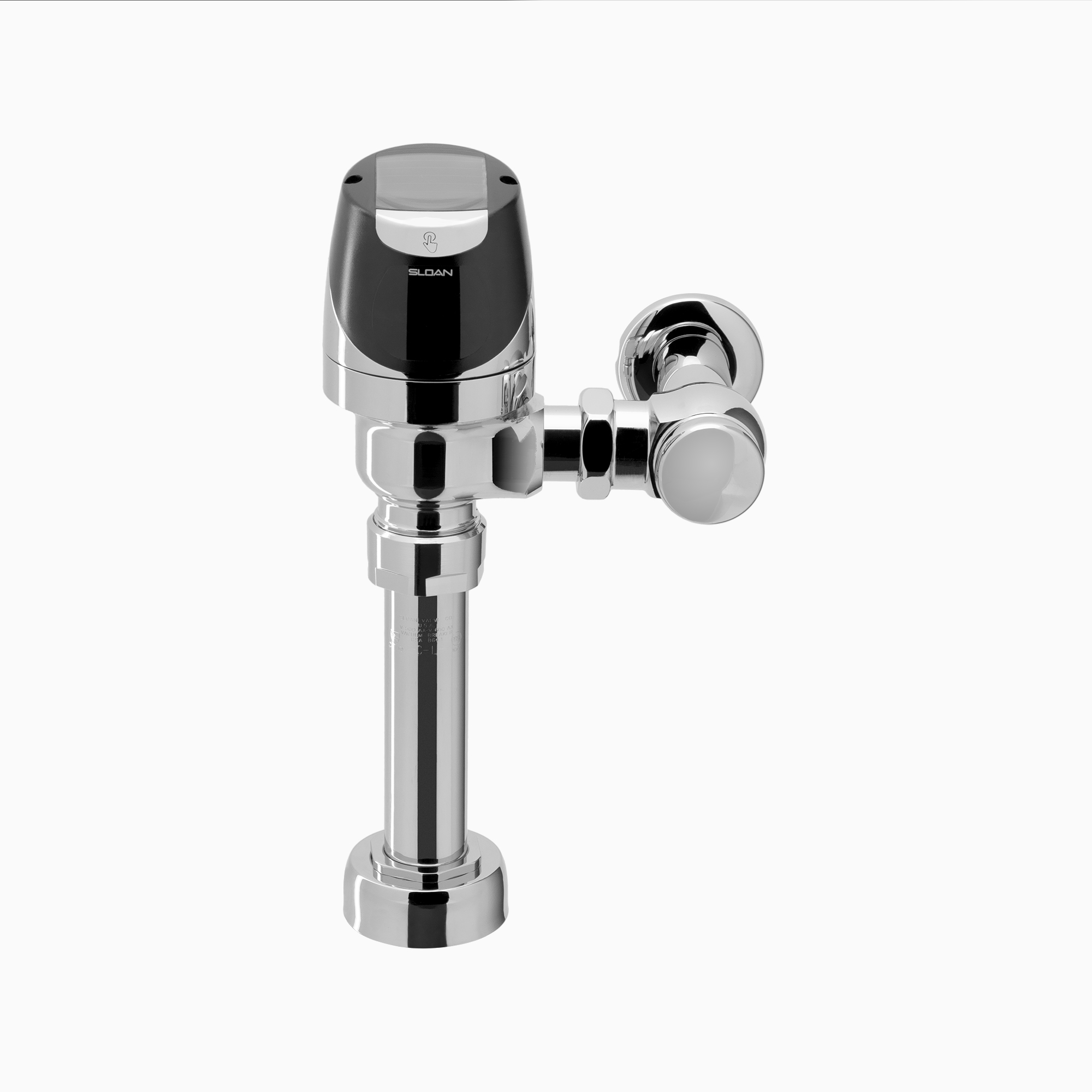

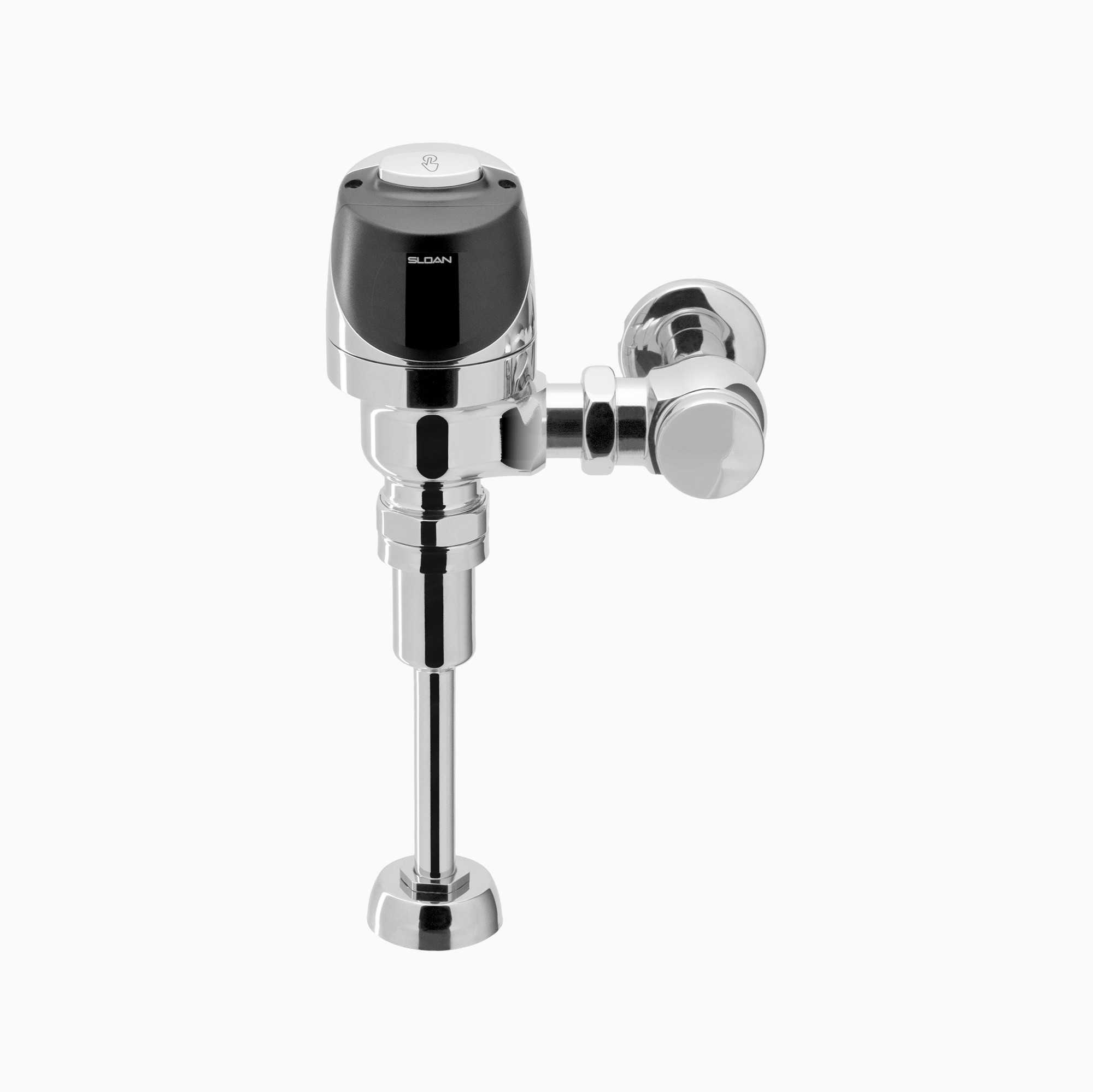

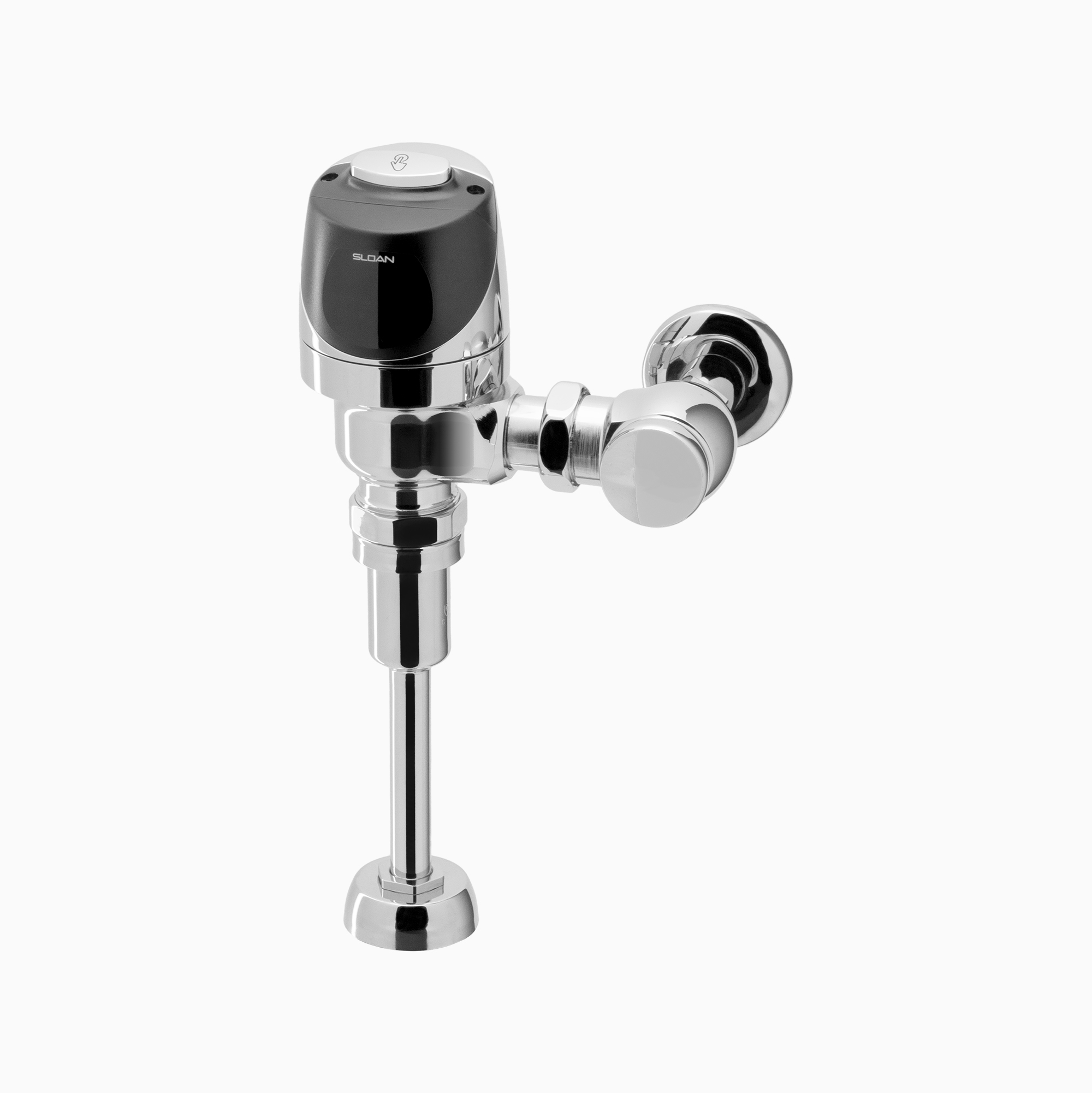

ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection

Fixed metering bypass and no external volume adjustment to ensure water conservation

Adjustable tailpiece to accommodate different height requirements

High copper, low zinc brass castings for dezincification resistance

Available in 0.5 gpf/1.9 Lpf, low consumption (1.0 gpf/3.8 Lpf), water saver (1.5 gpf/5.7 Lpf), and conventional (3.5 gpf/13.2 Lpf) models

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

One tool service

All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy

Solenoid housed in removable carrier that includes supply strainer

Integral water supply shut off

Supply strainer serviceable from above deck

Vandal resistant spray insert, key housed inside faucet body

All electronics sealed to IP-67

Gold plated electrical contacts

Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode

Flexible, high pressure supply hoses, 3/8” compression connections

Bi-stable magnetic solenoid

Four (4) “AA” alkaline batteries

Double infrared sensors with automatic setting feature

Single hole installation

Includes all mounting hardware

Line purge mode, eliminates stagnant water

Adjustable time-outs

3 year limited warranty

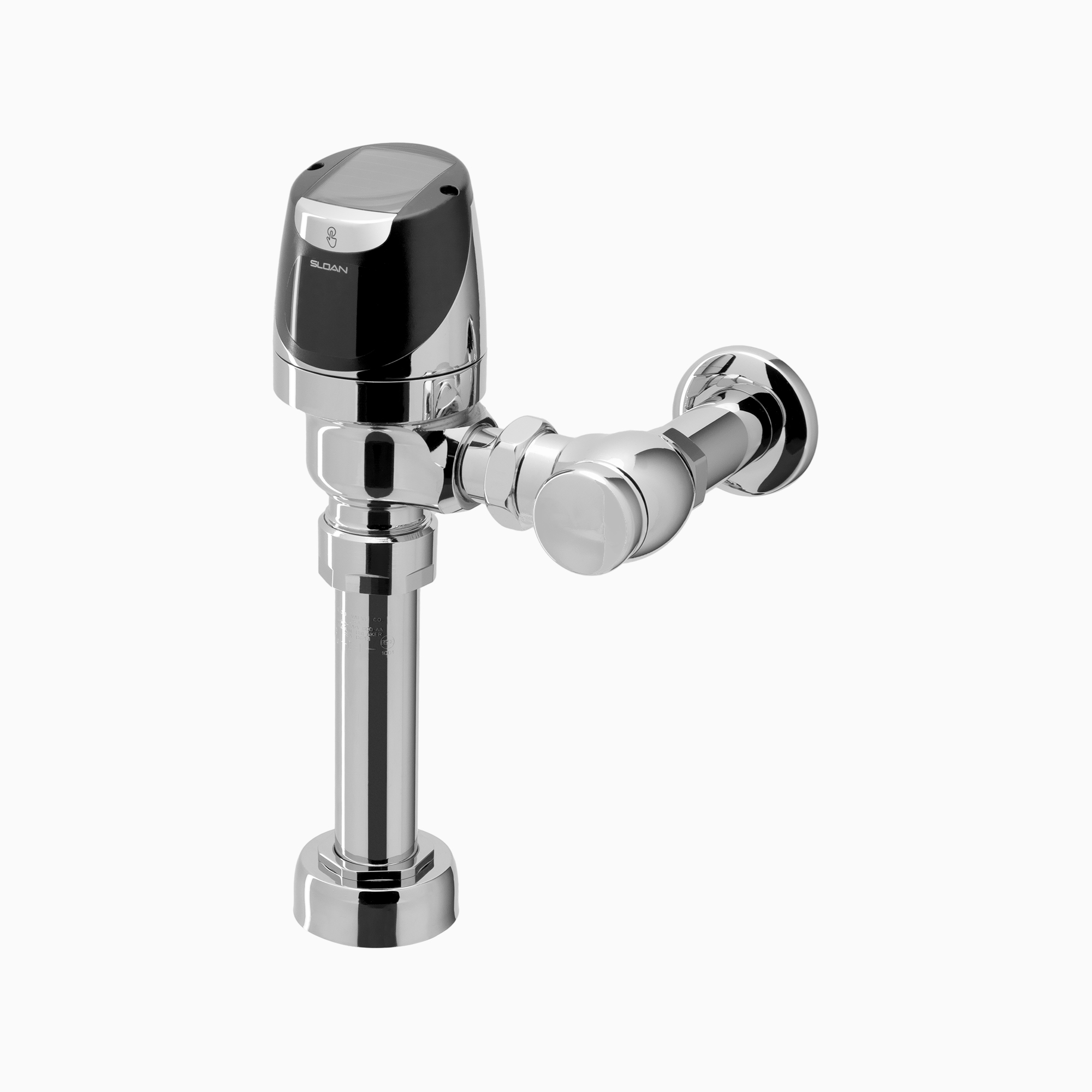

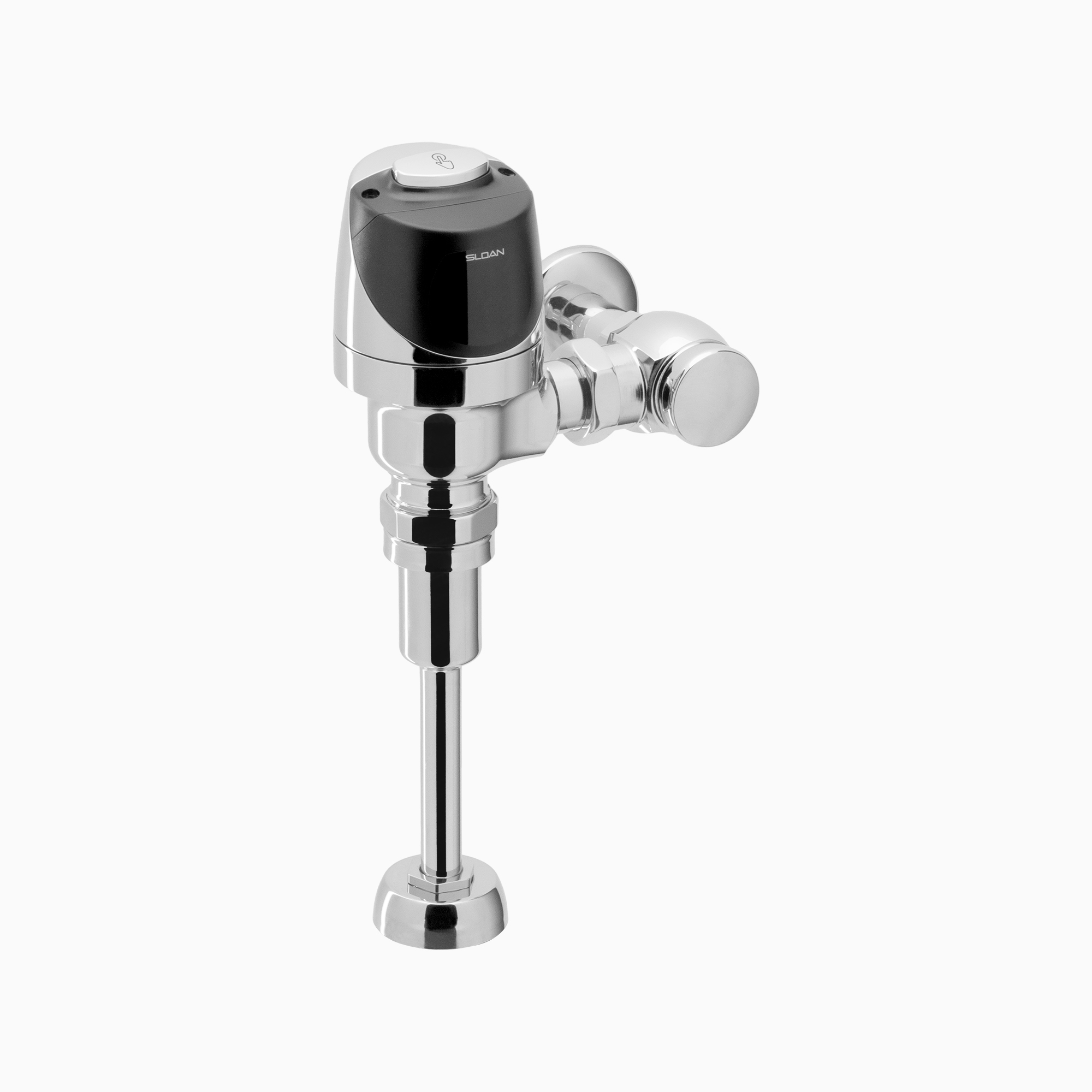

ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection

Fixed metering bypass and no external volume adjustment to ensure water conservation

Adjustable tailpiece to accommodate different height requirements

High copper, low zinc brass castings for dezincification resistance

Available in 0.5 gpf/1.9 Lpf, low consumption (1.0 gpf/3.8 Lpf), water saver (1.5 gpf/5.7 Lpf), and conventional (3.5 gpf/13.2 Lpf) models

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Small size and fully enclosed trapway provide attractive design

Thorough washdown flushing action

Vandal resistant stainless steel strainer included

IAPMO certified to meet or exceed ASME A112.19.2 standards

Water Sense listed by EPA that qualifies for most rebate programs

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

One tool service

All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy

Solenoid housed in removable carrier that includes supply strainer

Integral water supply shut off

Supply strainer serviceable from above deck

Vandal resistant spray insert, key housed inside faucet body

All electronics sealed to IP-67

Gold plated electrical contacts

Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode

Flexible, high pressure supply hoses, 3/8” compression connections

Bi-stable magnetic solenoid

Four (4) “AA” alkaline batteries

Double infrared sensors with automatic setting feature

Single hole installation

Includes all mounting hardware

Line purge mode, eliminates stagnant water

Adjustable time-outs

3 year limited warranty

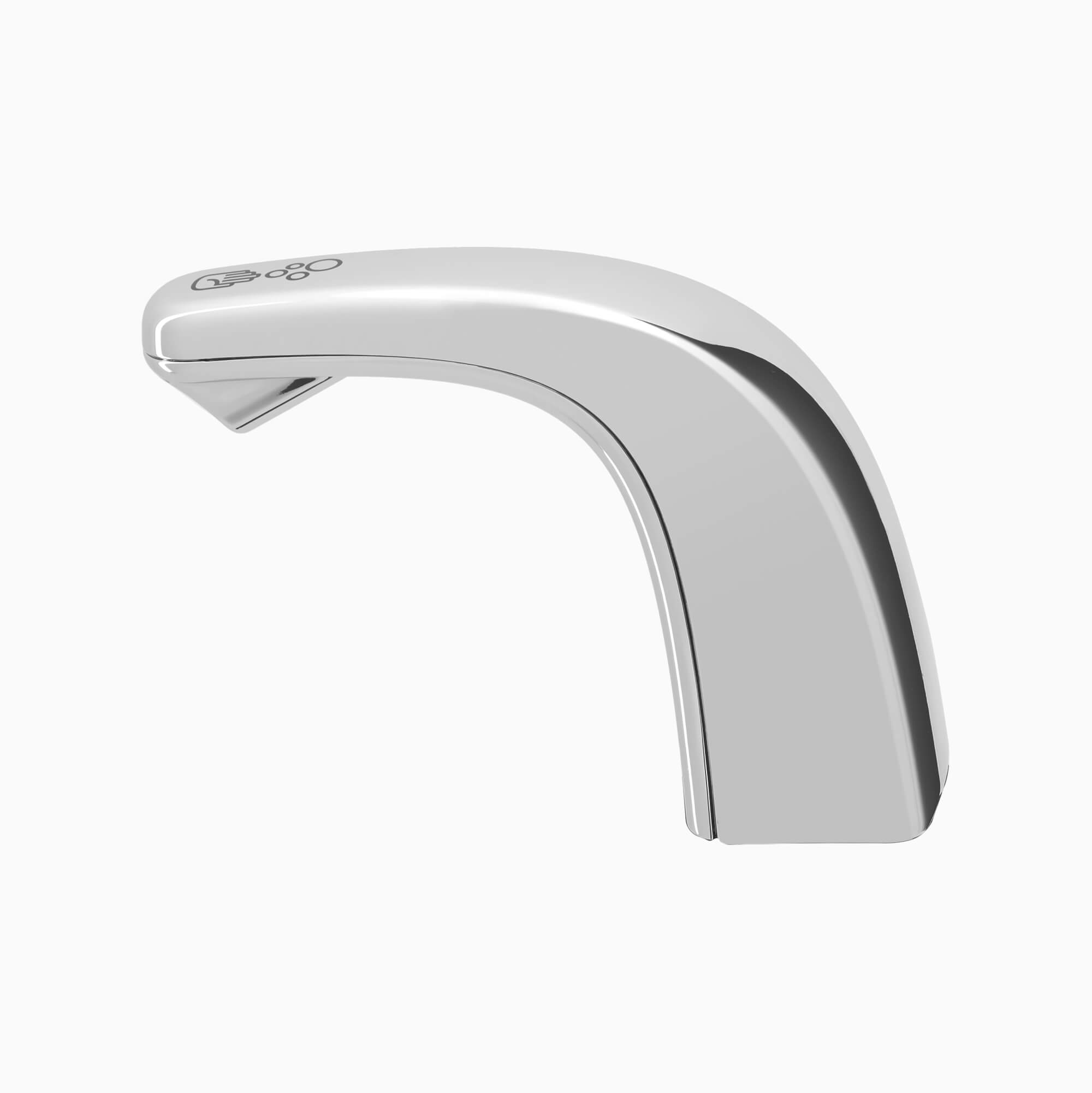

Touch-free operation improves hand washing hygiene

Modular One-piece Construction and easily attaches to sink deck surface

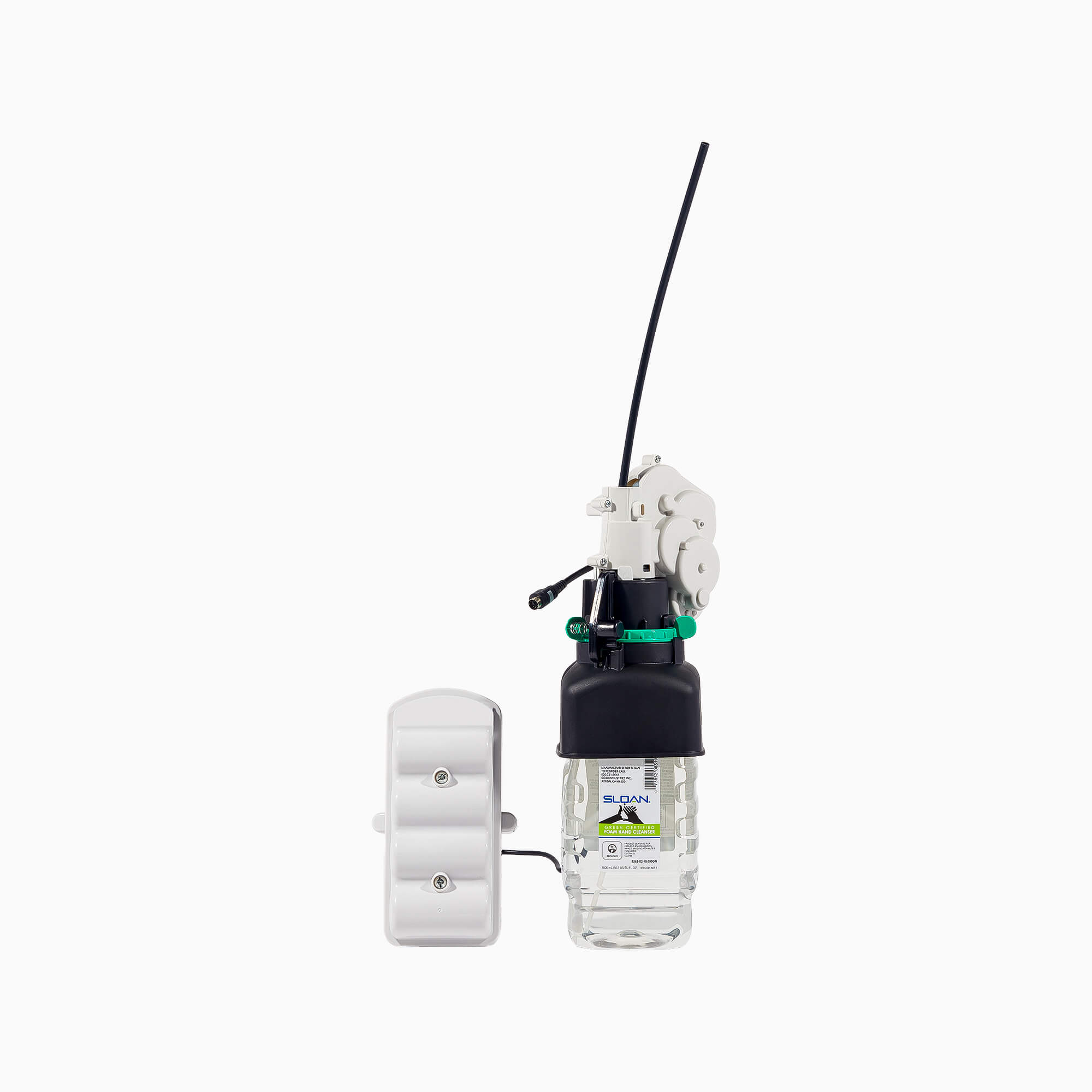

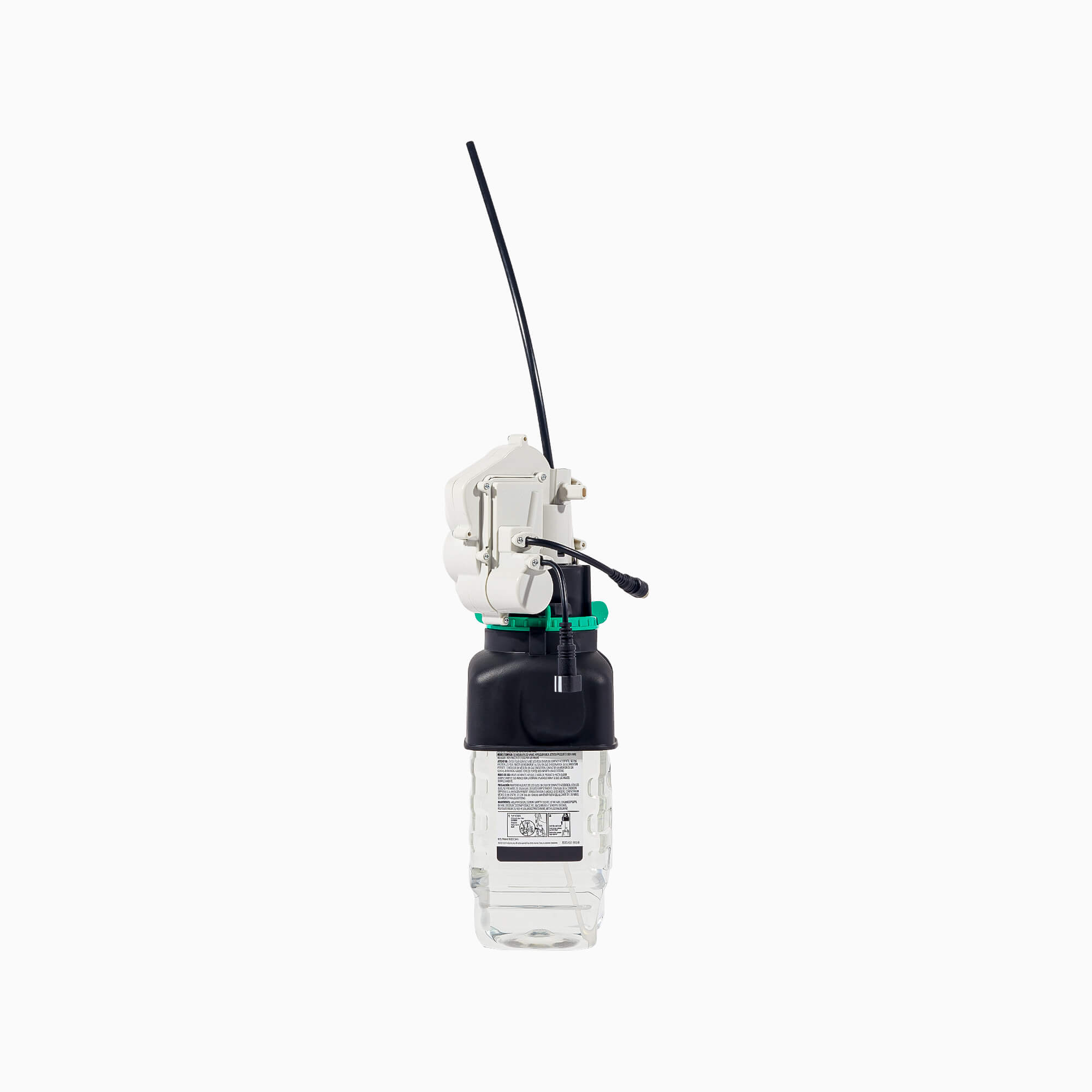

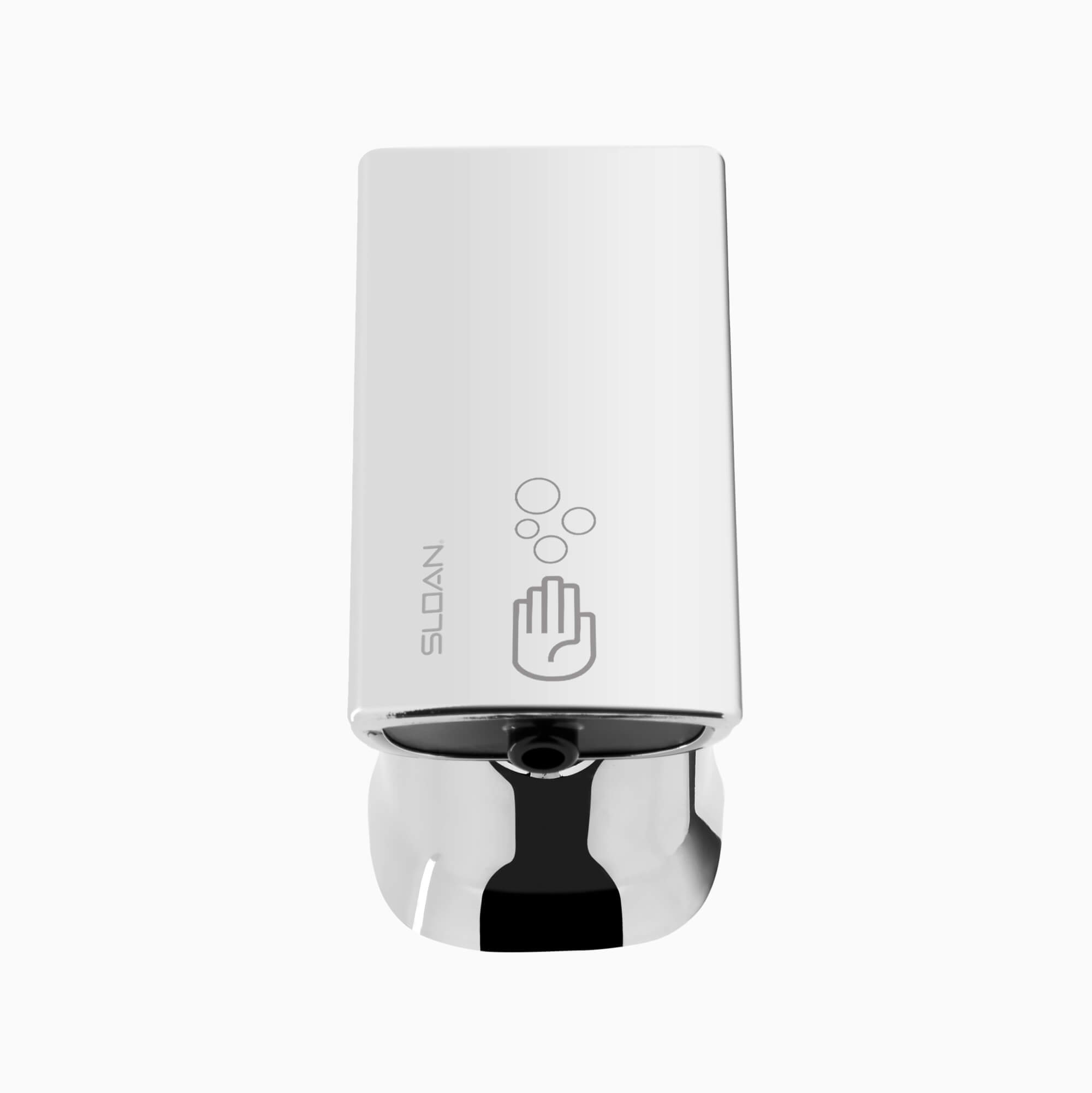

Sensor activated foam soap dispenser

Touch-free operation improves hand washing hygiene

Uses refill bottle that simplifies replacement and reduces waste

Delivers a pre-measured foam soap application "on demand"

Low Soap Level Indicator

All electronics sealed

Double infrared sensors with automatic setting feature

Soap sold separately from the ESD-400; choose either SJS-1751 (1000mL) or SJS-1751-3 (1000mL)

Fixed volume piston with filtered O-ring bypass

Front access wall plate requires no rear access plumbing chase

Sensor activated, hands-free operation

Battery operated with hardwired option

Electronic override button

Low battery indicator light

Vandal resistant wall plate

Adjustable flush connection

8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Designed to maximize and complement Sloan flushometers

Universal model works with Sloan flushometers from 1.1 to 1.6 gpf

Durable, hygienic vitreous china construction with elongated rim

Syphonjet flushing achieves 1000g Map Scores when used with Sloan flushometers

IAPMO certified to meet or exceed ASME A112.19.2 standards

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

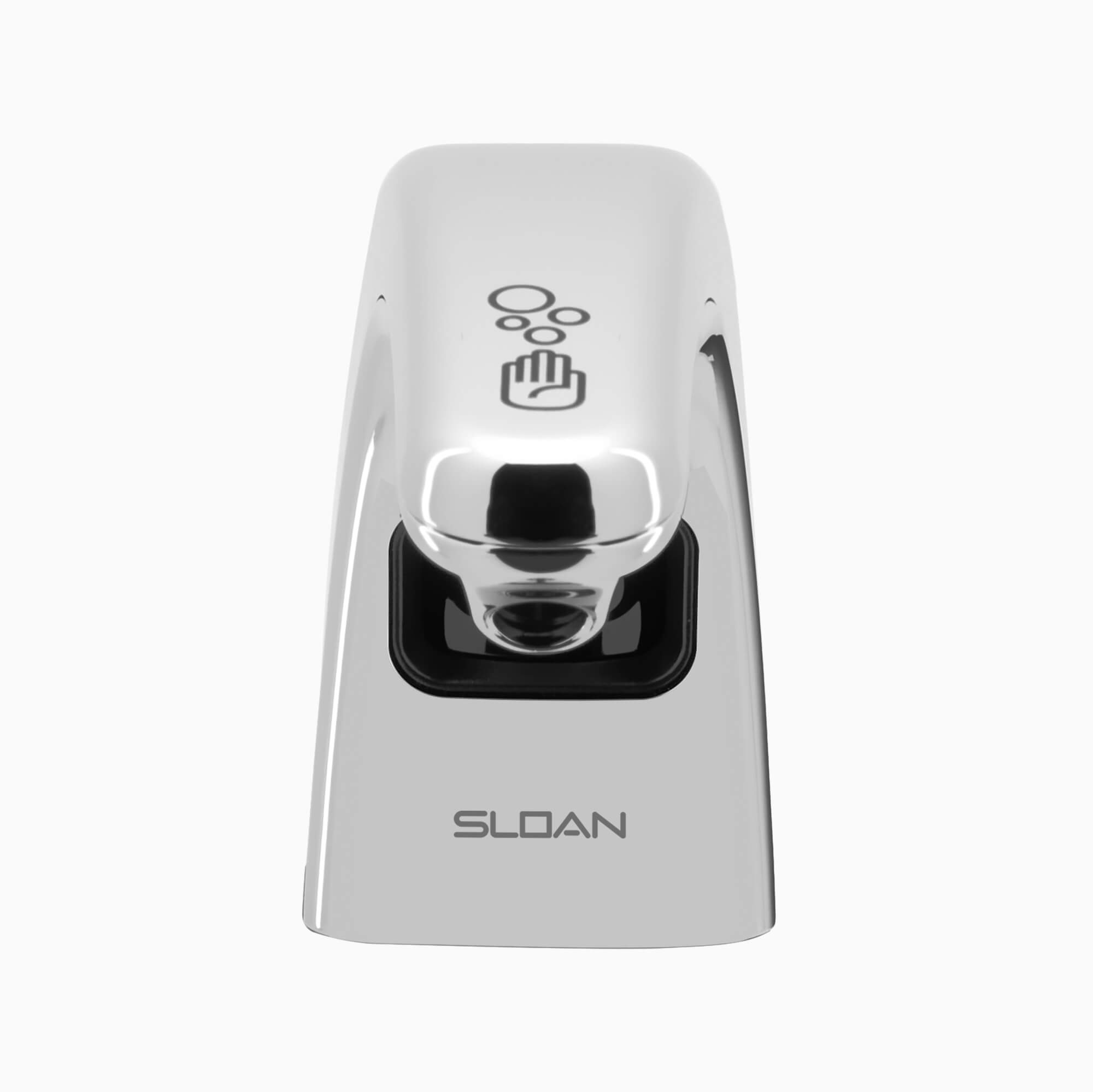

Touch-free operation improves hand washing hygiene

Modular one-piece construction easily attaches to deck surface

All electronics in spout are sealed

Designed for drip free foam dispensing operation

Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Motor assembly rotates 360 degrees for easy installation

Battery life of 45,000 activations. 1-2 years based on usage.

Approx. 1,500 dispenses per foam soap bottle

Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Ships with battery pack (4 "D" Alkaline batteries included)

ADA Compliant

Cast Brass Spout

Quick Connect Fittings

Integrated Water Shut-off

Wireless Settings Adjustment

On-demand or Metered activation

Hygienic Line Flush

Water Usage and Battery Strength Reporting

Self-adapting Sensor

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Integrity of the product is maintained with the vandal-resistant stop cap

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Universal model works with Sloan flushometers from 1.1 to 1.6 gpf

Durable, hygienic vitreous china construction with elongated rim

Syphonjet flushing achieves 1000g Map Scores when used with Sloan flushometers

IAPMO certified to meet or exceed ASME A112.19.2 standards

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Double Infrared Sensors with Automatic Setting Feature and Microprocessor

Automatic Self-adapting Sensor Technology

Low Battery Indicator

Magnetic Solenoid Valve

Water Supply Connection with Flexible High-pressure Hose and Strainer

6 volt Lithium CR-P2 Commercial Battery included

Appropriate Mounting Hardware included

3 year limited warranty

Touch-free operation improves hand washing hygiene

Modular one-piece construction easily attaches to deck surface

All electronics in spout are sealed

Designed for drip free foam dispensing operation

Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Motor assembly rotates 360 degrees for easy installation

Battery life of 45,000 activations. 1-2 years based on usage.

Approx. 1,500 dispenses per foam soap bottle

Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Ships with battery pack (4 "D" Alkaline batteries included)

ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection

Fixed metering bypass and no external volume adjustment to ensure water conservation

Adjustable tailpiece to accommodate different height requirements

High copper, low zinc brass castings for dezincification resistance

Available in 0.5 gpf/1.9 Lpf, low consumption (1.0 gpf/3.8 Lpf), water saver (1.5 gpf/5.7 Lpf), and conventional (3.5 gpf/13.2 Lpf) models

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Small size and fully enclosed trapway provide attractive design

Thorough washdown flushing action

Vandal resistant stainless steel strainer included

IAPMO certified to meet or exceed ASME A112.19.2 standards

Water Sense listed by EPA that qualifies for most rebate programs

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Hygienic hand drying solution

14 second dry time

Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz

Meets ADA requirements without the need of a recess kit

Adjustable speed and sound (High-Low)

Adjustable Heat (High-Low-Off)

95% cost savings vs. paper towels

Weight: 8-10 lbs.

Vandal resistant cover design

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum

Can install multiple units on one circuit

35-second lockout feature if hands are not removed

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

Virtually maintenance free

Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Double Infrared Sensors with Automatic Setting Feature and Microprocessor

Automatic Self-adapting Sensor Technology

Low Battery Indicator

Magnetic Solenoid Valve

Water Supply Connection with Flexible High-pressure Hose and Strainer

6 volt Lithium CR-P2 Commercial Battery included

Appropriate Mounting Hardware included

3 year limited warranty

Touch-free operation improves hand washing hygiene

Modular one-piece construction easily attaches to deck surface

All electronics in spout are sealed

Designed for drip free foam dispensing operation

Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Motor assembly rotates 360 degrees for easy installation

Battery life of 45,000 activations. 1-2 years based on usage.

Approx. 1,500 dispenses per foam soap bottle

Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Ships with battery pack (4 "D" Alkaline batteries included)

Fixed volume piston with filtered O-ring bypass

Front access wall plate requires no rear access plumbing chase

Sensor activated, hands-free operation

Battery operated with hardwired option

Electronic override button

low Battery indicator light

vandal resistant wall plate

Adjustable flush connection

White Vitreous China

Washdown flushing action

Integral flushing rim

¾" I.P.S. rear spud inlet

2" NPT outlet flange

Fully concealed trapway

Vandal resistant strainer assembly included

All mounting hardware included

100% factory flush tested

Hygienic hand drying solution

14 second dry time

Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz

Meets ADA requirements without the need of a recess kit

Adjustable speed and sound (High-Low)

Adjustable Heat (High-Low-Off)

95% cost savings vs. paper towels

Weight: 8-10 lbs.

Vandal resistant cover design

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum

Can install multiple units on one circuit

35-second lockout feature if hands are not removed

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

Virtually maintenance free

Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Faucet: Commercial Grade and ADA Compliant

Faucet: Cast Brass Spout

Faucet: Quick Connect Fittings

Faucet: Integral water supply shut off

Faucet: Wireless Settings Adjustment

Faucet: On-demand or Metered activation

Faucet: Hygienic Line Flush

Faucet: Water Usage and Battery Strength Reporting

Faucet: Self-adapting Sensor

Soap Dispenser: Touch-free operation improves hand washing hygiene

Soap Dispenser: Modular one-piece construction easily attaches to deck surface

Soap Dispenser: All electronics in spout are sealed

Soap Dispenser: Designed for drip free foam dispensing operation

Soap Dispenser: Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Soap Dispenser: Motor assembly rotates 360 degrees for easy installation

Soap Dispenser: Battery life of 45,000 activations. 1-2 years based on usage.

Soap Dispenser: Approx. 1,500 dispenses per foam soap bottle

Soap Dispenser: Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Soap Dispenser: Can be ordered as individual soap dispenser (ESD-800)

Soap Dispenser: Hardwired or battery powered

8 second dry time

95% cost savings vs. paper towels

Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast

Can be easily positioned to comply with ADA requirements or for juvenile height

Can install multiple units on one circuit

Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Residual moisture is evaporated with a warm stream of air up to 135°F/57°C

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum

Vandal resistant cover design

Virtually maintenance free

Weight: 15-17 lbs.

Faucet: One tool service

Faucet: All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy

Faucet: Solenoid housed in removable carrier that includes supply strainer

Faucet: Integral water supply shut off

Faucet: Supply strainer serviceable from above deck

Faucet: Vandal resistant spray insert, key housed inside faucet body

Faucet: All electronics sealed to IP-67

Faucet: Gold plated electrical contacts

Faucet: Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode

Faucet: Flexible, high pressure supply hoses, 3/8” compression connections

Soap Dispenser: Touch-free operation improves hand washing hygiene

Soap Dispenser: Modular one-piece construction easily attaches to deck surface

Soap Dispenser: All electronics in spout are sealed

Soap Dispenser: Designed for drip free foam dispensing operation

Soap Dispenser: Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Soap Dispenser: Motor assembly rotates 360 degrees for easy installation

Soap Dispenser: Battery life of 45,000 activations. 1-2 years based on usage.

Soap Dispenser: Approx. 1,500 dispenses per foam soap bottle

Soap Dispenser: Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Soap Dispenser: Can be ordered as individual soap dispenser (ESD-500)

Commercial Grade Faucet

ADA Compliant

Cast Brass Spout

Quick Connect Fittings

Integrated Water Shut-off

Wireless Settings Adjustment

On-demand or Metered activation

Hygienic Line Flush

Water Usage and Battery Strength Reporting

Self-adapting Sensor

Touch-free operation improves hand washing hygiene

Modular one-piece construction easily attaches to deck surface

All electronics in spout are sealed

Designed for drip free foam dispensing operation

Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout

Motor assembly rotates 360 degrees for easy installation

Battery life of 45,000 activations. 1-2 years based on usage.

Approx. 1,500 dispenses per foam soap bottle

Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)

Ships with battery pack (4 "D" Alkaline batteries included)

Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance

User friendly three (3) second Flush Delay

“Low Battery” Flashing LED

Sweat solder adapter with cover tube and cast wall flange with set screw

State-of-the-art photovoltaic technology delivers solar operation

Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).

Four (4) Size AA Battery Back-up Power Source

Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection

Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation

Flex Tube Diaphragm designed for improved life and reduced maintenance

Engineered Metal Cover with replaceable Lens Window

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Courtesy Flush® Override Button

Override button enables manual flushing if sensor’s power source fails

High copper, low zinc brass castings for dezincification resistance

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers

Thorough washdown flushing action

Durable, hygienic vitreous china construction

Vandal resistant stainless steel strainer included

IAPMO certified to meet or exceed ASME A112.19.2 standards

Water Sense listed by EPA that qualifies for most rebate programs

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

8 second dry time

95% cost savings vs. paper towels

Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast

Can be easily positioned to comply with ADA requirements or for juvenile height

Can install multiple units on one circuit

Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Residual moisture is evaporated with a warm stream of air up to 135°F/57°C

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum

Vandal resistant cover design

Virtually maintenance free

Weight: 15-17 lbs.
