Sloan XLERATOR®

Replacement Filter for Hand Dryers with HEPA filters

HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air

Depth 3.125 in x Height 2.125 in x Width 7.75 in

HEPA Filter for Sloan XLERATOR units purchased without HEPA Filter option

HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air

Depth 6 in x Height 3 in x Width 9.5 in

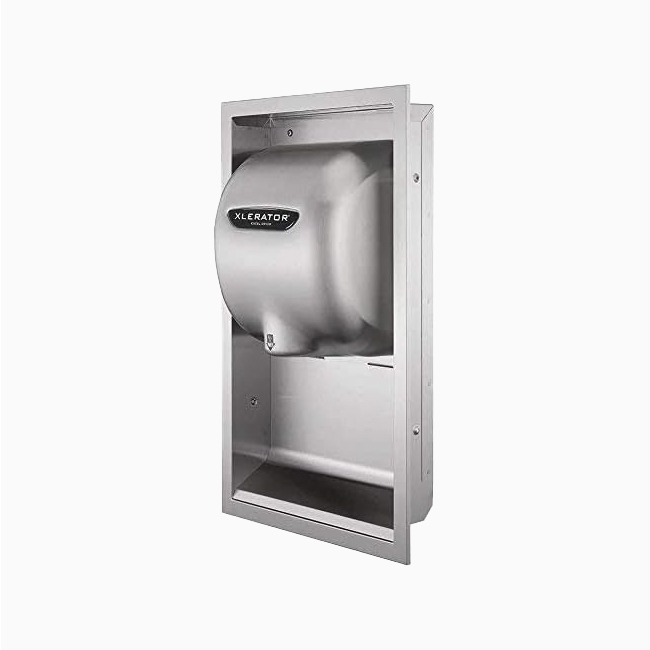

Recess kit for Sloan Xlerator and Sloan Xlerator® dryers to meet ADA protrusion requirement of 4"

Brushed Stainless finish

16 3/8" Wide x 26" High x 3 3/8" Deep

Allows complete retrofit of paper towel dispenser and waste receptacle with Sloan XLERATOR or Sloan XLERATOReco hand dryer

Meets ADA requirements for height and protrusion

No damage to existing wall surface

Brushed Stainless finish

Wall box is fabricated of 22 GA 18-8 type 304 stainless steel with #4 satin finish with 16 GA 18-8 type 304 stainless steel dryer mounting plate. All welded construction.

16 3/8” wide x 26” high x 3 3/8” deep (416 mm wide x 660 mm high x 86 mm deep)

Replacement Pre-Filter for Hand Dryers with HEPA filters

HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air

Depth 3.25 in x Height 0.75 in x Width 7.75 in

35-second lockout feature if hands are not removed, 10 second dry time

95% cost savings vs. paper towels, Adjustable speed and sound (High-Low)

Electric Specifications: 110-120V – 4.3-4.5 Amps, 460-530 Watts, 50/60 Hz, Can install multiple units on one circuit

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

Hygienic hand drying solution, No Heat option

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum

Vandal resistant cover design, Virtually maintenance free

Weight: 15-17 lbs.

8 second dry time, Weight: 15-17 lbs.

95% cost savings vs. paper towels

Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast

Can be easily positioned to comply with ADA requirements or for juvenile height

Vandal resistant cover design, Virtually maintenance free

Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz, can install multiple units on one circuit

Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged

One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments

Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
