BAA Compliant

Designed to maximize and complement Sloan flushometers

Durable, hygienic vitreous china construction with elongated rim

IAPMO certified to meet or exceed ASME A112.19.2 standards

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Commercial Style Shower Head

Fingertip control on the AC-11 model allows users to adjust water flow to meet individual comfort needs

Spring-loaded, self-cleaning spray disk prevents particle clogging and reduces maintenance

"Cone within a cone" spray pattern for total body coverage

All brass construction

Various decorative finishes available

Saves up to 20% or more water depending on length of shower

Universal Ball Joint with Thumb Screw Volume Control

1⁄2” I.P.S. Inlet

Fast drain feature to prevent residual slow dripping

Shower Head shall be in conformance to all requirements of ANSI/ASME Standard A112.18.1M, CSA B-125 and the United States Federal Energy Policy Act.

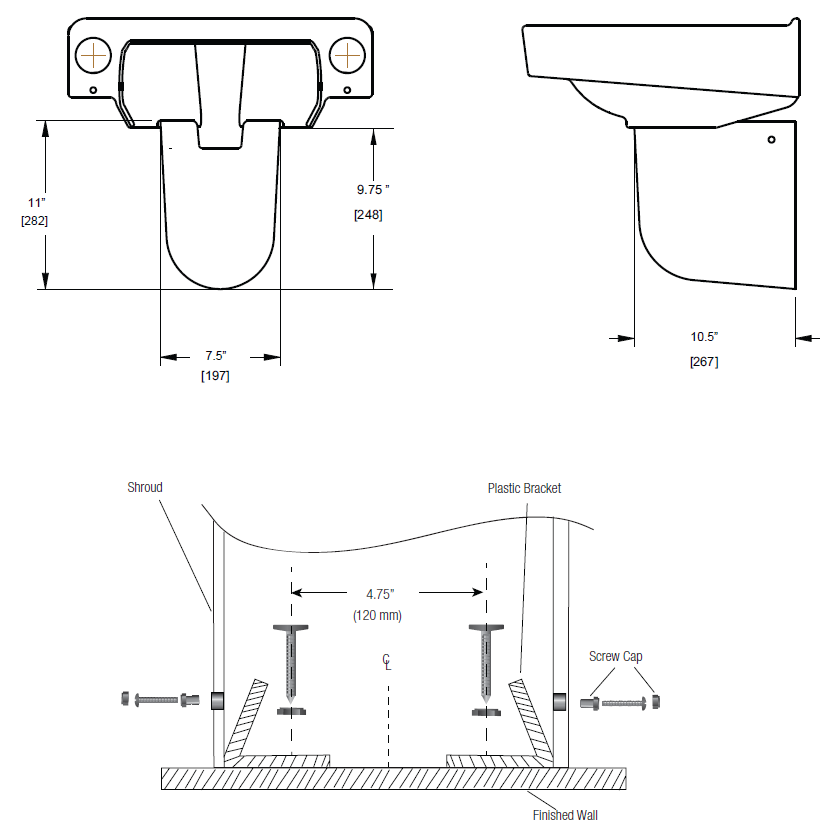

White Vitreous China

7.75" x 10.5" x 9.75" (197 mm x 267 mm x 248 mm)

Mounting hardware included

Must be specified separately

Only compatible with wall hung SS-3X06 and SS-3X65 series lavatories

High Impact, Stain resistant, Molded Ridged Vinyl Material

.125 (3.2 mm) Nominal Wall Thickness

69 - Shore A Durometer

UL-94 V-O Flammability Rating

Color White - Paintable with acrylic enamel

ADA conforming design protects wheelchair users from scalding and sharp surfaces. There are no exposed lavatory plumbing, electrical and mechanical components.

One-Size-Fits-All configuration is easy to stock and install. May be used in virtually any new construction or retrofit 20 x 18 inches ADA conforming wall hung lavatory application. No assembly required; installation takes minutes using the fasteners supplied.

Total Enclosure design protects lavatory components from tampering. All piping, electronic faucet connections and mixing valves are completely concealed within this heavy-duty enclosure.

Flush volumes start as low as 0.5 gpf/1.9 Lpf

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers

Thorough washdown flushing action

Durable, hygienic vitreous china construction

Vandal resistant stainless steel strainer included

IAPMO certified to meet or exceed ASME A112.19.2 standards

Water Sense listed by EPA that qualifies for most rebate programs

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Universal model works with Sloan flushometers from 1.1 to 1.6 gpf

Durable, hygienic vitreous china construction with elongated rim

Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers

IAPMO certified to meet or exceed ASME A112.19.2 standards

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Universal model works with Sloan flushometers from 1.1 to 1.6 gpf

Durable, hygienic vitreous china construction with elongated rim

Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers

IAPMO certified to meet or exceed ASME A112.19.2 standards

WaterSense compliant when used with a WaterSense compliant flushometer

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Designed to maximize and complement Sloan flushometers

Universal model works with Sloan flushometers from 1.1 to 1.6 gpf

Durable, hygienic vitreous china construction with elongated rim

Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers

IAPMO certified to meet or exceed ASME A112.19.2 standards

Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Replacement Filter for Hand Dryers with HEPA filters

HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air

Depth 3.125 in x Height 2.125 in x Width 7.75 in
