By Soni , 21 October 2025

DropSpot™ Bottle Fillers and Water Coolers

Url Slug
dropspot-bottle-fillers
General Content
General Conten
Title
DropSpot™ Bottle Fillers and Water Coolers
Subtitle
Refill on style, safety, and sustainable hydration.
Buttons
Text Button
View brochure
Is External
0
Title
DropSpot™ Bottle Fillers and Water Coolers
Poster Video
Woman refilling a reusable bottle at a Sloan stainless steel water dispenser in a modern hallway.
Vimeo Link
https://player.vimeo.com/progressive_redirect/playback/1020684480/rendition/108…
Image TCSC
Two students filling a pink bottle at a Sloan water bottle filler in a school hallway with blue lockers.
Title
Sloan’s patent-pending DropSpot Bottle Fillers and Coolers embrace style and thoughtful design and promote sustainable drinking practices with every sip.
Reverse
1
Tab
Title
DRS100
Content
Title
DRS100 DropSpot On-wall Bottle Filler
Subtitle
Fresh water in an instant The DRS100 pairs sleek styling with cutting-edge sensor technology to elevate your space with a fast way to hydrate. The slim profile and small footprint create a seamless water filling experience for interior spaces.
Pre Title
DRS100
Image TCSC
Black Sloan wall-mounted water dispenser integrated into a modern wood-paneled wall.
Title
Touch-free with rapid refill
Descripcion

Sloan’s advanced sensor and dispensing technology ensures hygienic, hands-free operation with rapid refills. When the sensor is activated, the backlit LED illuminates the bottle filling area. The laminar-style water stream reduces water splash and rapidly fills bottles up to 1.2 gallons per minute (gpm). There is a 20 second max run time to conserve water.

DRS100 DropSpot refrigerated unit shown in Black Powder Coat finish.

Reverse
0
Image TCSC
Woman refilling a black reusable bottle at a Sloan wall-mounted water dispenser with a wood-textured background.
Title
Cool hydration
Descripcion

Add the remote chiller to the DRS100 for lasting cool hydration. This advanced refrigeration system delivers an impressive chilling capacity of 8.0 gallons per hour (gph), keeping every sip refreshingly cool at 50°F. Remote chillers are available as part of the DRS100 refrigerated unit or separately as an accessory for the DRS100 unrefrigerated unit.

The DRS100 DropSpot Bottle Fillers enhance workplace hygiene and sustainable drinking practices, shown in Black Powder Coat finish.

Reverse
1
Title
DRS110
Content
Title
DRS110 DropSpot On-wall Bottle Filler with Single-level Cooler
Subtitle
The DRS110 offers all the benefits of the DRS100 Bottle Filler and includes an easy-to-clean, hygienic water cooler.
Pre Title
DRS110
Image TCSC
Stainless steel Sloan wall-mounted water dispenser with integrated drinking fountain installed on a brick wall.
Title
Healthier, cleaner components
Descripcion

The bubbler and push bar are made of antimicrobial materials that reduce the risk of germ transmission and features a design that makes sanitization and cleaning simple. All DropSpot bottle fillers and coolers are certified to comply with NSF61 standards for safer drinking water consumption.

Featured in a Stainless Steel finish, the DRS110 DropSpot Bottle Filler with Single-level Cooler is ideal for higher education settings.

Reverse
0
Title
DRS120
Content
Title
DRS120 DropSpot On-wall Bottle Filler with Bi-level Cooler
Subtitle
The DRS120 versatile design offers a quick, accessible solution for the demands of high-traffic environments. Its ability to accommodate simultaneous refills enables quick hydration on the go.
Pre Title
DRS120
Image TCSC
Stainless steel Sloan wall-mounted water dispenser and drinking fountain in a public space, with a person walking by pulling luggage.
Title
Flexible mounting for seamless integration
Descripcion

The versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation. This flexible design ensures a perfect fit in most spaces, enhancing its usability and integration.

Featured in a Stainless Steel finish, the DRS120 DropSpot Bottle Fillers with Bi-level Cooler makes water access convenient for high-traffic areas like convention centers, stadiums, and airports.

Reverse
0
Image TCSC
Stainless steel Sloan wall-mounted bottle filler and dual drinking fountains installed in a public corridor.
Title
Inclusive design for all
Descripcion

Sloan DropSpot bottle fillers with coolers are built for everyone and, when installed properly, meet ADA requirements. This ensures an accessible and welcoming experience for all users.

The DRS120 DropSpot Bi-level Bottle Filler shown with high-left cooler mounting configuration in Stainless Steel finish.

Reverse
1
Items FC
Title
Durable and attractive materials
Descripcion

DropSpot Bottle Fillers are crafted from durable, premium materials. Choose everlasting stainless steel or go for a modern aesthetic with the black powder-coated galvanized steel.

Image FCI
Close-up of the Sloan logo on a black water dispenser.
Title
Pleasant bottle filling experience
Descripcion

Sloan’s proven sensor and water dispensing technologies combine for a pleasant, hands-free bottle filling experience enhanced by two backlit LED lights that illuminate the bottle filling area while in use.

Image FCI
Hand refilling a reusable bottle at a stainless steel Sloan water dispenser.
Title
High capacity/performance filter
Descripcion

Sloan’s 3000-gallon filter reduces Total PFAS “forever chemicals,” linked to adverse health outcomes, as well as lead, microplastics, cysts, Class 1 Particulates, chlorine, and other contaminants. It complies with NSF-42, 53 and 401 standards.

Image FCI
Row of Sloan replacement water filters in white packaging with blue drop icons.
Title
Swing-open filter access
Descripcion

The DRS100 features a swing-open cabinet that provides easy access to the filter and internal components.

Image FCI
Technician inspecting the internal filter system of a Sloan water dispenser.
Title
Drop-down filter access
Descripcion

The convenient drop-down door assembly provides easy access to the filter on filtered DRS110 and DRS120 models.

Image FCI
Close-up of hands replacing a Sloan water filter cartridge inside a dispenser.
Title
Push bar technology
Descripcion

The patent-pending push bar is designed to be activated at any touch point. This feature enhances usability for all. Available on DRS110 and DRS120.

Image FCI
Close-up of the Sloan access panel on a stainless steel water dispenser.
Title
Ready to retrofit
Descripcion

DropSpot Bottle Fillers match most manufacturers’ rough-ins, simplifying installation and making upgrading easier.

Image FCI
Technician using a screwdriver to install a Sloan water bottle filler on the wall.
Title
Filter alerts
Descripcion

The filter status indicator light is unobtrusive and remains off until filter replacement is needed.

Image FCI
Digital display on a Sloan water dispenser showing “12700 bottles saved.”
Title
Utility is key
Descripcion

A proprietary key opens the push bar and provides quick access to service parts for ease of maintenance. Available for DRS110 and DRS120.

Image FCI
Hands using a Sloan tool to remove the front access panel of a water bottle filler.
Header Basic P
Title
Packed with features
Descripcion

Sloan DropSpot Bottle Fillers are designed with advanced features that enhance accessibility, convenience, and performance, ensuring a seamless hydration experience in any environment.

Image TCSC
Smiling young man holding a reusable water bottle outdoors near a basketball court.
Title
Protecting water. Protecting health
Descripcion

Enjoy the confidence and comfort that comes with Sloan’s state-of-the-art water filtration technology. Water filters help deliver safer drinking water by reducing harmful contaminants and impurities. This means every sip is refreshing and supports your well-being.

Reverse
0
Image TCSC
Close-up of a Sloan water bottle filler digital display showing “16 oz. dispensed” on a stainless steel surface.
Title
Promote sustainability and wellness one refill at a time
Descripcion

Installing bottle fillers are a practical way to promote sustainability, reduce waste, and preserve our planet for future generations. All Sloan DropSpot Bottle Fillers provide a convenient and accessible way to refill reusable bottles with fresh water. By encouraging the use of reusable bottles, bottle fillers help minimize plastic waste, a significant environmental concern contributing to pollution and habitat destruction. It also conserves valuable natural resources, such as oil and water used in the production and transportation of plastic bottles.

Reverse
1
By Soni , 21 October 2025

Sloan® Wall-mounted Hand Dryers

Url Slug
sloan-wall-mounted-hand-dryers
General Content
General Conten
Title
Sloan® Wall-mounted Hand Dryers
Subtitle
Completely redesigned to be faster, quieter, and more energy efficient.
Buttons
Text Button
Browse all Wall-mounted Hand Dryers
Link
/en/products/hand-dryer?product_level=general&hadryer_mounting=Wall-Mounted
Is External
0
Text Button
View brochure
Is External
0
Pre Title
Hand Dryers
Image TCSC
Modern sink with matte black Sloan faucets installed on a light stone countertop.
Title
The perfect fit for any commercial project
Descripcion

Sloan wall-mounted hand dryers aren’t just quieter, but are more energy-efficient with Environmental Product Declaration (EPD) reports that showcase their environmental impact. These hand dryers are in a variety of finishes to match any commercial project aesthetic and they pair well with other Sloan products for a complete restroom solution.

Features and benefits

  • 95% cost savings versus paper towels
  • Fast dry time
  • Noise level options
  • Hygienic
  • Cost savings
  • Better for the environment than paper towels
Reverse
0
Image TCSC
hand dryer with a minimalist, modern design.
Title
Sloan Optima Air™
Descripcion

The Optima Air high-speed, energy-efficient hand dryer model is surface mounted. It dries hands in 14 seconds using 950 watts or less, with a slimmer profile to meet ADA compliance standards. Available in Polished White and Brushed Nickel.

Features and benefits

  • 14-second dry time
  • 950 watts (heat on) – 300 watts (heat off)
  • Helps qualify for several LEED v4 credits
  • 3-year limited warranty
  • 95% cost savings versus paper towels
Reverse
1
Image TCSC
Stainless steel Sloan Optima Air hand dryer with a sleek, brushed finish.
Title
Sloan XLERATOR®
Descripcion

The Sloan XLERATOR is the original, patented, high-speed, energy-efficient hand dryer. Facilities around the world use Sloan XLERATOR to save time, money and the environment while creating a cleaner, more hygienic restroom. Available in Polished Chrome, Brushed Nickel, Matte White, Polished White, and Graphite.

Features and benefits:

  • 8-second dry time
  • Optional HEPA filtration improves hygiene quality
  • 95% cost savings versus paper towels
  • ADA-compliant: available with recess kit
  • 3-year limited warranty
Reverse
0
Image TCSC
Matte gray Sloan Xcelerator hand dryer with “Feel the Power” label.
Title
Sloan XLERATOReco®
Descripcion

Sloan XLERATOReco® dries hands fast with no heat while using only 500 watts of energy, making it the most energy-efficient and environmentally-friendly wall-mounted hand dryer on the planet. Available in Polished Chrome, Brushed Nickel, Matte White, Polished White, and Graphite.

Features and benefits

  • 10-second dry time
  • 500 watts – no heat technology
  • Can install multiple units on one circuit
  • Building Green approved
  • 3-year limited warranty
  • 95% cost savings versus paper towels
Reverse
1
Item Parts preview
Parent Product

EHD-501-ECO

By admin , 9 October 2025
Hand Dryer Power Type
Hardwired
Product Code
EHD-501-ECO
Product Type
Parent
Date Updated
1777939200
Product Category
Hand Dryer
Url Slug
ehd-501-eco
Compliances and Certifications
BAA Compliant
Proposition 65
UL Certified
WELL Building Standard
Primary Description
Sloan XLERATOR® Hand Dryer
Series Description
Sloan XLERATOR® Sensor-Operated Wall-Mounted Hand Dryer
Imagenes Adicionales
EHD-501-ECO - Imagen adicional 1
EHD-501-ECO - Imagen adicional 2
Measure Depth
6.69in
Measure Depth (mm)
170.00mm
Measure Width
11.75in
Measure Width (mm)
298.00mm
Measure Height
12.69in
Measure Height (mm)
322.00mm
Product Line
Sloan XLERATOR®
Hand Dryer Activation
Sensor
Hand Dryer Mounting
Wall-Mounted
Hand Dryer Product Line
Sloan XLERATOR®
Brochures
Sloan Hand Dryers Brochure
Installation Instruction
Sloan XLERATOR and Sloan XLERATOR Eco Hand Dryer Instructions
Transparency Reports
XLERATOR Eco Hand Dryers EPD
BIM Model
EHD-501_501-ECO_502_502 ECO BIM
CAD Drawing
CCF002.12_SURFACE_MOUNT_BW_XLERATOR
Features List
35-second lockout feature if hands are not removed, 10 second dry time
95% cost savings vs. paper towels, Adjustable speed and sound (High-Low)
Electric Specifications: 110-120V – 4.3-4.5 Amps, 460-530 Watts, 50/60 Hz, Can install multiple units on one circuit
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
Hygienic hand drying solution, No Heat option
Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Vandal resistant cover design, Virtually maintenance free
Weight: 15-17 lbs.

EHD-701

By admin , 9 October 2025
Hand Dryer Power Type
Hardwired
Product Code
EHD-701
Product Type
Parent
Date Updated
1777939200
Product Category
Hand Dryer
Url Slug
ehd-701
Compliances and Certifications
BAA Compliant
Proposition 65
UL Certified
WELL Building Standard
Primary Description
Sloan Optima Air® Hand Dryer
Series Description
Sloan Optima Air® Sensor-Operated Wall-Mounted - ADA Hand Dryer
Imagenes Adicionales
EHD-701 - Imagen adicional 1
Measure Depth
4.00in
Measure Depth (mm)
102.00mm
Measure Width
9.16in
Measure Width (mm)
233.00mm
Measure Height
13.93in
Measure Height (mm)
354.00mm
Product Line
Sloan Optima Air®
Hand Dryer Activation
Sensor
Hand Dryer Mounting
Wall-Mounted - ADA
Hand Dryer Product Line
Sloan Optima Air®
Brochures
Sloan Hand Dryers Brochure
Installation Instruction
OPTIMA AIR HAND DRYER EHD-700 SERIES
BIM Model
EHD-701_EHD-702 BIM
CAD Drawing
EHD-701_EHD-702 AutoCad
Features List
Hygienic hand drying solution, 14 second dry time
Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz, Can install multiple units on one circuit
Meets ADA requirements without the need of a recess kit
Adjustable speed and sound (High-Low), Adjustable Heat (High-Low-Off)
95% cost savings vs. paper towels
Weight: 8-10 lbs.
Vandal resistant cover design, Virtually maintenance free
Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).
35-second lockout feature if hands are not removed

Wall Guard Stainless

By admin , 9 October 2025
Product Code
Wall Guard Stainless
Product Type
Parent
Date Updated
1777939200
Product Category
Accessory
Url Slug
wall-guard-stainless
Compliances and Certifications
Proposition 65
Primary Description
Sloan Optima Air® Accessory
Series Description
Wall Guard Stainless
Product Line
Sloan Optima Air®
Accessory Product Type
Hand Dryer
Accessory Sub Type
Wall Guard
Accessory Product Line
Sloan Optima Air®
Brochures
Sloan Hand Dryers Brochure
BIM Model
EHD Wall Guard BIM
Features List
Designed to fit under Sloan's hand dryers to protect walls from water that is blown off during the drying process
Brushed Nickel finish. Available in 3 finishes/colors
Depth 0.0625 in x Height 15.75 in x Width 31.75

ADA Recess Kit

By admin , 9 October 2025
Product Code
ADA Recess Kit
Product Type
Parent
Date Updated
1777939200
Product Category
Accessory
Url Slug
ada-recess-kit
Compliances and Certifications
Proposition 65
Primary Description
Sloan XLERATOR® Accessory
Series Description
Premium ADA Recess Kit
Imagenes Adicionales
ADA Recess Kit - Imagen adicional 1
Product Line
Sloan XLERATOR®
Accessory Product Type
Hand Dryer
Accessory Sub Type
Recess Kit
Accessory Product Line
Sloan XLERATOR®
Brochures
Sloan Hand Dryers Brochure
BIM Model
EHD Recess Mounting Kit BIM
CAD Drawing
EHD Recess Mounting Kit CAD
Features List
Recess kit for Sloan Xlerator and Sloan Xlerator® dryers to meet ADA protrusion requirement of 4"
Brushed Stainless finish
16 3/8" Wide x 26" High x 3 3/8" Deep

Wall Guard White

By admin , 9 October 2025
Product Code
Wall Guard White
Product Type
Parent
Date Updated
1777939200
Product Category
Accessory
Url Slug
wall-guard-white
Compliances and Certifications
Proposition 65
Primary Description
Sloan Optima Air® Accessory
Series Description
Wall Guard White
Product Line
Sloan Optima Air®
Accessory Product Type
Hand Dryer
Accessory Sub Type
Wall Guard
Accessory Product Line
Sloan Optima Air®
Brochures
Sloan Hand Dryers Brochure
BIM Model
EHD Wall Guard BIM
Features List
Designed to fit under Sloan's hand dryers to protect walls from water that is blown off during the drying process
Polished White finish. Available in 3 finishes/colors
Depth 0.0625 in x Height 15.75 in x Width 31.75

Wall Guard Black

By admin , 9 October 2025
Product Code
Wall Guard Black
Product Type
Parent
Date Updated
1777939200
Product Category
Accessory
Url Slug
wall-guard-black
Compliances and Certifications
Proposition 65
Primary Description
Sloan Optima Air® Accessory
Series Description
Wall Guard Black
Product Line
Sloan Optima Air®
Accessory Product Type
Hand Dryer
Accessory Sub Type
Wall Guard
Accessory Product Line
Sloan Optima Air®
Brochures
Sloan Hand Dryers Brochure
BIM Model
EHD Wall Guard BIM
Features List
Designed to fit under Sloan's hand dryers to protect walls from water that is blown off during the drying process
Black finish. Available in 3 finishes/colors
Depth 0.0625 in x Height 15.75 in x Width 31.75
Intro Section
Title
Recommended products
Items FC
Title
ADA-Compliant Recess Kit
Descripcion

Allows the Sloan XLERATOR® to meet the ADA 4-inch protrusion requirement.

Image FCI
White Sloan Optima Air hand dryer mounted on a gray tiled restroom wall.
Title
XChanger® Combo/ADA Kit
Descripcion

Retrofit your paper towel dispenser and waste receptacle with standard and ADA height options.

Image FCI
Recessed stainless steel wall box for Sloan hand dryer installation.
Title
Antimicrobial Wall Guards
Descripcion

Protect your walls from excessive water run-off. Available in Brushed Nickel finish, Matte White, and Matte Black.

Image FCI
Two recessed wall boxes with stainless steel panels for Sloan hand dryers.
Title
Noise Reduction Nozzle
Descripcion

Reduces sound level by 9 dB with a slight increase in dry time (approx. 3 seconds).

Image FCI
Stainless steel wall cover plate for Sloan recessed hand dryer system.
Header Basic P
Title
Essential Wall-mounted Hand Dryer accessories
Descripcion

From noise reduction to ADA compliance, these hand dryer accessories help create a better restroom experience.

Image TCSC
Graphic showing 70% carbon footprint reduction, 95% cost savings, and zero paper waste.
Title
Why air is better than paper
Descripcion

See how you can achieve 95% percent cost savings and 70% carbon footprint reduction by getting rid of paper towels by switching to our high-speed, energy-efficient hand dryers.

Reverse
0
Image TCSC
Modern sink with Sloan faucets in a matte black finish installed on a light stone countertop.
Title
Off the wall hand drying solution
Descripcion

Bring hand drying off the wall and onto the sink deck with Sloan’s AER-DEC® Integrated Sinks—designed to keep water in the basin and elevate every handwashing experience. Available in three distinct fixture styles: Clark Street®, Rush Street®, and BASYS® that deliver the same seamless integration of faucet, soap, and dryer, with unique aesthetics designs to complement any space.

Buttons
Text Button
Learn more
Link
/en/product-line/aer-dec-integrated-sink
Is External
0
Reverse
1
By Soni , 21 October 2025

Rush Street®

Url Slug
rush-street
General Content
General Conten
Title
Rush Street®
Subtitle
Sharp angles that fuse glamour with technology
Image TCSC
Modern restroom with Sloan brass faucets, white and blue tile walls, and urinals separated by wood dividers.
Title
Collection details
Descripcion

Our Rush Street Collection features smooth forms fused with sharp angles. Like Chicago’s own Rush street, this collection has something for everyone. Natural finishes. Smooth stonework. Understated luxury at the intersection of a gritty past and a glamorous present.

Download everything you need to inspire your own room.
Includes hi-res images, specification sheets, and BIM/CAD files.

Design inspiration

  • Clean lines
  • Sharp angles
  • Fused forms
Buttons
Text Button
Download assets
Is External
0
Reverse
0
Item Parts preview
Parent Product

ETF-420

By admin , 9 October 2025
Product Code
ETF-420
Product Type
Parent
Date Updated
1760572800
Product Category
Faucet
Url Slug
etf-420
Primary Description
Optima® Sensor Faucet
Series Description
Optima® Hardwired-Powered Deck-Mounted Mid Body Faucet
Informational Videos
PVD Special Finishes
Sloan Connect App®
Product Line
Optima®
Product Family
Electronic Transformer Faucet
Body Type
Mid
Spout Design
420/425 Mid
Faucet Mounting Style
Deck-Mounted
Faucet Power Type
Hardwired
Faucet Mounting Type
Deck
Faucet Product Line
Optima®

ESD-420

By admin , 9 October 2025
Soap Dispenser Sensor Type
IR
Product Code
ESD-420
Product Type
Parent
Date Updated
1776902400
Product Category
Soap Dispenser
Url Slug
esd-420
Compliances and Certifications
ADA Compliant
WELL Building Standard
Primary Description
Sloan® Soap Dispenser
Series Description
Sloan® Deck-Mounted Foam Soap Dispenser
Imagenes Adicionales
ESD-420 - Imagen adicional 1
ESD-420 - Imagen adicional 2
ESD-420 - Imagen adicional 3
ESD-420 - Imagen adicional 4
ESD-420 - Imagen adicional 5
ESD-420 - Imagen adicional 6
ESD-420 - Imagen adicional 7
Measure Depth
5.95in
Measure Depth (mm)
151.00mm
Measure Width
2.84in
Measure Width (mm)
72.00mm
Measure Height
4.85in
Measure Height (mm)
123.00mm
Product Line
Sloan®
Matching Faucets
EBF-425
ETF-420
Soap Dispenser Power Type
Battery
Dispenser Soap Type
Foam
Soap Dispenser Product Line
Sloan®
Brochures
Special Finishes Brochure
Faucet and Soap Dispenser Brochure
Installation Instruction
ESD Series Installation Instructions
Repair & Maintenance Guide
ESD-500-600-700-800-1500-2000-2100 Repair and Maintenance Guide
BIM Model
ESD-420 BIM
CAD Drawing
ESD-420 CAD
Rough-In Parent
ESD-420 - Rough-In Parent
Features Intro
Sensor Activated, Electronic, Hand Washing Foam Soap Dispenser with the following features:

Features List
Touch-free operation improves hand washing hygiene
Modular one-piece construction easily attaches to deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout
Motor assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations. 1-2 years based on usage.
Approx. 1,500 dispenses per foam soap bottle
Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)
Ships with battery pack (4 "D" Alkaline batteries included)
Sensor range – nominal 5”
All mounting hardware included
Optional ESD-324 AC adaptor can be purchased separately (part number 0346090) for hardwired applications and includes splitter cable to enable powering 2 soap dispensers. If using AC adaptor, GFI outlet 120V/15 Amp suggested per code
Additional foam soap can be purchased through Sloan (ESD-325) or GOJO distribution (8565-04-N6300GN)
Select the ESD-421 to combine ESD-420 soap dispenser, 2 bottles of soap and the EBF-425 faucet
Note: Must used approved soap refills. Refills cannot be refilled after use. They must be recycled and a new bottle inserted into the dispenser. If they are refilled with a different soap the warranty on the soap dispenser will become null and void.

ECOS 111

By admin , 9 October 2025
Product Code
ECOS 111
Product Type
Parent
Date Updated
1778716800
Product Category
Flushometer
Url Slug
ecos-111
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
Satisfies LEED Credits
EPA WaterSense Listed
Primary Description
ECOS® Sensor Flushometer
Series Description
ECOS® Exposed Sensor Hardwired Water Closet Flushometer
Product Line
ECOS®
Flushometer Installation
Exposed
Flushometer Activation
Sensor
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Water Closet
Flushometer Product Line
ECOS®
Brochures
Flushometers Brochure
Installation Instruction
Sloan ECOS Single_Dual-Flush Flushometer & Retrofit Valve Installation Instruct…
Repair & Maintenance Guide
ECOS HW Repair and Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Transparency Reports
Sensor Flushometers EPD
Sensor Flushometers OPT EPD
BIM Model
ECOS 111 HW BIM Model
ECOS 111 BIM Model
Maintenance Schedule
Flushometer Parts Maintenance Schedule

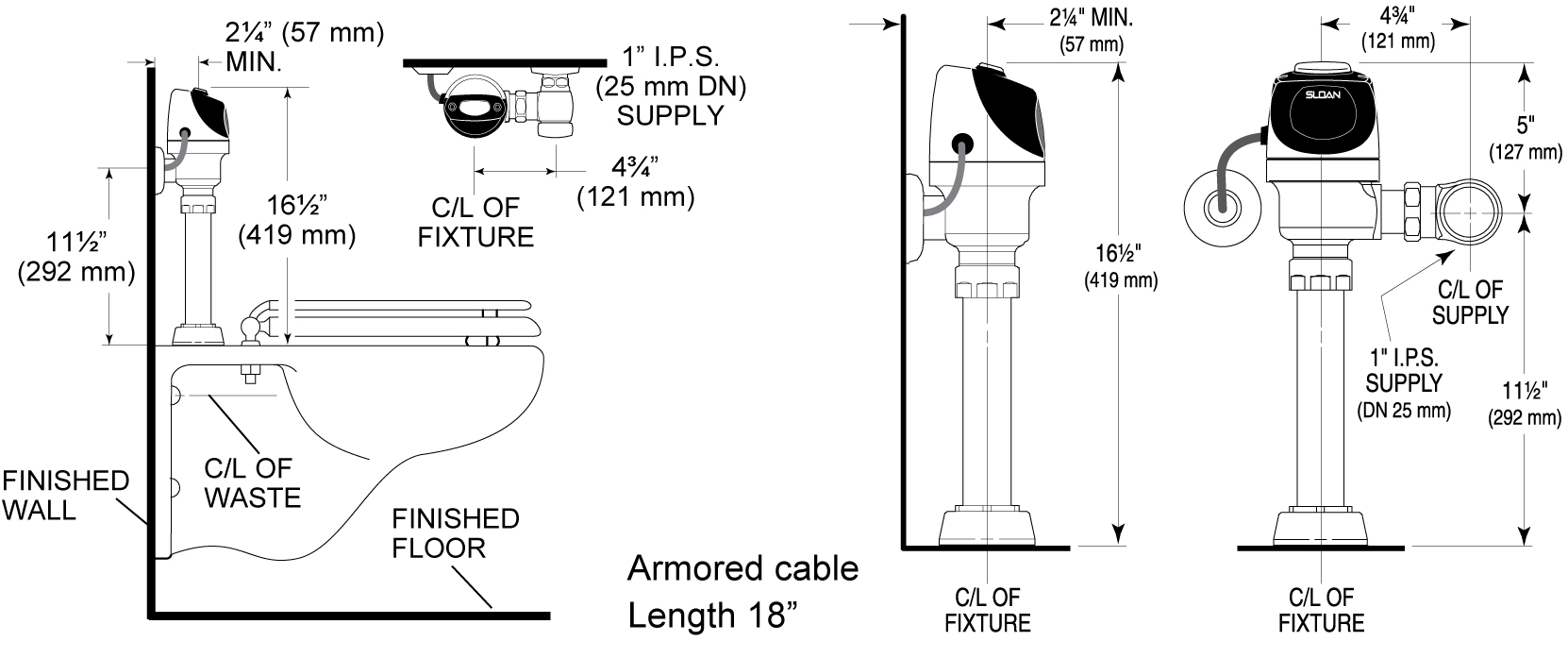

Rough-In Parent
ECOS 111 - Rough-In Parent
Features List
Employs an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
User-friendly, three-second flush delay
High copper, low zinc brass castings for dezincification resistance
Fixed metering bypass and no external volume adjustment to ensure water conservation
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

EHD-701

By admin , 9 October 2025
Hand Dryer Power Type
Hardwired
Product Code
EHD-701
Product Type
Parent
Date Updated
1777939200
Product Category
Hand Dryer
Url Slug
ehd-701
Compliances and Certifications
BAA Compliant
Proposition 65
UL Certified
WELL Building Standard
Primary Description
Sloan Optima Air® Hand Dryer
Series Description
Sloan Optima Air® Sensor-Operated Wall-Mounted - ADA Hand Dryer
Imagenes Adicionales
EHD-701 - Imagen adicional 1
Measure Depth
4.00in
Measure Depth (mm)
102.00mm
Measure Width
9.16in
Measure Width (mm)
233.00mm
Measure Height
13.93in
Measure Height (mm)
354.00mm
Product Line
Sloan Optima Air®
Hand Dryer Activation
Sensor
Hand Dryer Mounting
Wall-Mounted - ADA
Hand Dryer Product Line
Sloan Optima Air®
Brochures
Sloan Hand Dryers Brochure
Installation Instruction
OPTIMA AIR HAND DRYER EHD-700 SERIES
BIM Model
EHD-701_EHD-702 BIM
CAD Drawing
EHD-701_EHD-702 AutoCad
Features List
Hygienic hand drying solution, 14 second dry time
Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz, Can install multiple units on one circuit
Meets ADA requirements without the need of a recess kit
Adjustable speed and sound (High-Low), Adjustable Heat (High-Low-Off)
95% cost savings vs. paper towels
Weight: 8-10 lbs.
Vandal resistant cover design, Virtually maintenance free
Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).
35-second lockout feature if hands are not removed

ECOS 8186

By admin , 9 October 2025
Battery Specifications Parent
ECOS 8186 - Battery Specifications Parent
Product Code
ECOS 8186
Product Type
Parent
Date Updated
1774224000
Product Category
Flushometer
Url Slug
ecos-8186
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
HPD
Satisfies LEED Credits
EPA WaterSense Listed
WELL Building Standard
Primary Description
ECOS® Sensor Flushometer
Series Description
ECOS® Exposed Sensor Urinal Flushometer
Imagenes Adicionales
ECOS 8186 - Imagen adicional 1
ECOS 8186 - Imagen adicional 2
ECOS 8186 - Imagen adicional 3
ECOS 8186 - Imagen adicional 4
Product Line
ECOS®
Flushometer Installation
Exposed
Flushometer Activation
Sensor
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Urinal
Flushometer Product Line
ECOS®
Brochures
Special Finishes Brochure
Installation Instruction
Sloan ECOS Single_Dual-Flush Flushometer & Retrofit Valve Installation Instruct…
Sloan Ecos Valve (Spanish) Installation Instructions
Repair & Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
ECOS Repair and Maintenance Guide
Sloan Optima Plus Flushometers Repair and Maintenance Guide
Transparency Reports
Sensor Flushometers HPD
BIM Model
ECOS 8186 BIM Model
CAD Drawing
ECOS 8186 Elevation View CAD Drawing
ECOS 8186 Front View CAD Drawing
Maintenance Schedule
Flushometer Parts Maintenance Schedule
Rough-In Parent
ECOS 8186 - Rough-In Parent
Features List
Water-efficient flush volume of either .13 gpf or .25 gpf
Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
User-friendly, three-second flush delay
High copper, low zinc brass castings for dezincification resistance
Fixed metering bypass and no external volume adjustment to ensure water conservation
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

SU-7009

By admin , 9 October 2025
Product Code
SU-7009
Product Type
Parent
Date Updated
1760486400
Product Category
Urinal
Url Slug
su-7009
Primary Description
Small Washdown Urinal
Series Description
Vitreous China Washdown Urinal
Measure Length
14.75in
Measure Length (mm)
375.00mm
Measure Width
14.19in
Measure Width (mm)
360.00mm
Measure Height
23.50in
Measure Height (mm)
597.00mm
Product Line
Sloan® Vitreous China
Urinal Flush Volume gpf
0.13gpf
Urinal Fixture Connection
Top
Urinal Flush Method
Washdown
Urinal Type
Small
Urinal Product Line
Sloan® Vitreous China
Spec Sheet Description
Standard
Intro Section
Title
Design inspiration
By Soni , 21 October 2025

Clark Street®

Url Slug
clark-street
General Content
General Conten
Title
Clark Street®
Subtitle
Architectural facets create an elegant restroom
Image TCSC
Modern commercial restroom with a row of Sloan faucets and mirrors over a sleek solid surface sink.
Title
Collection details
Descripcion

Angular. Prominent. Elegantly positioned. Our Clark Street Collection mirrors the commanding lines of one of Chicago’s signature thoroughfares. Drawing from a wide range of architectural influences, this collection brings precise angles into harmony with subtle curves that capture light and attention.

Download everything you need to inspire your own room.
Includes hi-res images, specification sheets, and BIM/CAD files.

Design inspiration

  • Faceted edges
  • Elegant angles
  • Subtle curves



Buttons
Text Button
Download assets
Is External
0
Reverse
0
Item Parts preview
Parent Product

ETF-410

By admin , 9 October 2025
Product Code
ETF-410
Product Type
Parent
Date Updated
1760572800
Product Category
Faucet
Url Slug
etf-410
Primary Description
Optima® Sensor Faucet
Series Description
Optima® Hardwired-Powered Deck-Mounted Low Body Faucet
Informational Videos
PVD Special Finishes
Sloan Connect App®
Product Line
Optima®
Product Family
Electronic Transformer Faucet
Body Type
Low
Spout Design
410/415 Low
Faucet Mounting Style
Deck-Mounted
Faucet Power Type
Hardwired
Faucet Mounting Type
Deck
Faucet Product Line
Optima®

ESD-410

By admin , 9 October 2025
Soap Dispenser Sensor Type
IR
Product Code
ESD-410
Product Type
Parent
Date Updated
1776902400
Product Category
Soap Dispenser
Url Slug
esd-410
Compliances and Certifications
ADA Compliant
WELL Building Standard
Primary Description
Sloan® Soap Dispenser
Series Description
Sloan® Deck-Mounted Foam Soap Dispenser
Imagenes Adicionales
ESD-410 - Imagen adicional 1
ESD-410 - Imagen adicional 2
ESD-410 - Imagen adicional 3
ESD-410 - Imagen adicional 4
ESD-410 - Imagen adicional 5
ESD-410 - Imagen adicional 6
ESD-410 - Imagen adicional 7
Measure Depth
5.84in
Measure Depth (mm)
148.00mm
Measure Width
1.90in
Measure Width (mm)
48.00mm
Measure Height
3.85in
Measure Height (mm)
98.00mm
Product Line
Sloan®
Matching Faucets
EBF-415
ETF-410
Soap Dispenser Power Type
Battery
Dispenser Soap Type
Foam
Soap Dispenser Product Line
Sloan®
Brochures
Special Finishes Brochure
Faucet and Soap Dispenser Brochure
Installation Instruction
ESD Series Installation Instructions
Repair & Maintenance Guide
ESD-500-600-700-800-1500-2000-2100 Repair and Maintenance Guide
BIM Model
ESD-410 BIM
CAD Drawing
ESD-410 CAD
Rough-In Parent
ESD-410 - Rough-In Parent
Features Intro
Sensor Activated, Electronic, Hand Washing Foam Soap Dispenser with the following features:

Features List
Touch-free operation improves hand washing hygiene
Modular one-piece construction easily attaches to deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout
Motor assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations. 1-2 years based on usage.
Approx. 1,500 dispenses per foam soap bottle
Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)
Ships with battery pack (4 "D" Alkaline batteries included)
Sensor range – nominal 5”
All mounting hardware included
Optional ESD-324 AC adaptor can be purchased separately (part number 0346090) for hardwired applications and includes splitter cable to enable powering 2 soap dispensers. If using AC adaptor, GFI outlet 120V/15 Amp suggested per code
Additional foam soap can be purchased through Sloan (ESD-325) or GOJO distribution (8565-04-N6300GN)
Select the ESD-411 to combine ESD-410 soap dispenser, 2 bottles of soap and the EBF-415 faucet
Note: Must used approved soap refills. Refills cannot be refilled after use. They must be recycled and a new bottle inserted into the dispenser. If they are refilled with a different soap the warranty on the soap dispenser will become null and void.

CX 8158

By Anonymous (not verified) , 10 October 2025
Product Code
CX 8158
Product Type
Parent
Date Updated
1773705600
Product Category
Flushometer
Url Slug
cx-8158
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
HPD
EPA WaterSense Listed
WELL Building Standard
Primary Description
CX Sensor Flushometer
Series Description
CX Concealed Sensor Wall-Mounted Water Closet Flushometer
Informational Videos
PVD Special Finishes
CX Flushometer Product Video (Spanish)
Installation Videos
CX Flushometer - Sensor Installation
Maintenance Videos
CX Flushometer - Sensor Vacuum Service
CX Flushometer - Sensor Piston Service
Product Line
CX
Flushometer Installation
Concealed
Flushometer Activation
Sensor
Flushometer Valve
Piston
Flushometer Fixture Type
Water Closet
Flushometer Product Line
CX
Brochures
CX Flushometer Brochure
Special Finishes Brochure
Installation Instruction
CX 8158_8198 Installation Instructions
Repair & Maintenance Guide
CXSensor
Transparency Reports
CX Concealed Sensor Flushometers HPD
CX Sensor Flushometer EPD
BIM Model
CX 8158 BIM Model
Rough-In Parent
CX 8158 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
Sensor activated, hands-free operation
Battery operated with hardwired option
Electronic override button
Low battery indicator light
Vandal resistant wall plate
Adjustable flush connection
8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

ST-2459

By admin , 9 October 2025
Product Code
ST-2459
Product Type
Parent
Date Updated
1779148800
Product Category
Water Closet
Url Slug
st-2459
Compliances and Certifications
ADA Compliant
CalGreen Compliant
Carbon Neutral
Carbon Offset
CEC Compliant
HPD
Satisfies LEED Credits
EPA WaterSense Listed
WELL Building Standard
Primary Description
Elongated Wall-Mounted Water Closet
Series Description
Vitreous China Wall-Mounted Water Closet
Measure Length
26.75in
Measure Length (mm)
679.00mm
Measure Width
15.00in
Measure Width (mm)
381.00mm
Measure Height
13.25in
Measure Height (mm)
337.00mm
Product Line
Sloan® Vitreous China
Water Closet Mounting
Wall-Mounted
Water Closet Fixture Connection
Top
Water Closet Flush Volume gpf
1.10gpf
Water Closet Product Line
Sloan® Vitreous China
Brochures
Fixture Brochure
Installation Instruction
HET Wall Hung Water Closet Installation Instructions
Repair & Maintenance Guide
SS:ST:SU:WETS:WEUS Fixtures Repair and Maintenance Guide
Transparency Reports
Water Closets EPD
BIM Model
ST-2459 BIM
CAD Drawing
ST-2459 CAD
Rough-In Parent
ST-2459 - Rough-In Parent
Features List
Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
Durable, hygienic vitreous china construction with elongated rim
Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
IAPMO certified to meet or exceed ASME A112.19.2 standards
Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Designed to complement Sloan flushometers

CX 8198

By Anonymous (not verified) , 10 October 2025
Product Code
CX 8198
Product Type
Parent
Date Updated
1773705600
Product Category
Flushometer
Url Slug
cx-8198
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
HPD
EPA WaterSense Listed
Primary Description
CX Sensor Flushometer
Series Description
CX Concealed Sensor Urinal Flushometer
Informational Videos
PVD Special Finishes
CX Flushometer Product Video (Spanish)
Installation Videos
CX Flushometer - Sensor Installation
Maintenance Videos
CX Flushometer - Sensor Vacuum Service
CX Flushometer - Sensor Piston Service
Product Line
CX
Flushometer Installation
Concealed
Flushometer Activation
Sensor
Flushometer Valve
Piston
Flushometer Fixture Type
Urinal
Flushometer Product Line
CX
Brochures
CX Flushometer Brochure
Special Finishes Brochure
Installation Instruction
CX 8158_8198 Installation Instructions
Repair & Maintenance Guide
CXSensor
Transparency Reports
CX Concealed Sensor Flushometers HPD
CX Sensor Flushometer EPD
BIM Model
CX 8198 BIM Model
Rough-In Parent
CX 8198 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
Sensor activated, hands-free operation
Battery operated with hardwired option
Electronic override button
low Battery indicator light
vandal resistant wall plate
Adjustable flush connection

SU-7419

By Anonymous (not verified) , 10 October 2025
Product Code
SU-7419
Product Type
Parent
Date Updated
1760313600
Product Category
Urinal
Url Slug
su-7419
Primary Description
Designer Washdown Urinal
Series Description
Vitreous China Washdown Urinal
Measure Length
14.13in
Measure Length (mm)
359.00mm
Measure Width
12.63in
Measure Width (mm)
321.00mm
Measure Height
23.13in
Measure Height (mm)
587.00mm
Product Line
Sloan® Vitreous China
Urinal Flush Volume gpf
0.13gpf
Urinal Fixture Connection
Rear
Urinal Flush Method
Washdown
Urinal Type
Designer
Urinal Product Line
Sloan® Vitreous China
Spec Sheet Description
Standard

EHD-501

By admin , 9 October 2025
Hand Dryer Power Type
Hardwired
Product Code
EHD-501
Product Type
Parent
Date Updated
1777939200
Product Category
Hand Dryer
Url Slug
ehd-501
Compliances and Certifications
BAA Compliant
Proposition 65
UL Certified
WELL Building Standard
Primary Description
Sloan XLERATOR® Hand Dryer
Series Description
Sloan XLERATOR® Sensor-Operated Wall-Mounted Hand Dryer
Imagenes Adicionales
EHD-501 - Imagen adicional 1
EHD-501 - Imagen adicional 2
Measure Depth
6.69in
Measure Depth (mm)
170.00mm
Measure Width
11.75in
Measure Width (mm)
298.00mm
Measure Height
12.69in
Measure Height (mm)
322.00mm
Product Line
Sloan XLERATOR®
Hand Dryer Activation
Sensor
Hand Dryer Mounting
Wall-Mounted
Hand Dryer Product Line
Sloan XLERATOR®
Brochures
Sloan Hand Dryers Brochure
Installation Instruction
Sloan XLERATOR and Sloan XLERATOR Eco Hand Dryer Instructions
Repair & Maintenance Guide
EHD-501 Series Hand dryers Repair and Maintenance Guide
Transparency Reports
XLERATOR Hand Dryers EPD
XLERATOR Hand Dryers HPD
BIM Model
EHD-501_501-ECO_502_502 ECO BIM
CAD Drawing
CCF002.12_SURFACE_MOUNT_BW_XLERATOR
Features List
8 second dry time, Weight: 15-17 lbs.
95% cost savings vs. paper towels
Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).
Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
Can be easily positioned to comply with ADA requirements or for juvenile height
Vandal resistant cover design, Virtually maintenance free
Electric Specifications: 110-120V – 11.3-12.2 Amps, 1240-1450 Watts, 50/60 Hz, can install multiple units on one circuit
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Intro Section
Title
Design inspiration
By Soni , 21 October 2025

Sloan® Designer Urinals

Url Slug
designer-urinals
General Content
General Conten
Title
Sloan® Designer Urinals
Subtitle
Dependable performance has never looked better.
Pre Title
Urinals
Title
Improving a proven solution
Descripcion

High-end commercial restrooms demand an elegance that ordinary fixtures just can't deliver. That's why we created the Designer Urinal, with its unique, sleek lines and sophisticated flair. Dependable performance has never looked better.

Feature Card Item
Image FC
Single Sloan urinal with a sensor-operated flushometer installed on a light-colored wall.
Content FC
Created for the architect and designer
In a fine restaurant, upscale hotel lobby, or modern office building, restroom users expect a higher degree of style. The Designer Urinal makes the visual statement you need to express your commercial restroom design vision.
Horizontal FC
0
Image FC
Close-up of a Sloan urinal showcasing its smooth, minimalist design and high-efficiency performance.
Content FC
Uncompromising standards for the engineer
The Designer Urinal is visually striking while still providing the performance you depend on from Sloan. That means industry-leading durability, clockwork reliability, and sustainable water savings.
Horizontal FC
0
Image FC
Row of Sloan urinals with automatic flush valves in a modern restroom with privacy dividers.
Content FC
Performance for the building owner
The Designer Urinal is built for optimal performance with any Sloan urinal flushometer—exposed or concealed, manual or sensor-activated. The optional SloanTec® Hydrophobic Glaze keeps the urinal clean longer.
Horizontal FC
0
Image TCSC
Sloan urinals with sensor-activated flush valves and dark privacy dividers in a modern restroom.
Title
The Sloan Designer Urinal is crafted to give your next commercial restroom project a distinctive edge.
Descripcion

Because you should never have to compromise style for performance, the Designer Urinal is conceived to meet your unique design vision and built with industry-leading durability, clockwork reliability, and sustainable water savings.

The Sloan Designer Urinal is perfect for:

  • Class A Office Building
  • Finer Restaurants
  • Hotel Lobbies
  • Boutique and Retail Shopping
  • Theaters and Nightclubs
  • Upscale Events and Tourism Venues
Reverse
0
Title
Designed to perform
Descripcion

Multiple body types offer a variety of functional and aesthetic options.

Feature Card Item
Image FC
Icon representing water flow efficiency in Sloan urinals.
Content FC
Water efficiencyDesigned to accommodate four flush volume options to help meet your specific needs: 0.125, 0.25, 0.5, and 1.0 gpf.
Horizontal FC
0
Image FC
Icon symbolizing easy-to-clean, hygienic surfaces.
Content FC
Designed for cleanliness
A fully skirted trapway provides a smooth look and easy-to-clean surface.
Horizontal FC
0
Image FC
Icon showing compatibility with Sloan system components.
Content FC
Performs with any Sloan urinal flushometer
The Designer Urinal coordinates perfectly with any Sloan urinal flushometer—exposed or concealed, manual or sensor-activated.
Horizontal FC
0
Image FC
Icon indicating waterless or low-maintenance urinal technology.
Content FC
Continuous rim
A unique upward-pitched rim reduces splashing.
Horizontal FC
0
Image TCSC
Close-up of Sloan urinal flush technology showing efficient water flow inside the drainage system.
Title
Our Hybrid Urinal takes a fresh approach to sustainable design
Descripcion

With growing water scarcity and stricter usage regulations, conservation has never been more critical. Sloan’s waterfree and 1/8 gpf high-efficiency urinals save thousands of gallons annually while maintaining odor-free, reliable performance. However, without proper maintenance, buildup in drain lines can reduce flow and cause unpleasant odors—leading some users to believe these fixtures fall short of expectations.

Reverse
1
Feature Card Item
Image FC
Icon representing water-saving performance in Sloan urinals.
Content FC
Water savings
Approaches waterfree urinal water savings by using only about 100 gallons/year.
Horizontal FC
0
Image FC
Icon illustrating odor control and improved air circulation technology.
Content FC
No odors or clogs
Virtually eliminates the root cause of most waterfree issues and perceptions – odor and clogs.
Horizontal FC
0
Image FC
Icon symbolizing precise fit and reliable installation alignment.
Content FC
No drainline cleaning
Eliminates bucket dumps and bottle brush cleaning and hard calcite formation.
Horizontal FC
0
Image TCSC
Three Sloan urinals in different models and sizes installed against a dark tiled wall.
Title
HYB-1000-RET: The Hybrid Retrofit
Descripcion

The Hybrid Retrofit is a quick and easy replacement for your existing urinal, with all the benefits of the standard hybrid urinal.

  • Existing supply stop used as water source for hybrid
  • Familiar water connection to plumbers
  • Allows seamless replacement of installed flushing urinals
Reverse
0
Item Parts preview
Parent Product

SU-7409

By Anonymous (not verified) , 10 October 2025
Product Code
SU-7409
Product Type
Parent
Date Updated
1760313600
Product Category
Urinal
Url Slug
su-7409
Primary Description
Designer Washdown Urinal
Series Description
Vitreous China Washdown Urinal
Measure Length
14.13in
Measure Length (mm)
359.00mm
Measure Width
12.63in
Measure Width (mm)
321.00mm
Measure Height
23.13in
Measure Height (mm)
587.00mm
Product Line
Sloan® Vitreous China
Urinal Flush Volume gpf
0.13gpf
Urinal Fixture Connection
Top
Urinal Flush Method
Washdown
Urinal Type
Designer
Urinal Product Line
Sloan® Vitreous China
Spec Sheet Description
Standard

SU-7419

By Anonymous (not verified) , 10 October 2025
Product Code
SU-7419
Product Type
Parent
Date Updated
1760313600
Product Category
Urinal
Url Slug
su-7419
Primary Description
Designer Washdown Urinal
Series Description
Vitreous China Washdown Urinal
Measure Length
14.13in
Measure Length (mm)
359.00mm
Measure Width
12.63in
Measure Width (mm)
321.00mm
Measure Height
23.13in
Measure Height (mm)
587.00mm
Product Line
Sloan® Vitreous China
Urinal Flush Volume gpf
0.13gpf
Urinal Fixture Connection
Rear
Urinal Flush Method
Washdown
Urinal Type
Designer
Urinal Product Line
Sloan® Vitreous China
Spec Sheet Description
Standard

HYB-1000

By admin , 9 October 2025
Product Code
HYB-1000
Product Type
Parent
Date Updated
1760313600
Product Category
Urinal
Url Slug
hyb-1000
Primary Description
Standard Hybrid Urinal
Series Description
Vitreous China Hybrid Urinal
Measure Length
14.38in
Measure Length (mm)
365.00mm
Measure Width
19.63in
Measure Width (mm)
498.00mm
Measure Height
26.75in
Measure Height (mm)
679.00mm
Product Line
Sloan® Vitreous China
Urinal Flush Method
Hybrid
Urinal Type
Standard
Urinal Product Line
Sloan® Vitreous China
Spec Sheet Description
Standard

HYB-4000

By admin , 9 October 2025
Product Code
HYB-4000
Product Type
Parent
Date Updated
1760313600
Product Category
Urinal
Url Slug
hyb-4000
Primary Description
Small Hybrid Urinal
Series Description
Vitreous China Hybrid Urinal
Measure Length
14.00in
Measure Length (mm)
356.00mm
Measure Width
15.38in
Measure Width (mm)
391.00mm
Measure Height
22.63in
Measure Height (mm)
575.00mm
Product Line
Sloan® Vitreous China
Urinal Flush Method
Hybrid
Urinal Type
Small
Urinal Product Line
Sloan® Vitreous China
Spec Sheet Description
Standard
Intro Section
Title
Options to fit your needs
Descripcion

Deliver exceptional performance and outstanding savings for any commercial restroom environment, including healthcare facilities, restaurants, hotels, stadiums, schools, universities, transportation terminals, and office buildings.

By Soni , 21 October 2025

Sloan Gravity Toilets

Url Slug
gravity-toilets
General Content
General Conten
Title
Sloan Gravity Toilets
Subtitle
The Gravity Toilet pairs Centriflo® flush technology with water-saving performance in a simple two-piece design for light commercial spaces.
Buttons
Text Button
Browse all
Link
/en/products/water-closet?product_level=general
Is External
0
Text Button
Gravity Toilets Brochure
Link
https://api.sloan-es.mx/sites/default/files/2025-10/W.C.%20Gravity%20Sloan%20%28Espanol%29%20compress.pdf
Is External
0
Pre Title
Toilets
Image TCSC
White pressure-assisted toilet installed in a modern blue bathroom, showcasing Sloan’s clean and efficient design.
Title
Thoughtfully designed.
Descripcion

Sloan’s Gravity Toilet features a one-piece look with the benefits of a two-piece toilet. The innovative tank design features a slightly inverted taper for a unique, modern aesthetic and a raised deck that eliminates rocking. The lid fits perfectly on the tank with no overhang, creating a monolithic, sleek appearance.

Reverse
0
Image TCSC
Close-up of a Sloan toilet with Centriflo™ technology, showing the powerful water vortex that ensures efficient, complete cleaning.
Title
Centriflo® technology delivers a more powerful flush
Descripcion

Achieve a cleaner bowl with a strong gravity-powered flush thanks to our dual-delivery bowl design. The sleek bowl design without rim holes provides a surge of water that makes a vigorous water cyclone that clears and cleans the bowl with every flush. The powerful flush eliminates any clogging of minerals or lime and minimizes bacteria that can grow in crevices for an easy cleaning experience.

Buttons
Text Button
Gravity Toilets Brochure
Is External
0
Reverse
1
Items FC
Title
Commercial
Descripcion

Designed to make light-to-medium-traffic restrooms in office buildings, warehouses, retail, and places of worship more welcoming.

Image FCI
Modern office interior with people walking on glass staircases in an open, multi-level space.
Title
Hospitality
Descripcion

Complete the look of any hospitality environment by making guests feel comfortable with a contemporary design.

Image FCI
Stylish restaurant interior with industrial décor, wooden tables, and hanging lights.
Title
Education
Descripcion

Enhanced hygiene and easy-to-clean glaze ensures durable fixtures with a classic design for education facilities, daycares, preschools, and more.

Image FCI
Empty modern classroom with blue chairs, wooden desks, and a clean whiteboard at the front.
Title
Healthcare
Descripcion

Sloan Gravity Toilets are compatible with medical, outpatient, and assisted living facilities, and retirement villages.

Image FCI
Exterior view of a modern hospital building with glass walkways and a bus passing by the entrance.
Title
Multi-family
Descripcion

A timeless fixture design reimagined for present-day apartment and multi-family living.

Image FCI
Contemporary residential building with balconies and green landscaping in front.
Header Basic P
Title
Sloan Gravity Toilets look at home in a variety of environments.
Descripcion

Our Gravity Toilets bring water savings, enhanced hygiene, and durability to commercial spaces of all kinds.

Title
Built Around Your Requirements
Descripcion

A closer look at the details that define the performance and versatility of Sloan Gravity Toilets.

Feature Card Item
Image FC
Technical specifications for Sloan gravity toilets showing flush volume, technology, handle, and installation options.
Content FC
Gravity Toilet Specifications
A complete line of specifications that make it easy to match performance with your design and accessibility goals.
Horizontal FC
0
Image FC
Comparison showing SloanTec hydrophobic glaze with a 95° water angle versus conventional glaze with a 13° angle.
Content FC
SloanTec® Hydrophobic Glaze
Available with SloanTec® Hydrophobic Glaze, an exclusive liquid-repelling glaze that inhibits the growth of bacteria and other germs.
Horizontal FC
0
Image FC
White Sloan toilet installed in a gray-tiled accessible restroom with grab bars on both sides.
Content FC
ADA-compliant
Sloan Gravity Toilets are available in both standard and ADA-compliant models, making them ideal for a wide range of applications and industries.
Horizontal FC
0
Item Parts preview
Parent Product

WETS-4009.4011

By admin , 8 October 2025
Product Code
WETS-4009.4011
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4009-4011
Compliances and Certifications
EPA WaterSense Listed
Primary Description
Elongated Floor-Mounted Standard Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) Standard 12" Rough-in Left Handle
Imagenes Adicionales
WETS-4009.4011 - Imagen adicional 1
WETS-4009.4011 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
Standard
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
12.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4009.4011 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4009_12_RI_Series
Rough-In Parent
WETS-4009.4011 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
12" (305mm) rough-in
Chrome metal flush handle - left hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included

WETS-4009.4211

By admin , 8 October 2025
Product Code
WETS-4009.4211
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4009-4211
Compliances and Certifications
EPA WaterSense Listed
Primary Description
Elongated Floor-Mounted Standard Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) Standard 10" Rough-in Left Handle
Imagenes Adicionales
WETS-4009.4211 - Imagen adicional 1
WETS-4009.4211 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
Standard
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
10.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4009.4211 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4009_10_RI_Series
Rough-In Parent
WETS-4009.4211 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
10" (254mm) rough-in
Chrome metal flush handle - left hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included

WETS-4009.4111

By admin , 8 October 2025
Product Code
WETS-4009.4111
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4009-4111
Compliances and Certifications
EPA WaterSense Listed
Primary Description
Elongated Floor-Mounted Standard Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) Standard 12" Rough-in Right Handle
Imagenes Adicionales
WETS-4009.4111 - Imagen adicional 1
WETS-4009.4111 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
Standard
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
12.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4009.4111 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4009_12_RI_Series
Rough-In Parent
WETS-4009.4111 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
12" (305mm) rough-in
Chrome metal flush handle - right hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included

WETS-4009.4311

By admin , 8 October 2025
Product Code
WETS-4009.4311
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4009-4311
Compliances and Certifications
EPA WaterSense Listed
Primary Description
Elongated Floor-Mounted Standard Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) Standard 10" Rough-in Right Handle
Imagenes Adicionales
WETS-4009.4311 - Imagen adicional 1
WETS-4009.4311 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
Standard
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
10.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4009.4311 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4009_10_RI_Series
Rough-In Parent
WETS-4009.4311 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
10" (254mm) rough-in
Chrome metal flush handle - right hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included

WETS-4029.4011

By admin , 8 October 2025
Product Code
WETS-4029.4011
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4029-4011
Compliances and Certifications
CalGreen Compliant
CEC Compliant
Primary Description
Elongated Floor-Mounted ADA Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) ADA 12" Rough-in Left Handle
Imagenes Adicionales
WETS-4029.4011 - Imagen adicional 1
WETS-4029.4011 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
ADA
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
12.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4029.4011 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4029_12_RI_Series
Rough-In Parent
WETS-4029.4011 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
12" (305mm) rough-in
Chrome metal flush handle - left hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included

WETS-4029.4211

By admin , 8 October 2025
Product Code
WETS-4029.4211
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4029-4211
Compliances and Certifications
CalGreen Compliant
CEC Compliant
Primary Description
Elongated Floor-Mounted ADA Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) ADA 10" Rough-in Left Handle
Imagenes Adicionales
WETS-4029.4211 - Imagen adicional 1
WETS-4029.4211 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
ADA
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
10.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4029.4211 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4029_10_RI_Series
Rough-In Parent
WETS-4029.4211 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
10" (254mm) rough-in
Chrome metal flush handle - left hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included

WETS-4029.4311

By admin , 8 October 2025
Product Code
WETS-4029.4311
Product Type
Parent
Date Updated
1777939200
Product Category
Water Closets
Url Slug
wets-4029-4311
Compliances and Certifications
CalGreen Compliant
CEC Compliant
Primary Description
Elongated Floor-Mounted ADA Gravity Toilet
Series Description
Floor-Mounted 1.1 gpf (4.2 lpf) ADA 10" Rough-in Right Handle
Imagenes Adicionales
WETS-4029.4311 - Imagen adicional 1
WETS-4029.4311 - Imagen adicional 2
Product Line
Gravity Tank Toilet
Water Closet Mounting
Floor-Mounted
Water Closet Fixture Connection
Gravity Tank Toilet
Floor Mount Type
ADA
Water Closet Flush Volume gpf
1.10gpf
Numeric lpf Water Closet Flush Volume
4.20lpf
Water Closet Rough-In Dimension inches
10.00"
Water Closet Product Line
Gravity Tank Toilet
Spec Sheet Description
Standard
Brochures
Sloan Gravity Toilets Brochure
Installation Instruction
WETS 4000 Series Installation Instructions
BIM Model
WETS-4029.4311 BIM
CAD Drawing
Toilet-Floor_Mount-Sloan-WETS-4029_10_RI_Series
Rough-In Parent
WETS-4029.4311 - Rough-In Parent
Features List
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
10" (254mm) rough-in
Chrome metal flush handle - right hand
Raised deck eliminates tank rocking and makes cleaning easy
Powerful Centriflo® siphon jet flushing action achieves 800g Map score
Water spot area: 11 ¼ x 9¾ (286 mm x 248 mm)
2⅛" (54mm) fully glazed trapway
Closet bolts and caps included
Toilet seat and wax ring not included
Intro Section
Title
The right design for your next project.
Descripcion

Sloan Gravity Toilets come in standard and ADA-compliant models with left- or right-hand handles, fitting a wide range of applications.

Cita Content

“Our Gravity Toilet is our latest innovation, where increased flushing efficiency is matched by enhanced style and aesthetics to provide the perfect complement to any restroom design.”

Cita Name
Rolando Zambrano
Cita Info
Sloan product line manager for Flushometers and fixtures
By Soni , 21 October 2025

Royal® Reclaimed Flushometer

Url Slug
reclaimed-flushometers
General Content
General Conten
Title
Royal® Reclaimed Flushometer
Subtitle
A flushometer designed to withstand the harsh conditions of reclaimed water.
Buttons
Text Button
Browse all Reclaimed Flushometers
Link
/en/products/flushometer?product_level=general&flux_pl=131&flux_spec=Reclaimed+Water
Is External
0
Image TCSC
Reclaimed water flushometer with purple handle and wall flange, clearly identifying non-potable water use.
Title
The challenges of reclaimed water in a commercial setting
Descripcion

As drought-stricken regions face worsening water shortages, municipalities are turning to reclaimed water to conserve potable supplies. Already common in irrigation, reclaimed water is also well-suited for flushing toilets and urinals in commercial facilities—saving thousands of gallons annually. However, its higher chemical content can damage plumbing components made with yellow brass or organic rubber, increasing maintenance needs and the risk of premature failure.

Reverse
0
Image TCSC
Sloan reclaimed water flushometers feature purple indicators and synthetic materials to ensure safe, efficient use of non-potable water
Title
Designed for reclaimed water systems
Descripcion

Sloan’s Royal Reclaimed Water Flushometer is engineered to withstand the harsh conditions reclaimed water presents.

Reverse
1
Item Parts preview
Parent Product

ROYAL 111 RW

By admin , 9 October 2025
Product Code
ROYAL 111 RW
Product Type
Parent
Date Updated
1772668800
Product Category
Flushometer
Url Slug
royal-111-rw
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
Made in the USA
Satisfies LEED Credits
EPA WaterSense Listed
Primary Description
Royal® Manual Specialty Flushometer
Series Description
Royal® Exposed Manual Specialty Water Closet Reclaimed Water Flushometer
Product Line
Royal®
Flushometer Installation
Exposed
Flushometer Activation
Manual Specialty
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Water Closet
Flushometer Specialty
Reclaimed Water
Flushometer Product Line
Royal®
Brochures
Retrofits Brochure
Installation Instruction
Royal Reclaimed Water Flushometer Installation Instructions
Repair & Maintenance Guide
Royal Manual Diaphragm Flushometer Repair and Maintenance Guide
Reclaimed Water Flushometers Repair and Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Transparency Reports
Diaphragm Flushometers EPD
Diaphragm Flushometers OPT EPD
Diaphragm Flushometers HPD
BIM Model
Royal 111 BIM Model
CAD Drawing
Royal 111 RW Elevation View CAD Drawing
Royal 111 RW Front View CAD Drawing
Royal 111 RW Plan View CAD Drawing
Royal 111 RW Back View CAD Drawing
Maintenance Schedule
Flushometer Parts Maintenance Schedule
Manual Flushometer Maintenance Schedule Brochure
Rough-In Parent
ROYAL 111 RW - Rough-In Parent
Features List
Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use.
All organic rubber has been replaced with synthetic compounds
Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
Optional purple handle provides additional indication of reclaimed water use.
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

ROYAL 111 RW SFSM

By admin , 9 October 2025
Product Code
ROYAL 111 RW SFSM
Product Type
Parent
Date Updated
1772496000
Product Category
Flushometer
Url Slug
royal-111-rw-sfsm
Compliances and Certifications
HPD
LBC Credit
Satisfies LEED Credits
WELL Building Standard
Primary Description
Royal® Sensor Specialty Flushometer
Series Description
Royal® Exposed Sensor Specialty Water Closet Reclaimed Water Flushometer
Product Line
Royal®
Flushometer Installation
Exposed
Flushometer Activation
Sensor Specialty
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Water Closet
Flushometer Specialty
Reclaimed Water
Flushometer Product Line
Royal®
Brochures
Retrofits Brochure
Installation Instruction
Royal Reclaimed Water Flushometer Installation Instructions
EBV-500_550-A Installation Instructions
Repair & Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Reclaimed Water Flushometers Repair and Maintenance Guide
EBV500-EBV550 Repair and Maintenance Guide
BIM Model
Royal 111 RW SFSM BIM Model
CAD Drawing
Royal 111 SFSM RW Front View CAD Drawing
Maintenance Schedule
Flushometer Parts Maintenance Schedule
Rough-In Parent
ROYAL 111 RW SFSM - Rough-In Parent
Features List
Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use.
All organic rubber has been replaced with synthetic compounds
Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
Optional purple handle provides additional indication of reclaimed water use.
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

ROYAL 186 RW

By admin , 9 October 2025
Product Code
ROYAL 186 RW
Product Type
Parent
Date Updated
1773705600
Product Category
Flushometer
Url Slug
royal-186-rw
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
Made in the USA
Satisfies LEED Credits
EPA WaterSense Listed
Primary Description
Royal® Manual Specialty Flushometer
Series Description
Royal® Exposed Manual Specialty Urinal Reclaimed Water Flushometer
Product Line
Royal®
Flushometer Installation
Exposed
Flushometer Activation
Manual Specialty
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Urinal
Flushometer Specialty
Reclaimed Water
Flushometer Product Line
Royal®
Brochures
Retrofits Brochure
Installation Instruction
Royal Reclaimed Water Flushometer Installation Instructions
Repair & Maintenance Guide
Royal Manual Diaphragm Flushometer Repair and Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Transparency Reports
Diaphragm Flushometers HPD
BIM Model
ROYAL 186 RW BIM Model
Maintenance Schedule
Flushometer Parts Maintenance Schedule
Manual Flushometer Maintenance Schedule Brochure
Rough-In Parent
ROYAL 186 RW - Rough-In Parent
Features List
Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use.
All organic rubber has been replaced with synthetic compounds
Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
Optional purple handle provides additional indication of reclaimed water use.
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

ROYAL 186 RW SFSM

By admin , 9 October 2025
Product Code
ROYAL 186 RW SFSM
Product Type
Parent
Date Updated
1772496000
Product Category
Flushometer
Url Slug
royal-186-rw-sfsm
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
Satisfies LEED Credits
EPA WaterSense Listed
Primary Description
Royal® Sensor Specialty Flushometer
Series Description
Royal® Exposed Sensor Specialty Urinal Reclaimed Water Flushometer
Product Line
Royal®
Flushometer Installation
Exposed
Flushometer Activation
Sensor Specialty
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Urinal
Flushometer Specialty
Reclaimed Water
Flushometer Product Line
Royal®
Brochures
Flushometers Brochure
Installation Instruction
Royal Reclaimed Water Flushometer Installation Instructions
EBV-500_550-A Installation Instructions
Repair & Maintenance Guide
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide
Tail Piece Repair and Maintenance Guide
Reclaimed Water Flushometers Repair and Maintenance Guide
EBV500-EBV550 Repair and Maintenance Guide
BIM Model
Royal 186 SFSM BIM Model
CAD Drawing
Royal 186 SFSM RW Front View CAD Drawing
Royal 186 SFSM RW Plan View CAD Drawing
Royal 186 SFSM RW Back View CAD Drawing
Maintenance Schedule
Flushometer Parts Maintenance Schedule
Rough-In Parent
ROYAL 186 RW SFSM - Rough-In Parent
Features List
Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use.
All organic rubber has been replaced with synthetic compounds
Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
Optional purple handle provides additional indication of reclaimed water use.
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
Intro Section
Title
Options to fit your needs for any application
Descripcion

The Sloan Royal Reclaimed Water Flushometer is ideal for new construction or major retrofits with reclaimed water infrastructure.

Cita Content

“Reclaimed water is more aggressive than potable water due to the chemical content of the water. Sloan flushometers use a high copper brass to withstand these harsh conditions, the yellow brass that’s higher in zinc used by most other manufacturers.”

Cita Name
Rolando Zambrano
Cita Info
Sloan Flushometer Product Line Manager
