Product Code
HYB-1000
Product Type
Date Updated
1760313600
Product Category
Url Slug
hyb-1000
Primary Description
Standard Hybrid Urinal
Product Features
Features List
Jetrinse Solution Technology automatically cleans the housing and drain every 72 hours
Virtually eliminates odor and drainline sediment formation that creates clogs
Earns maximum LEED credits and minimal water and sewage costs
Up to 5 times cleaner than conventional flushing urinals
Maximizes cartridge life by eliminating premature changes
IAPMO certified to applicable requirements, ASME A112.19.2, A112.19.19 & A112.1.3
Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Red List Free
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
Title
Brochure
Files Dowloads
Title
Installation Instructions
Files Dowloads
Title
Repair & Maintenance Guide
Title
Sell Sheet
Files Dowloads
General Spec Sheet
Series Description
Vitreous China Hybrid Urinal

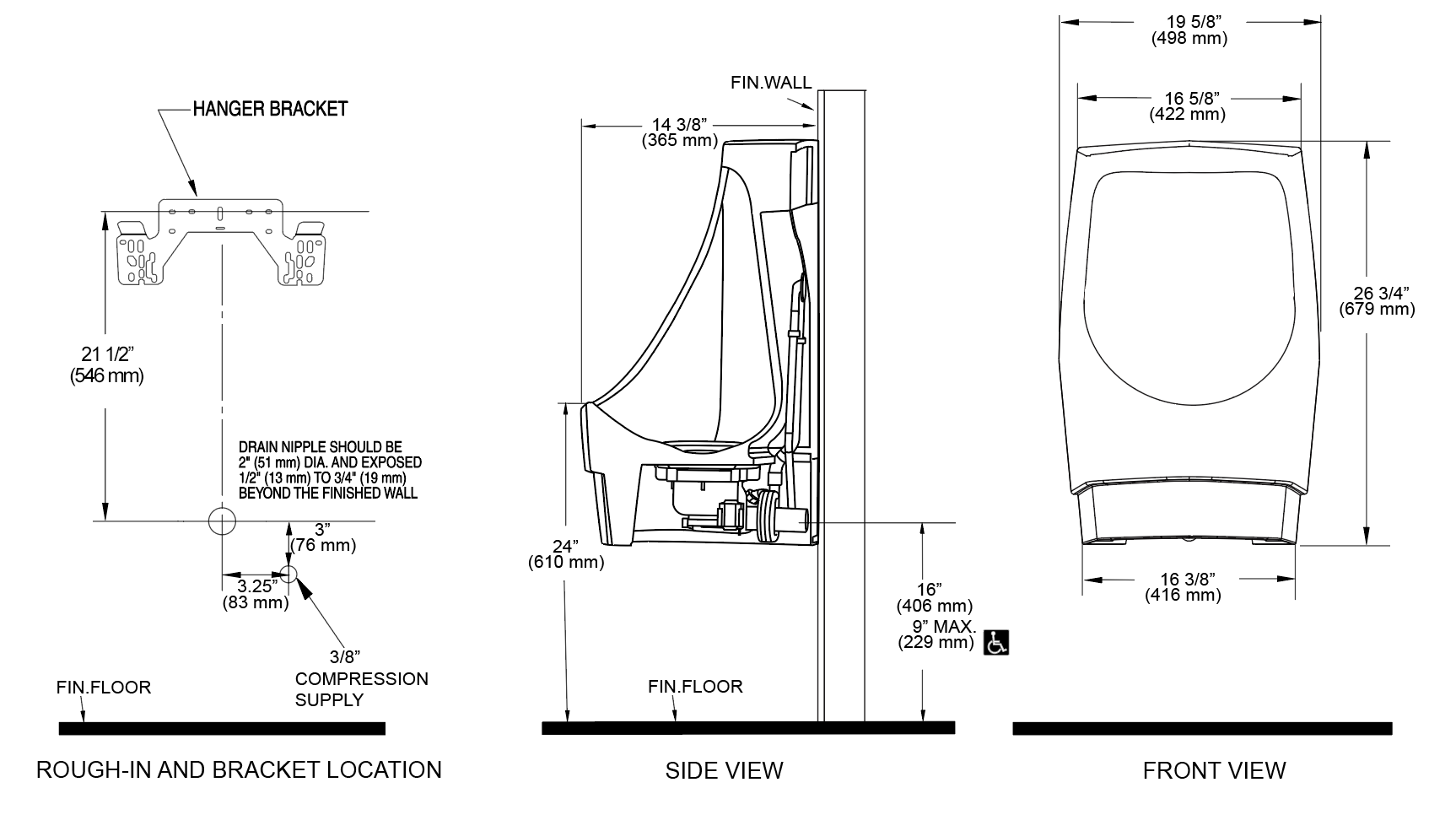

Measure Length
14.38in
Measure Length (mm)
365.00mm
Measure Width
19.63in
Measure Width (mm)
498.00mm
Measure Height
26.75in
Measure Height (mm)
679.00mm
Product Line
Urinal Flush Method
Hybrid
Urinal Type
Standard
Urinal Product Line
Spec Sheet Description
Standard
