Graphite

Finish Image
Sloan Finishes Grafito
Is Featured
1
color
383c3b
By admin , 8 October 2025

MF Thin Frame-18x36-GR

Product Code
32910016
Product Type
Variations
Date Updated
1786665600
Product Category
Mirrors
Url Slug
mf-thin-frame-18x36-gr
Compliances and Certifications
Proposition 65
Satisfies LEED Credits
Imagenes Adicionales

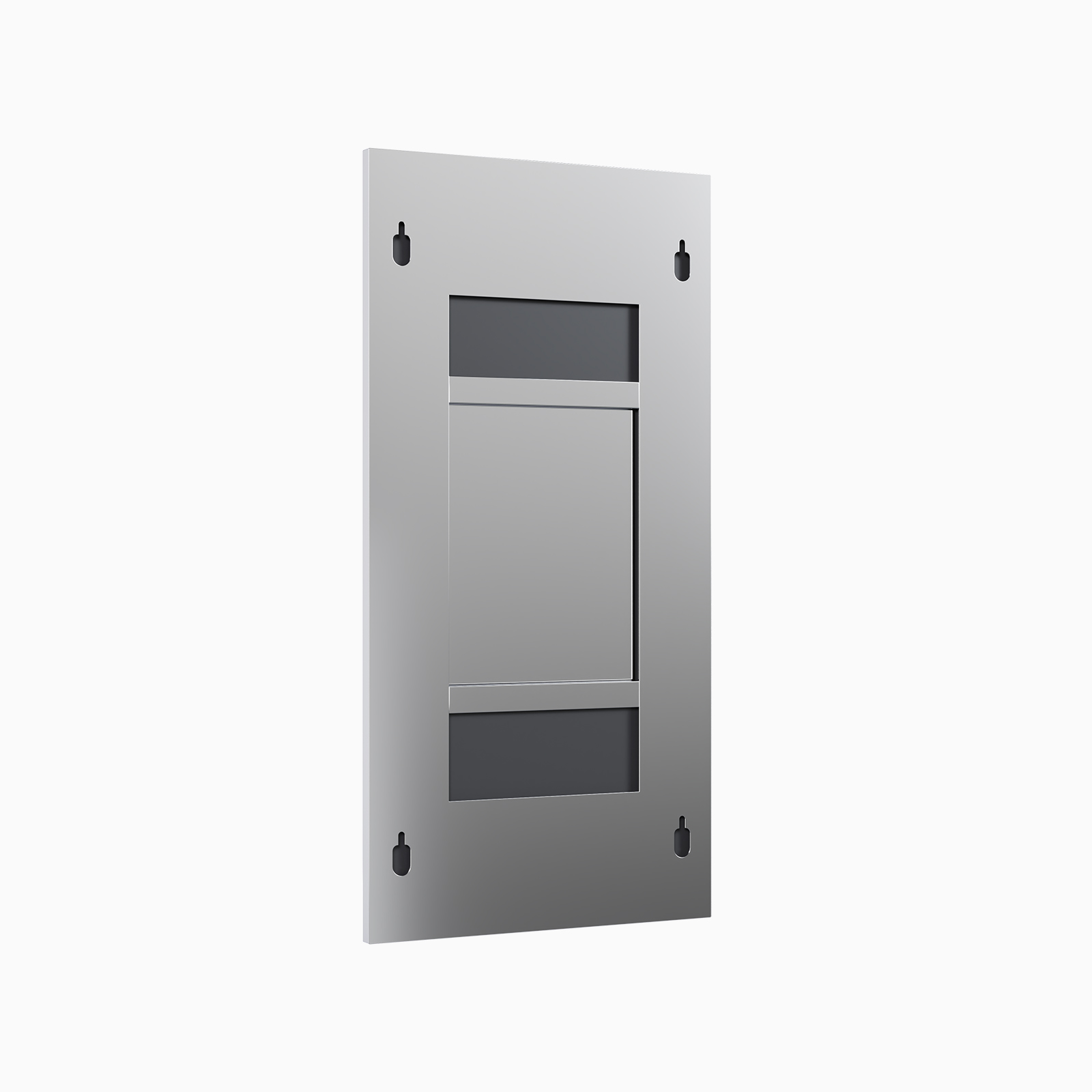

MF Thin Frame-18x36-GR - Imagen adicional 1
Finish
Graphite
Product Line
Sloan Frame Mirrors
Frame Type
Thin Frame
Mirror Size
18" x 36"
Parent
MF Thin Frame
Mirror Product Line
Sloan Frame Mirrors
Spec Sheet Description
18" x 36", Graphite
Recommended Specifications
Sloan MF Thin Frame Mirror shall include the following: vandal- and theft-resistant wall mount and hanger, 22-gauge 304 stainless steel frame, 1/4” frame size in Sloan Graphite finish to match Sloan faucet, soap dispenser, hand dryer, grid strainer, and flushometer, and size of 18” x 36”
By admin , 8 October 2025

ROYAL 111-1.28-GR

Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
1.5"
Supply Pipe
1"
Product Code
3910284
Product Type
Variations
Date Updated
1786665600
Product Category
Flushometer
Url Slug
royal-111-1-28-gr
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
Made in the USA
Proposition 65
Satisfies LEED Credits
Finish
Graphite
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
1.28gpf
Numeric lpf Flushometer Flush Volume
4.80lpf
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 111
Flushometer Product Line
Royal®
Spec Sheet Description
1.28 gpf, Graphite Finish, Fixture Connection Top Spud, Single Flush
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2. Valve Body, Cover, Tailpiece and Control Stop shall have a PVD Graphite finish.
By admin , 8 October 2025

ROYAL 186-0.125-GR

Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
0.75"
Supply Pipe
0.75"
Product Code
3912749
Product Type
Variations
Date Updated
1786665600
Product Category
Flushometer
Url Slug
royal-186-0-125-gr
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
Made in the USA
Proposition 65
Satisfies LEED Credits
EPA WaterSense Listed
Finish
Graphite
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
0.13gpf
Numeric lpf Flushometer Flush Volume
0.50lpf
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 186
Flushometer Product Line
Royal®
Spec Sheet Description
0.125 gpf, Graphite Finish, Fixture Connection Top Spud, Single Flush
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2. Valve Body, Cover, Tailpiece and Control Stop shall have a PVD Graphite finish.
By admin , 8 October 2025

ROYAL 186 ESS-0.5-GR-TMO-HW-24V

Control Stop
3/4"
Override
True Mechanical
Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
0.75"
Supply Pipe
0.75"
Voltage
24V
Product Code
3452666
Product Type
Variations
Date Updated
1786665600
Product Category
Flushometer
Url Slug
royal-186-ess-0-5-gr-tmo-hw-24v
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
Proposition 65
UL Certified
EPA WaterSense Listed
Finish
Graphite
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
0.50gpf
Numeric lpf Flushometer Flush Volume
1.90lpf
Flushometer Power Type
Hardwired
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 186 ESS
Flushometer Product Line
Royal®
Spec Sheet Description
0.5 gpf, Graphite Finish, Fixture Connection Top Spud, Single Flush, 3/4" Control Stop, True Mechanical Override, Hardwired, Sensor-Operated, 24V
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2. Valve Body, Cover, Tailpiece and Control Stop shall have a PVD Graphite finish.
By admin , 8 October 2025

ROYAL 111 ESS TMO-1.28-GR-TMO-HW-24V

Control Stop
1"
Override
True Mechanical
Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
1.5"
Supply Pipe
1"
Voltage
24V
Product Code
3450026
Product Type
Variations
Date Updated
1787875200
Product Category
Flushometer
Url Slug
royal-111-ess-tmo-1-28-gr-tmo-hw-24v
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
Proposition 65
Satisfies LEED Credits
UL Certified
Finish
Graphite
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
1.28gpf
Numeric lpf Flushometer Flush Volume
4.80lpf
Flushometer Power Type
Hardwired
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 111 ESS
Flushometer Product Line
Royal®
Spec Sheet Description
1.28 gpf, Graphite Finish, Fixture Connection Top Spud, Single Flush, 1" Control Stop, True Mechanical Override, Hardwired, Sensor-Operated, 24V
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2. Valve Body, Cover, Tailpiece and Control Stop shall have a PVD Graphite finish.
By admin , 8 October 2025

EHD-501-GR-HEPA

Hand Dryer Amperage
11.3A-12.2A
Hand Dryer Voltage
110/120V
Hand Dryer Wattage
1500 Watts
Product Code
3366121
Product Type
Variations
Date Updated
1785283200
Product Category
Hand Dryer
Url Slug
ehd-501-gr-hepa
Compliances and Certifications
BAA Compliant
cULus Certified
Proposition 65
WELL Building Standard
Measure Depth
13.00in
Measure Depth (mm)
330.00mm
Measure Width
12.00in
Measure Width (mm)
305.00mm
Measure Height
9.50in
Measure Height (mm)
241.00mm
Measure Weight (Kg)
6.00Kg
Measure Weight
13.00Lb
Finish
Graphite
Product Line
Sloan® XLERATOR®
Parent
EHD-501
Hand Dryer Product Line
Sloan® XLERATOR®
Spec Sheet Description
EHD-501, HEPA, 110/120V
Recommended Specifications
Sloan Xlerator Sensor Operated Hand Dryer. 120V/110V Graphite Finish.
Graphite
