NSF-372 Lead Free

Lead-free standard that ensures the materials of the drinking water system contain less than 0.25% lead

image_cc
NSF-372 Lead Free
title_page
NSF-372 Lead Free
Type Of CC
Cumplimiento
By Anonymous (not verified) , 10 October 2025

DRS120

Bottle Filler Mounting
On-wall
Product Code
DRS120
Product Type
Parent
Date Updated
1785715200
Product Category
Bottle Filler
Url Slug
drs120
Compliances and Certifications
FCC Compliant
Michigan Filter First
Filter listed to NSF-42, NSF-53, and NSF-401
NSF-372 Lead Free
Primary Description
DropSpot™ Bottle Filler & Water Cooler
Series Description
DropSpot™ On-wall Bottle Filler with Bi-level Cooler
Imagenes Adicionales

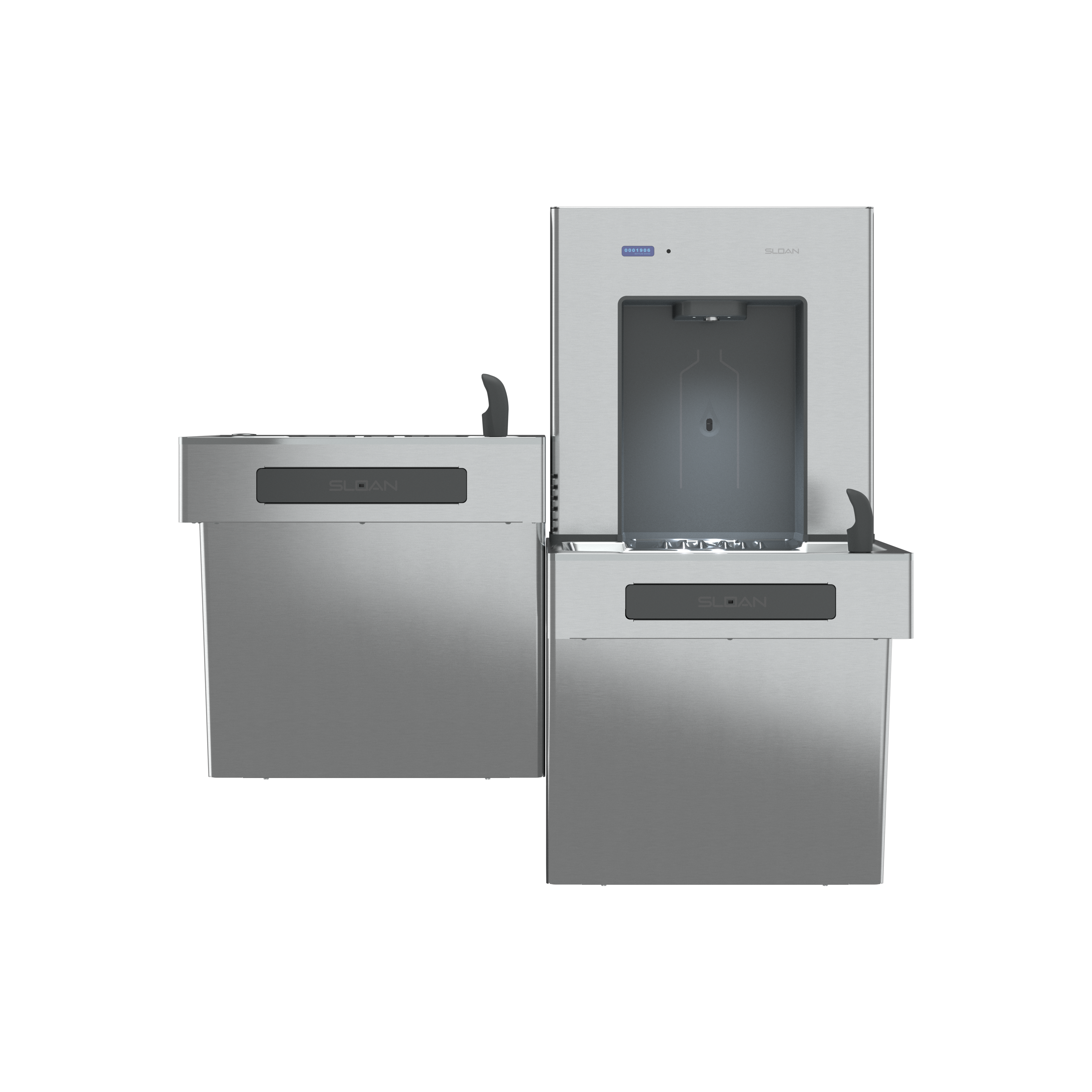

DRS120 - Imagen adicional 1

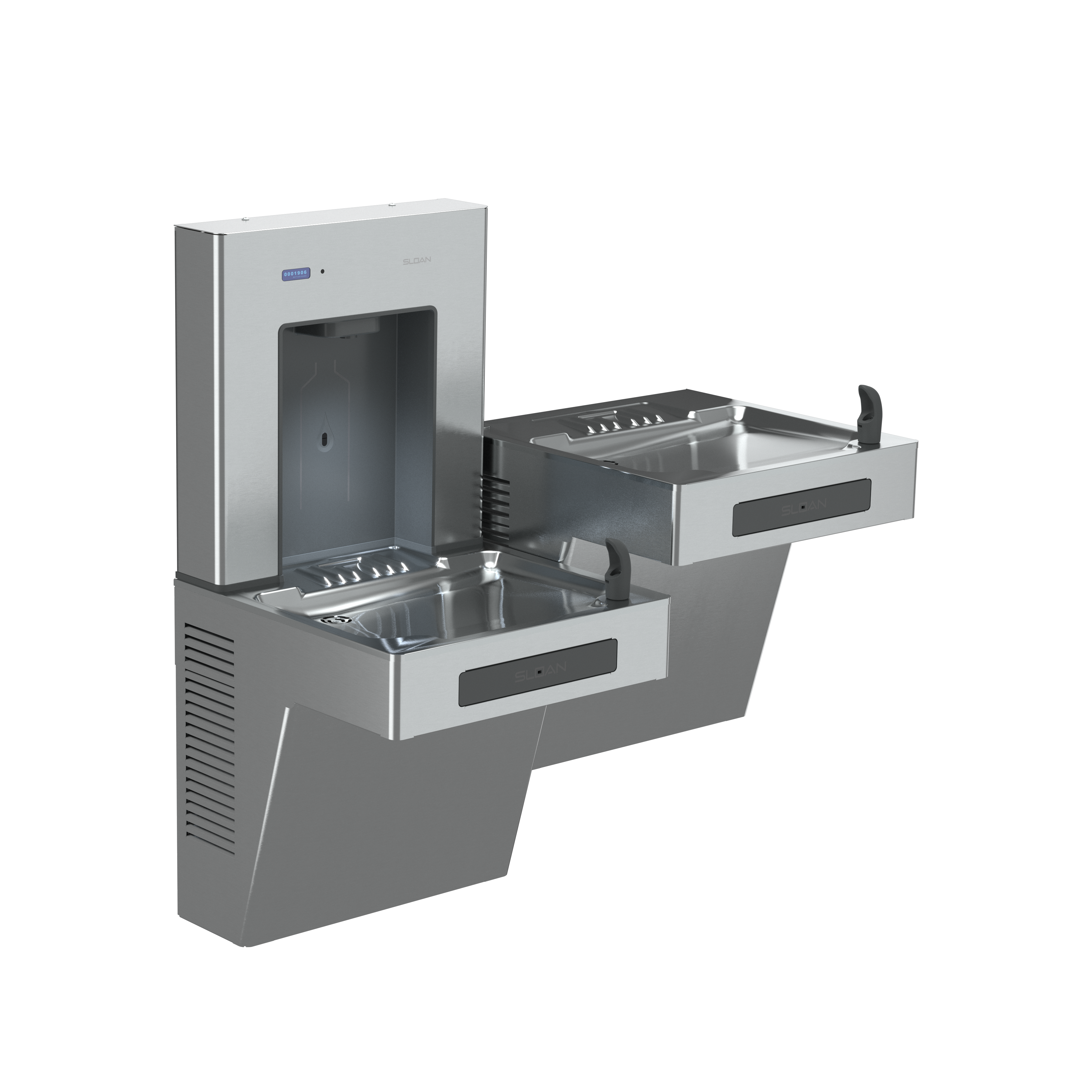

DRS120 - Imagen adicional 2

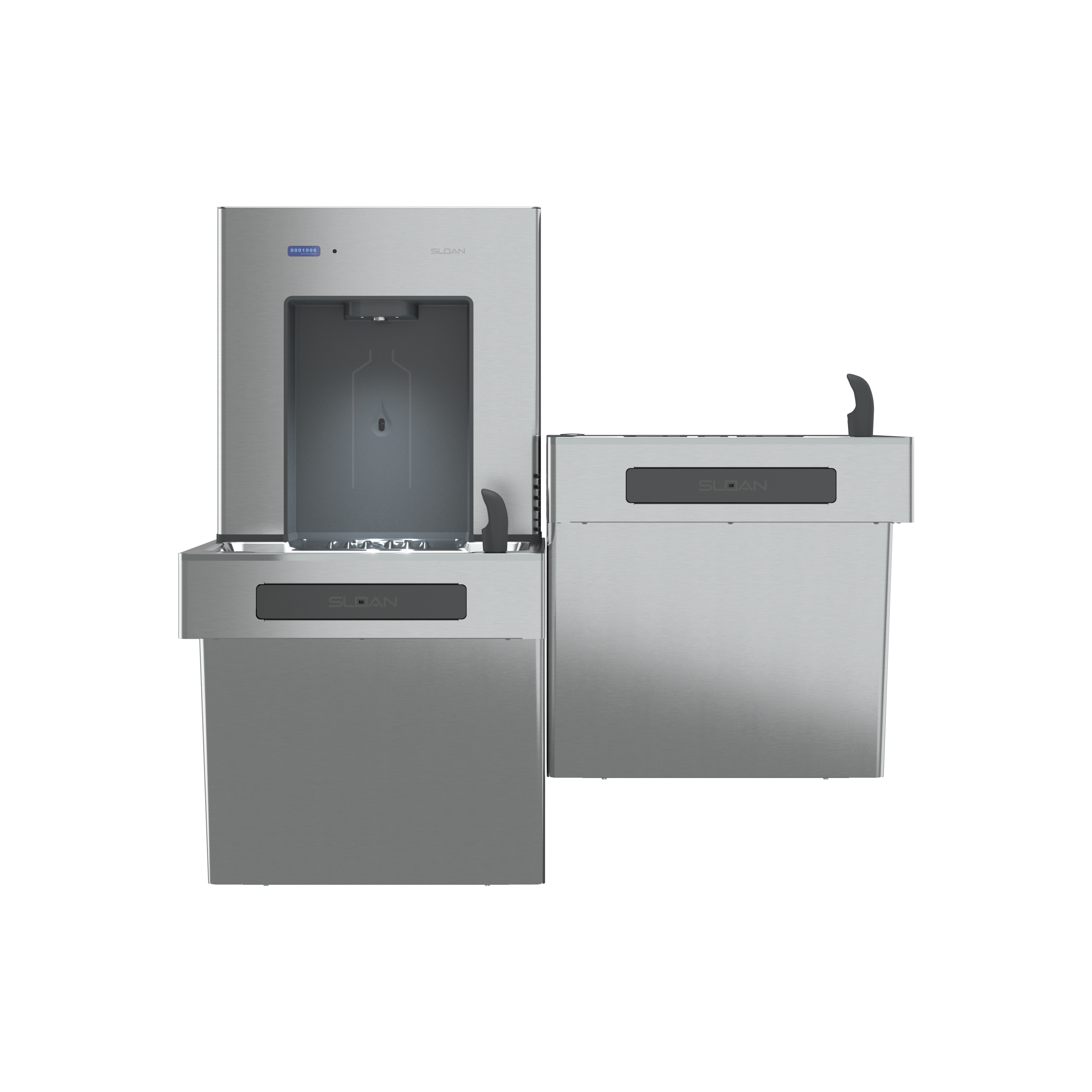

DRS120 - Imagen adicional 3
Informational Videos
Sloan DropSpot™ Bottle Fillers & Water Coolers and Now at Wrigley Field
Sloan – Company Overview
Product Line
DropSpot™
Bottle Filler Configuration
Bottle Filler with Bi-level Cooler
Bottle Filler Product Line
DropSpot™
Brochures
DropSpot Bottle Fillers and Water Coolers Brochure
Installation Instruction
DRS120_DRS125 Refrigerated Bi-level Cooler Installation Instructions
DRS120_DRS125 Unrefrigerated Bi-level Cooler Installation Instructions
FA3000 DRS110_115_120_125 Drop Down Filter Assembly Installation Instructions
FC3000 Replacement Water Filter Cartridge Installation Instructions
Repair & Maintenance Guide
DropSpot™ Care and Cleaning Guide
Transparency Reports
DropSpot™ Bottle Fillers EPD
BIM Model
DRS120 BIM Model
Rough-In Parent

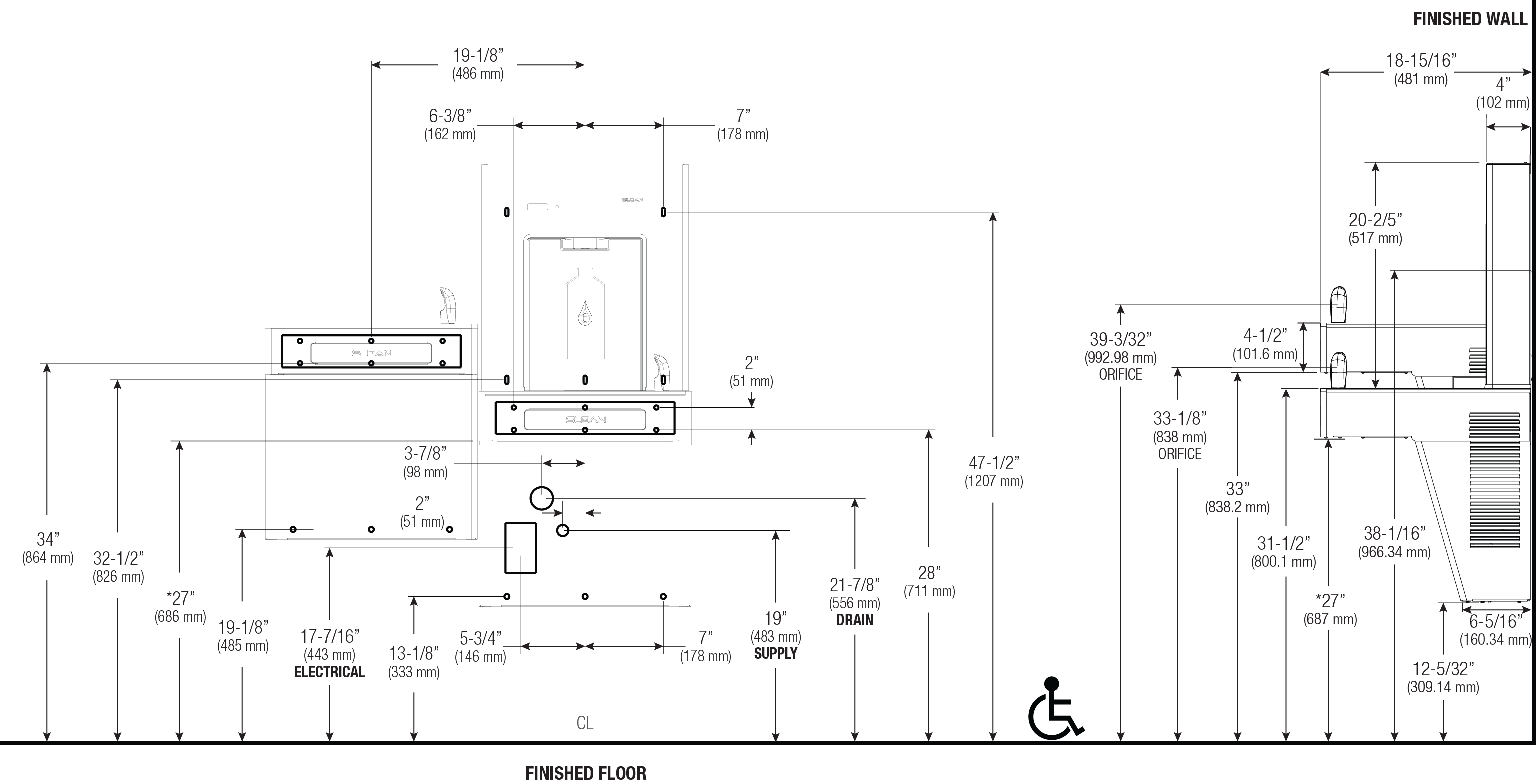

DRS120 - Rough-In Parent
Features Intro
Sloan Bi-Level Bottle Filler Drinking Fountain Combo available in both Stainless and Black, filtered and unfiltered, refrigerated and unrefrigerated options.
Features List
Touch-free sensor operated bottle filler with 20 second max run time, Up to 1.2 gpm fill rate for quick fill with laminar flow
Versatile mounting style allows for left-high or right-high installation, ADA compliant when installed in accordance with applicable requirements
All models IoT compatible with subscription to SC Argus® Pro SaaS - Remotely monitor water usage and receive filter replacement notifications, helping simplify maintenance across one or multiple facilities
Schedule and document automated line flushes through SC Argus Pro to support water quality programs and reduce manual maintenance
Backlit LED light that illuminates bottle filling area when sensor is activated, Soft ambient white light to indicate filter status
Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking
Rough-in matches other manufacturers' recommended rough-in locations for easy replacement
Antimicrobial bubbler, push bar, and other components
Drop-down door assembly provides easy access to filter
Patent pending push bar activates at any touch point and provides easy access for cartridge replacement
Optional cane apron available for bi-level units to assist with ADA compliance (part 33830030, 33830031). Sold separately
By Anonymous (not verified) , 10 October 2025

DRS110

Bottle Filler Mounting
On-wall
Product Code
DRS110
Product Type
Parent
Date Updated
1785715200
Product Category
Bottle Filler
Url Slug
drs110
Compliances and Certifications
FCC Compliant
Michigan Filter First
Filter listed to NSF-42, NSF-53, and NSF-401
NSF-372 Lead Free
Primary Description
DropSpot™ Bottle Filler & Water Cooler
Series Description
DropSpot™ On-wall Bottle Filler with Single-level Cooler
Imagenes Adicionales

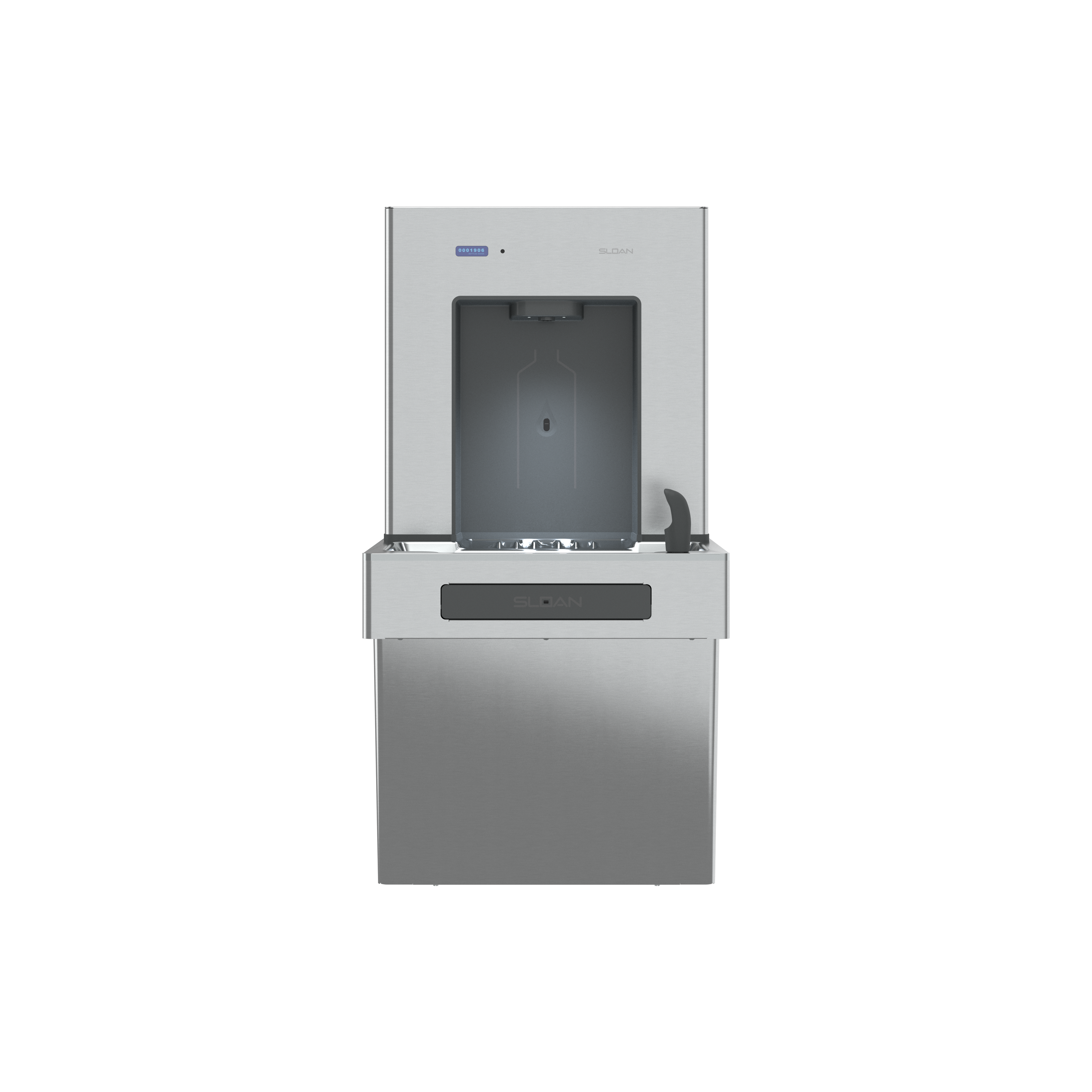

DRS110 - Imagen adicional 1
Informational Videos
Sloan DropSpot™ Bottle Fillers & Water Coolers and Now at Wrigley Field
Product Line
DropSpot™
Bottle Filler Configuration
Bottle Filler with Single-level Cooler
Bottle Filler Product Line
DropSpot™
Brochures
DropSpot Bottle Fillers and Water Coolers Brochure
Installation Instruction
DRS110_DRS115 Refrigerated Single Level Cooler Installation Instructions
DRS110_DRS115 Unrefrigerated Single Level Cooler Installation Instructions
FA3000 DRS110_115_120_125 Drop Down Filter Assembly Installation Instructions
FC3000 Replacement Water Filter Cartridge Installation Instructions
Transparency Reports
DropSpot™ Bottle Fillers EPD
BIM Model
DRS110 BIM Model
Rough-In Parent

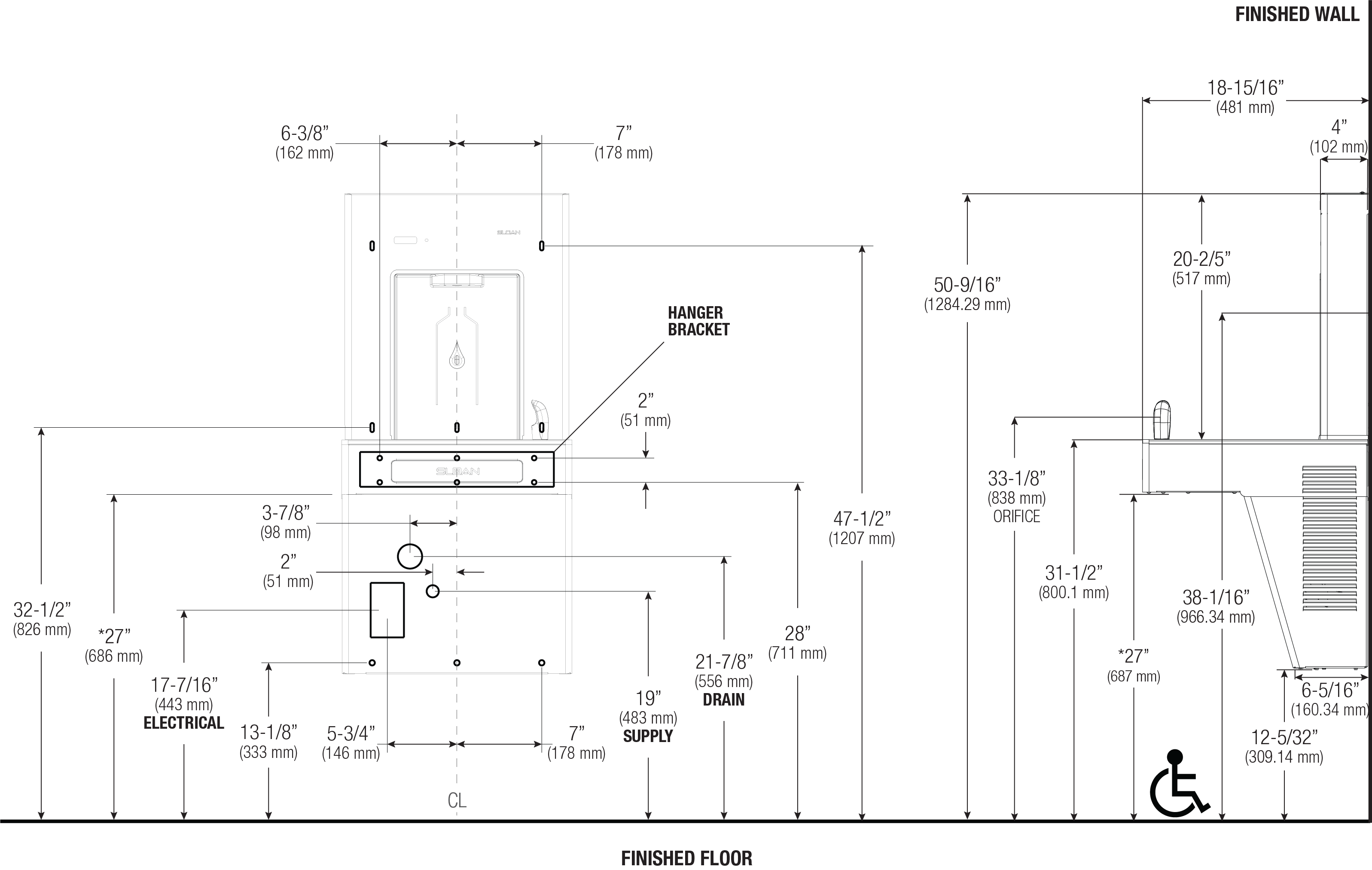

DRS110 - Rough-In Parent
Features Intro
Sloan Single Station Bottle Filler Drinking Fountain Combo available in both Stainless and Black, filtered and unfiltered, refrigerated and unrefrigerated options.
Features List
Touch-free sensor operated bottle filler with 20 second max run time, Up to 1.2 gpm fill rate for quick fill with laminar flow
All models SC Argus® Pro compatible for remote water monitoring, filter alerts, automated line-flush scheduling, and documentation across one or multiple facilities; subscription required
ADA compliant when installed properly
Backlit LED light that illuminates bottle filling area when sensor is activated, Soft ambient white light to indicate filter status
Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as ounces of water dispensed
Rough-in matches other manufacturers' recommended rough-in locations for easy replacement
Antimicrobial bubbler, push bar, and other components
Drop-down door assembly provides easy access to filter
Patent pending push bar designed to be activated at any touch point and to provide easy access for cartridge replacement
By Anonymous (not verified) , 10 October 2025

DRS100

Bottle Filler Mounting
On-wall
Product Code
DRS100
Product Type
Parent
Date Updated
1785888000
Product Category
Bottle Filler
Url Slug
drs100
Compliances and Certifications
FCC Compliant
Michigan Filter First
Filter listed to NSF-42, NSF-53, and NSF-401
NSF-372 Lead Free
Primary Description
DropSpot™ Bottle Filler & Water Cooler
Series Description
DropSpot™ On-wall Bottle Filler
Imagenes Adicionales

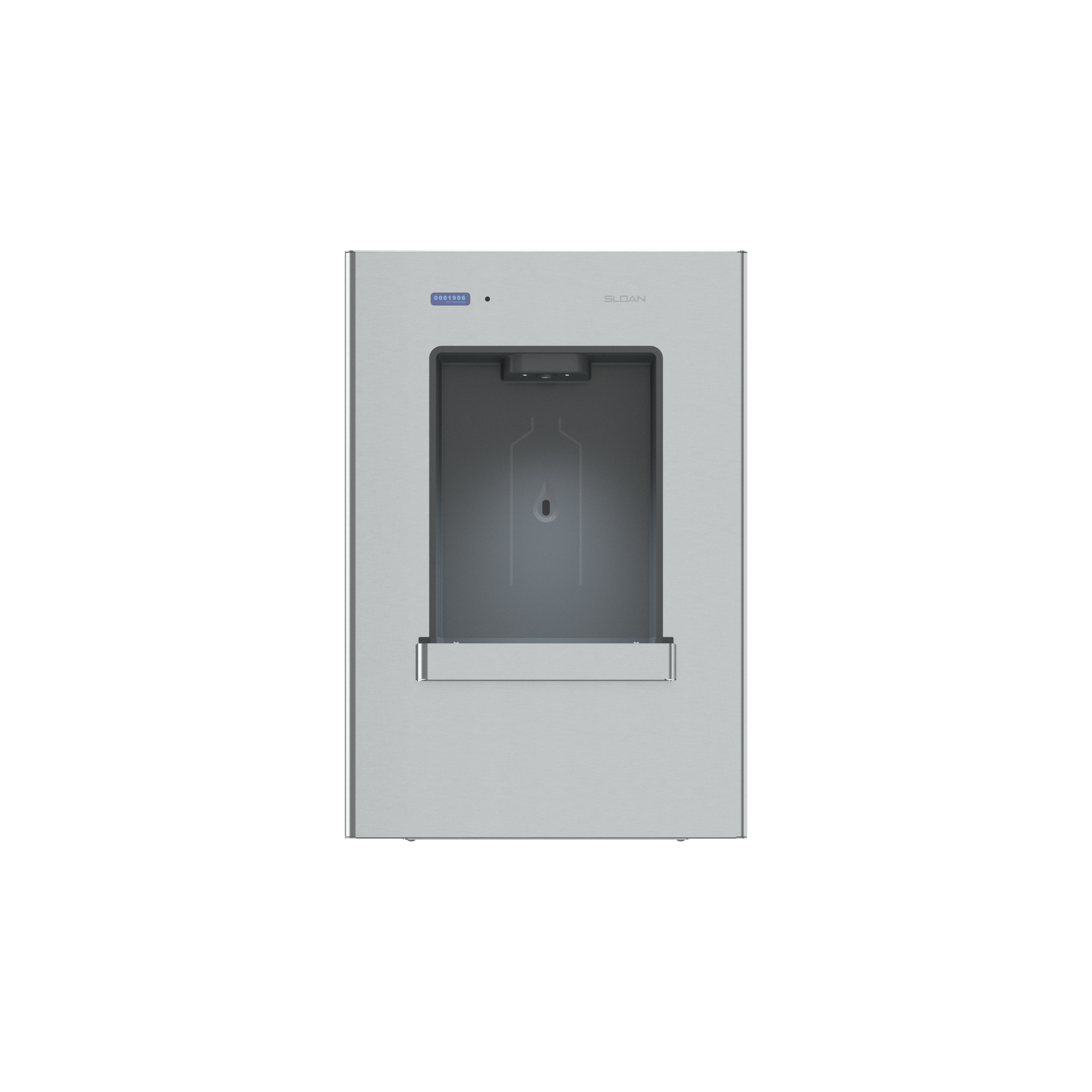

DRS100 - Imagen adicional 1
Informational Videos
Sloan DropSpot™ Bottle Fillers & Water Coolers and Now at Wrigley Field
Product Line
DropSpot™
Bottle Filler Configuration
Bottle Filler
Bottle Filler Product Line
DropSpot™
Brochures
DropSpot Bottle Fillers and Water Coolers Brochure
Installation Instruction
DRS100-REF Stand Alone Refrigerated Bottle Filler Installation Instructions
DRS100-UNREF Stand Alone Unrefrigerated Bottle Filler Installation Instructions
FA3000-DRS100 Filter Assembly Installation Instructions
RC8000 Remote Chiller for DRS-100 Bottle Filler Installation Instructions
FC3000 Replacement Water Filter Cartridge Installation Instructions
BIM Model
DRS100 BIM Model
Features Intro
Sloan On-wall Bottle Filler is available in both Stainless and Black, filtered and unfiltered, refrigerated and unrefrigerated options.
Features List
Touch-free sensor operated bottle filler with 20 second max run time
All models IoT compatible with subscription to SC Argus® Pro SaaS - Remotely monitor water usage and receive filter replacement notifications, helping simplify maintenance across one or multiple facilities
Schedule and document automated line flushes through SC Argus Pro to support water quality programs and reduce manual maintenance
ADA compliant when installed in accordance with applicable requirements
Laminar flow water supply provides up to 1.2 gpm fill rate for quick fill
Swing-open cabinet provides easy access to filter
Soft ambient white light to indicate filter status
Backlit LED light that illuminates bottle filling area when sensor is activated
Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking
Rough-in matches other manufacturers' recommended rough-in locations for easy replacement
Prop 65 compliant
By admin , 9 October 2025

SF-2800

Product Code
SF-2800
Product Type
Parent
Date Updated
1785283200
Product Category
Faucet
Url Slug
sf-2800
Compliances and Certifications
ADA Compliant
CalGreen Compliant
CEC Compliant
NSF-372 Lead Free
Proposition 65
Satisfies LEED Credits
UPC Low Lead Certified
WELL Building Standard
Primary Description
Standard Sensor Faucet
Series Description
Standard Hardwired-Powered Wall-Mounted Wall Body Faucet
Imagenes Adicionales
SF-2800 - Imagen adicional 1
SF-2800 - Imagen adicional 2
SF-2800 - Imagen adicional 3
SF-2800 - Imagen adicional 4
SF-2800 - Imagen adicional 5
SF-2800 - Imagen adicional 6
SF-2800 - Imagen adicional 7
Product Line
Sloan®
Product Family
Sloan Faucet
Body Type
Wall
Spout Design
2800/2850 Wall
Faucet Mounting Style
Wall-Mounted
Faucet Power Type
Hardwired
Faucet Mounting Type
Wall
Faucet Product Line
Sloan®
Brochures
Faucet and Soap Dispenser Brochure
Installation Instruction
SF Series Installation Instructions
SF Series (FR) Installation Instructions
SF Series (SP) Installation Instructions
SFP 35-A Installation Instructions
Repair & Maintenance Guide
SF 2800, 2850 Repair and Maintenance Guide
Rough-In Parent
SF-2800 - Rough-In Parent
Features Intro
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Brass Wall-Mounted Hand Washing Faucet with the following features:
Features List
Adjustable Infrared Sensor Range
36” (914 mm) Long Sensor Cable
24” (610 mm) Long Flex Hose
Filtered Solenoid Valve with serviceable Strainer Filter
Includes Four (4) AA-size Batteries
Includes appropriate Mounting Hardware
1 Year limited warranty
By admin , 8 October 2025

SF-2800-PLG-TEE-CP-0.5GPM-MLM-FCT

Factory Default Gallons per Cycle
0.25 gpc
Factory Default Timeout
30s
Faucet Battery Life
2 years 8,000 cycles/month
Faucet Sensor Type
Infrared
Product Code
33621018
Product Type
Variations
Date Updated
1784592000
Product Category
Faucet
Url Slug
sf-2800-plg-tee-cp-0-5gpm-mlm-fct
Compliances and Certifications
ADA Compliant
CalGreen Compliant
CEC Compliant
NSF-372 Lead Free
Proposition 65
UPC Low Lead Certified
WELL Building Standard
Finish
Polished Chrome
Product Line
Sloan®
Faucet Flow Rate gpm
0.50 gpm
Numeric lpm Faucet Flow Rate
1.90lpm
Faucet Power Supply
Plug Adapter
Temperature Mixer
Camiseta Back-Check
Faucet Mounting Type
Single Hole
Spout Type
Pedestal
Spray Type
Multi-Laminar
Faucet Special Features
Battery Backup
Parent
SF-2800
Faucet Product Line
Sloan®
Spec Sheet Description
Plug Adapter Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
Recommended Specifications
Faucet shall include cast brass body, plug adapter, Alkaline batteries for backup power and 0.5gpm multilaminar spray head.
By admin , 8 October 2025

SF-2800-PLG-TEE-CP-0.35GPM-MLM-FCT

Factory Default Gallons per Cycle
0.175 gpc
Factory Default Timeout
30s
Faucet Battery Life
2 years 8,000 cycles/month
Faucet Sensor Type
Infrared
Product Code
33621016
Product Type
Variations
Date Updated
1784592000
Product Category
Faucet
Url Slug
sf-2800-plg-tee-cp-0-35gpm-mlm-fct
Compliances and Certifications
ADA Compliant
CalGreen Compliant
CEC Compliant
NSF-372 Lead Free
Proposition 65
Satisfies LEED Credits
UPC Low Lead Certified
WELL Building Standard
Finish
Polished Chrome
Product Line
Sloan®
Faucet Flow Rate gpm
0.35 gpm
Numeric lpm Faucet Flow Rate
1.30lpm
Faucet Power Supply
Plug Adapter
Temperature Mixer
Camiseta Back-Check
Faucet Mounting Type
Single Hole
Spout Type
Pedestal
Spray Type
Multi-Laminar
Faucet Special Features
Battery Backup
Parent
SF-2800
Faucet Product Line
Sloan®
Spec Sheet Description
Plug Adapter Power Supply, Back-Check Tee, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor
Recommended Specifications
Faucet shall include cast brass body, plug adapter, Alkaline batteries for backup power and 0.35gpm multilaminar spray head.
By admin , 8 October 2025

DRS120-UNFIL-REF-BLK

Full Load Amps
5.3
Bottle Filler Water Flow Rate
Up to 1.2 gpm
Bubbler Water Flow Rate
0.3 gpm
Chilling Capacity
8.0 gph
Installation Location
Indoor
Product Code
33820027
Product Type
Variations
Date Updated
1786665600
Product Category
Bottle Filler
Url Slug
drs120-unfil-ref-blk
Compliances and Certifications
cULus Certified
cUPC Certified
FCC Compliant
NSF-372 Lead Free
Proposition 65
Measure Length
19.00in
Measure Length (mm)
483.00mm
Measure Width
38.00in
Measure Width (mm)
965.00mm
Measure Height
39.60in
Measure Height (mm)
1006.00mm
Measure Weight (Kg)
50.00Kg
Measure Weight
110.00Lb
Finish
Black
Product Line
DropSpot™
Number of Stations Served
2
Refrigeration Option
Refrigerated
Filter Option
Unfiltered
Parent
DRS120
Bottle Filler Product Line
DropSpot™
Spec Sheet Description
Unfiltered, Refrigerated, Black
Recommended Specifications
Sloan's DropSpot™ On-wall Bottle Filler with Bi-level Cooler Unfiltered Refrigerated black powder coat. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Unit shall be activated from an antimicrobial front pushbar using less than 5 pounds of force. Bubbler shall deliver a 0.3 gpm flow. Basin and cabinet shall be constructed from galvannealed steel with black powder coat finish. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be black galvannealed steel. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Push bar shall be activated by any touch point on the bar and shall be opened by Sloan access key.
By admin , 8 October 2025

DRS120-UNFIL-REF-SS

Full Load Amps
5.3
Bottle Filler Water Flow Rate
Up to 1.2 gpm
Bubbler Water Flow Rate
0.3 gpm
Chilling Capacity
8.0 gph
Installation Location
Indoor
Product Code
33820003
Product Type
Variations
Date Updated
1786665600
Product Category
Bottle Filler
Url Slug
drs120-unfil-ref-ss
Compliances and Certifications
cULus Certified
cUPC Certified
FCC Compliant
NSF-372 Lead Free
Proposition 65
Measure Length
19.00in
Measure Length (mm)
483.00mm
Measure Width
38.00in
Measure Width (mm)
965.00mm
Measure Height
39.60in
Measure Height (mm)
1006.00mm
Measure Weight (Kg)
49.00Kg
Measure Weight
108.00Lb
Finish
304 Stainless Steel
Product Line
DropSpot™
Number of Stations Served
2
Refrigeration Option
Refrigerated
Filter Option
Unfiltered
Parent
DRS120
Bottle Filler Product Line
DropSpot™
Spec Sheet Description
Unfiltered, Refrigerated, 304 Stainless Steel
Recommended Specifications
Sloan's DropSpot™ On-wall Bottle Filler with Bi-level Cooler Unfiltered Refrigerated Stainless. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Unit shall be activated from an antimicrobial front pushbar using less than 5 pounds of force. Bubbler shall deliver a 0.3 gpm flow. Basin and cabinet shall be constructed from 304 stainless steel with satin finish. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be stainless steel with satin finish. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Push bar shall be activated by any touch point on the bar and shall be opened by Sloan access key.
By admin , 8 October 2025

DRS120-FIL-REF-BLK

Full Load Amps
5.3
Bottle Filler Water Flow Rate
Up to 1.2 gpm
Bubbler Water Flow Rate
0.3 gpm
Chilling Capacity
8.0 gph
Installation Location
Indoor
Product Code
33820030
Product Type
Variations
Date Updated
1786665600
Product Category
Bottle Filler
Url Slug
drs120-fil-ref-blk
Compliances and Certifications
cULus Certified
cUPC Certified
FCC Compliant
Michigan Filter First
Filter listed to NSF-42, NSF-53, and NSF-401
NSF-372 Lead Free
NSF-401
Proposition 65
Measure Length
19.00in
Measure Length (mm)
483.00mm
Measure Width
38.00in
Measure Width (mm)
965.00mm
Measure Height
39.60in
Measure Height (mm)
1006.00mm
Measure Weight (Kg)
51.00Kg
Measure Weight
113.00Lb
Finish
Black
Product Line
DropSpot™
Number of Stations Served
2
Refrigeration Option
Refrigerated
Filter Option
Filtered
Parent
DRS120
Bottle Filler Product Line
DropSpot™
Spec Sheet Description
Filtered, Refrigerated, Black
Recommended Specifications
Sloan's DropSpot™ On-wall Bottle Filler with Bi-level Cooler Filtered Refrigerated black powder coat. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Unit shall be activated from an antimicrobial front pushbar using less than 5 pounds of force. Bubbler shall deliver a 0.3 gpm flow. Basin and cabinet shall be constructed from galvannealed steel with black powder coat finish. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. White light indicates the water filter status. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be black galvannealed steel. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Push bar shall be activated by any touch point on the bar and shall be opened by Sloan access key. Filter drop-down assembly shall be opened by Sloan access key. Filter used in the unit shall have capacity of 3000 gallons at a minimum, and shall reduce Total PFAS, lead, microplastics, cysts, Particulates Class 1, and chlorine.
By admin , 8 October 2025

DRS120-FIL-REF-SS

Full Load Amps
5.3
Bottle Filler Water Flow Rate
Up to 1.2 gpm
Bubbler Water Flow Rate
0.3 gpm
Chilling Capacity
8.0 gph
Installation Location
Indoor
Product Code
33820006
Product Type
Variations
Date Updated
1786665600
Product Category
Bottle Filler
Url Slug
drs120-fil-ref-ss
Compliances and Certifications
cULus Certified
cUPC Certified
FCC Compliant
Michigan Filter First
Filter listed to NSF-42, NSF-53, and NSF-401
NSF-372 Lead Free
NSF-401
Proposition 65
Measure Length
19.00in
Measure Length (mm)
483.00mm
Measure Width
38.00in
Measure Width (mm)
965.00mm
Measure Height
39.60in
Measure Height (mm)
1006.00mm
Measure Weight (Kg)
51.00Kg
Measure Weight
112.00Lb
Finish
304 Stainless Steel
Product Line
DropSpot™
Number of Stations Served
2
Refrigeration Option
Refrigerated
Filter Option
Filtered
Parent
DRS120
Bottle Filler Product Line
DropSpot™
Spec Sheet Description
Filtered, Refrigerated, 304 Stainless Steel
Recommended Specifications
Sloan's DropSpot™ On-wall Bottle Filler with Bi-level Cooler Filtered Refrigerated Stainless. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Unit shall be activated from an antimicrobial front pushbar using less than 5 pounds of force. Bubbler shall deliver a 0.3 gpm flow. Basin and cabinet shall be constructed from 304 stainless steel with satin finish. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. White light indicates the water filter status. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be stainless steel. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Push bar shall be activated by any touch point on the bar and shall be opened by Sloan access key. Filter drop-down assembly shall be opened by Sloan access key. Filter used in the unit shall have capacity of 3000 gallons at a minimum, and shall reduce Total PFAS, lead, microplastics, cysts, Particulates Class 1, and chlorine.
NSF-372 Lead Free
