BABAA Compliant

Fixed volume piston with filtered O-ring bypass

Front access wall plate requires no rear access plumbing chase

ADA compliant push button

Vandal resistant wall plate

Adjustable flush connection

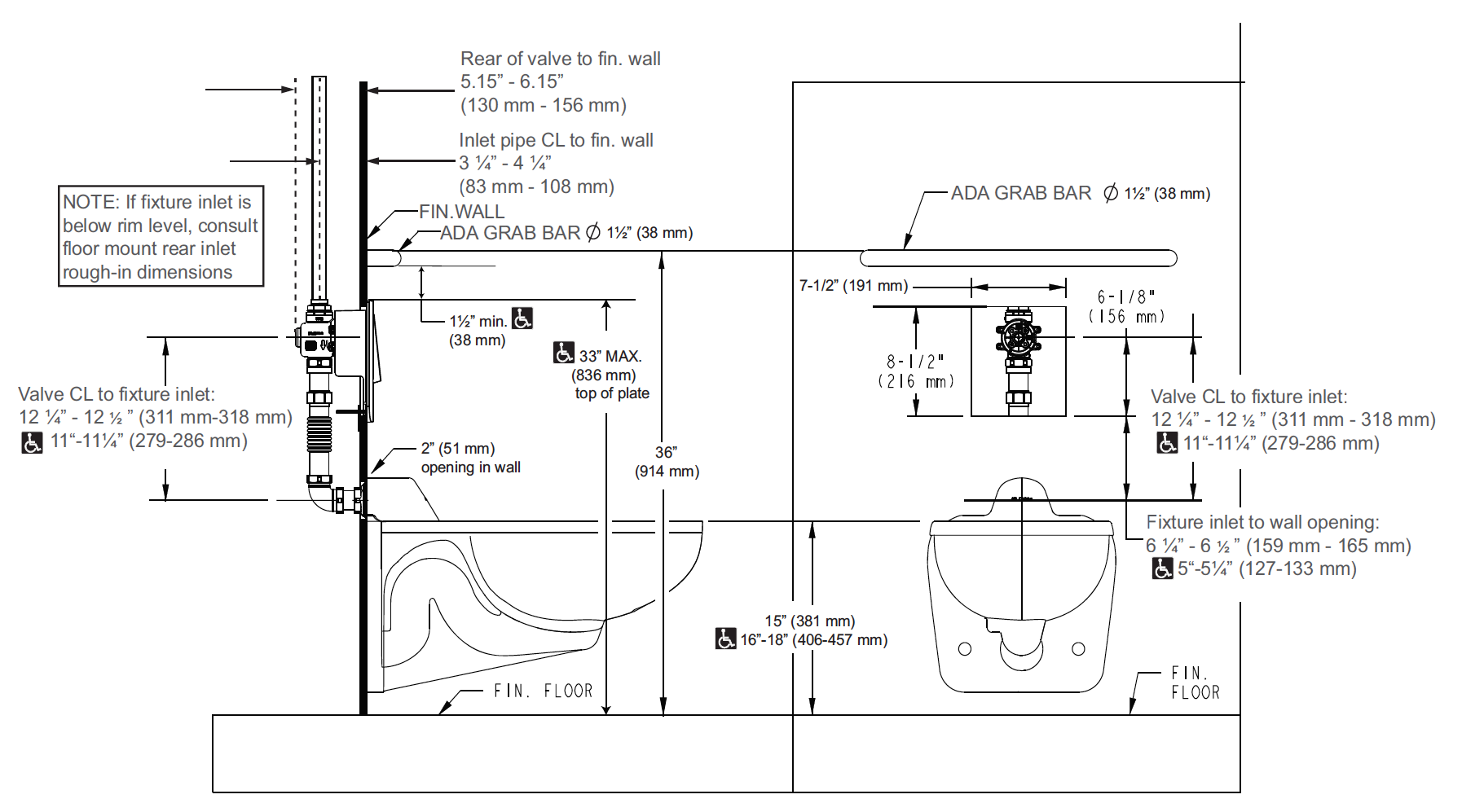

8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Flush volumes start at 1.28 gpf/4.8 Lpf for greater water savings

Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Fixed volume piston with filtered O-ring bypass

Front access wall plate requires no rear access plumbing chase

ADA compliant push button

Vandal resistant wall plate

Adjustable flush connection

8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Flush volumes start as low as 1.28 gpf/4.8 Lpf

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Integrity of the product is maintained with the vandal-resistant stop cap

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece to accommodate different height requirements

High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Fixed volume piston with filtered O-ring bypass

Front access wall plate requires no rear access plumbing chase

Sensor activated, hands-free operation

Battery operated with hardwired option

Electronic override button

Low battery indicator light

Vandal resistant wall plate

Adjustable flush connection

8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension

Flush volumes start as low as a pint of water

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037
