Sloan XLERATOR®

By Anonymous (not verified) , 18 October 2025
Product Code
HEPA Filter
Product Type
Date Updated
1791504000
Product Category
Url Slug
hepa-filter
Compliances and Certifications
Primary Description
Sloan XLERATOR® Accessory
Series Description
Hand Dryer HEPA Filter Replacement
Product Line
Accessory Product Type
Secador de Manos
Accessory Sub Type
Filtro de Aire
Accessory Product Line
Features List
Replacement Filter for Hand Dryers with HEPA filters
HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air
Depth 3.125 in x Height 2.125 in x Width 7.75 in
By admin , 9 October 2025
Product Code
HEPA Retrofit Kit
Product Type
Date Updated
1791504000
Product Category
Url Slug
hepa-retrofit-kit
Compliances and Certifications
Primary Description
Sloan XLERATOR® Accessory
Series Description
Hand Dryer HEPA Filter Retrofit Kit
Product Line
Accessory Product Type
Secador de Manos
Accessory Sub Type
Filtro de Aire
Accessory Product Line
Features List
HEPA Filter for Sloan XLERATOR units purchased without HEPA Filter option
HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air
Depth 6 in x Height 3 in x Width 9.5 in
By admin , 9 October 2025
Product Code
ADA Recess Kit
Product Type
Date Updated
1791504000
Product Category
Url Slug
ada-recess-kit
Compliances and Certifications
Primary Description
Sloan XLERATOR® Accessory
Series Description
Premium ADA Recess Kit
Imagenes Adicionales
ADA Recess Kit - Imagen adicional 1
Product Line
Accessory Product Type
Secador de Manos
Accessory Sub Type
Kit Empotrado
Accessory Product Line
Features List
Recess kit for Sloan Xlerator and Sloan Xlerator® dryers to meet ADA protrusion requirement of 4"
Brushed Stainless finish
16 3/8" Wide x 26" High x 3 3/8" Deep
By admin , 9 October 2025
Product Code
Xchanger Combo Kit - ADA
Product Type
Date Updated
1791504000
Product Category
Url Slug
xchanger-combo-kit-ada
Compliances and Certifications
Primary Description
Sloan XLERATOR® Accessory
Product Line
Accessory Product Type
Secador de Manos
Accessory Sub Type
Kit Empotrado
Accessory Product Line
Features List
Allows complete retrofit of paper towel dispenser and waste receptacle with Sloan XLERATOR or Sloan XLERATOReco hand dryer
Meets ADA requirements for height and protrusion
No damage to existing wall surface
Brushed Stainless finish
Wall box is fabricated of 22 GA 18-8 type 304 stainless steel with #4 satin finish with 16 GA 18-8 type 304 stainless steel dryer mounting plate. All welded construction.
16 3/8” wide x 26” high x 3 3/8” deep (416 mm wide x 660 mm high x 86 mm deep)
By admin , 9 October 2025
Product Code
Pre-Filter
Product Type
Date Updated
1791504000
Product Category
Url Slug
pre-filter
Compliances and Certifications
Primary Description
Sloan XLERATOR® Accessory
Series Description
Hand Dryer Pre-Filter Replacement
Product Line
Accessory Product Type
Secador de Manos
Accessory Sub Type
Filtro de Aire
Accessory Product Line
Features List
Replacement Pre-Filter for Hand Dryers with HEPA filters
HEPA Filtration System proven to remove 99.97% of potentially present bacteria at 0.3 microns from the air
Depth 3.25 in x Height 0.75 in x Width 7.75 in
By admin , 9 October 2025
Hand Dryer Power Type
Hardwired
Product Code
EHD-501-ECO
Product Type
Date Updated
1785283200
Product Category
Url Slug
ehd-501-eco
Primary Description
Sloan XLERATOR® Hand Dryer
Series Description
Sloan XLERATOR® Sensor-Operated Wall-Mounted Hand Dryer
Imagenes Adicionales
EHD-501-ECO - Imagen adicional 1
EHD-501-ECO - Imagen adicional 2
Measure Depth
6.69in
Measure Depth (mm)
170.00mm
Measure Width
11.75in
Measure Width (mm)
298.00mm
Measure Height
12.69in
Measure Height (mm)
322.00mm
Product Line
Hand Dryer Activation
Sensor
Hand Dryer Mounting
Wall-Mounted
Hand Dryer Product Line
Features List
35-second lockout feature if hands are not removed, 10 second dry time
95% cost savings vs. paper towels, Adjustable speed and sound (High-Low)
Electric Specifications: 110-120V – 4.3-4.5 Amps, 460-530 Watts, 50/60 Hz, Can install multiple units on one circuit
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
Hygienic hand drying solution, No Heat option
Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Vandal resistant cover design, Virtually maintenance free
Weight: 15-17 lbs.
By admin , 9 October 2025
Hand Dryer Power Type
a Corriente
Product Code
EHD-501
Product Type
Date Updated
1792713600
Product Category
Url Slug
ehd-501
Primary Description
Sloan XLERATOR® Hand Dryer
Series Description
Sloan XLERATOR® Sensor-Operated Wall-Mounted Hand Dryer
Imagenes Adicionales

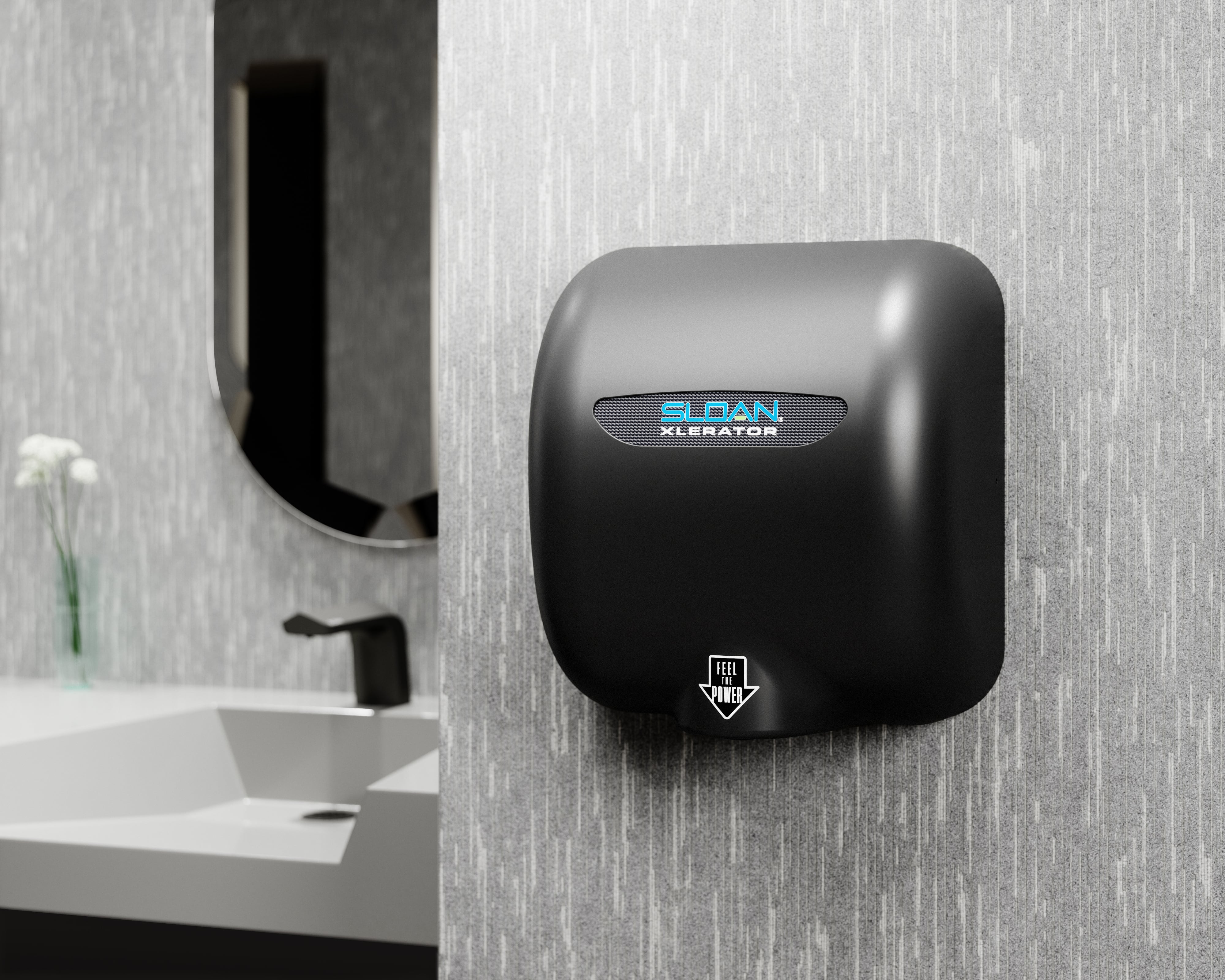

EHD-501 - Imagen adicional 1

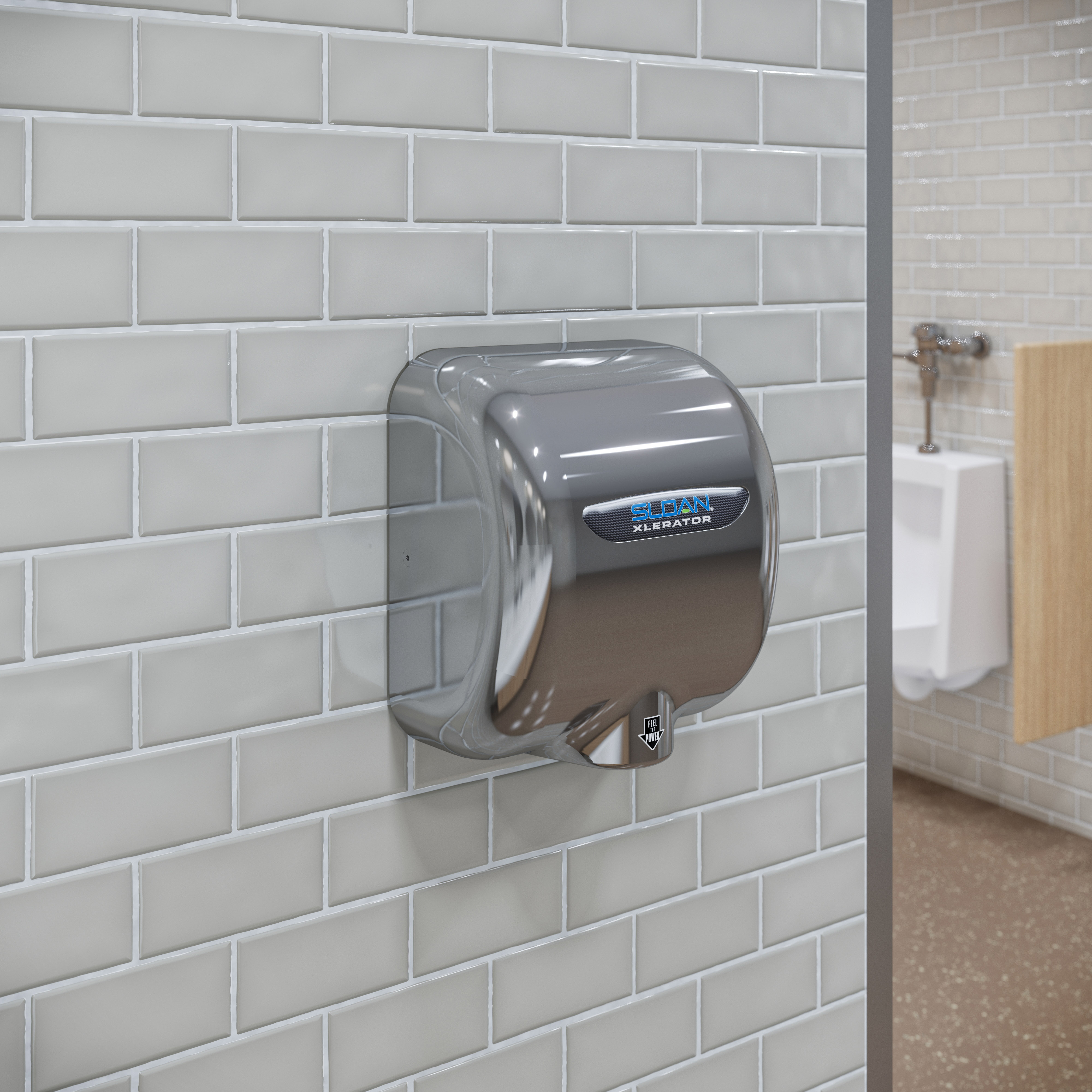

EHD-501 - Imagen adicional 2
Measure Depth
6.69in
Measure Depth (mm)
170.00mm
Measure Width
11.75in
Measure Width (mm)
298.00mm
Measure Height
12.69in
Measure Height (mm)
322.00mm
Product Line
Hand Dryer Activation
Sensor
Hand Dryer Mounting
Montado en Pared
Hand Dryer Product Line
Features List
Tiempo de secado: 8 segundos. Peso: entre 15 y 17 libras.
Un ahorro del 95 % en comparación con las toallas de papel
Temperatura del aire de hasta 135 °F (57 °C) a una temperatura ambiente de 72 °F (22 °C) en la zona de las manos (4 pulgadas [102 mm] por debajo de la salida de aire).
Funciona automáticamente mediante un sensor óptico de infrarrojos con función de bloqueo de 35 segundos y activa un potente chorro de aire controlado.
Se puede colocar fácilmente para cumplir con los requisitos de la ADA o para adaptarse a la altura de los niños.
Diseño de cubierta resistente al vandalismo; prácticamente no requiere mantenimiento
Especificaciones eléctricas: 110-120 V – 11,3-12,2 amperios, 1240-1450 vatios, 50/60 Hz; se pueden instalar varias unidades en un mismo circuito
Luz LED roja visible desde el exterior que muestra códigos de error parpadeantes para facilitar la resolución de problemas e identificar si el filtro se ha obstruido
La carcasa de una sola pieza, fabricada en aleación de zinc fundida a presión y reforzada con nervaduras para uso intensivo, minimiza los daños que puede sufrir la secadora en entornos hostiles.
Recomendaciones sobre la cantidad: basta con un secador por cada dos lavabos en la mayoría de los casos. Para lugares muy concurridos, recomendamos un secador por cada lavabo.
Alturas de instalación recomendadas para un rendimiento óptimo (desde el suelo hasta la parte inferior de la secadora): Hombres: 45” (114 cm), Mujeres: 43” (109 cm), Adolescentes: 41” (104 cm), Niños: 35” (89 cm), ADA: 37” (94 cm). Nota: Al instalarla para cualquier usuario, asegúrate de que quede por debajo de la altura máxima de 48” establecida por la ADA.
