Sink

Url Slug
sink
By Anonymous (not verified) , 10 October 2025

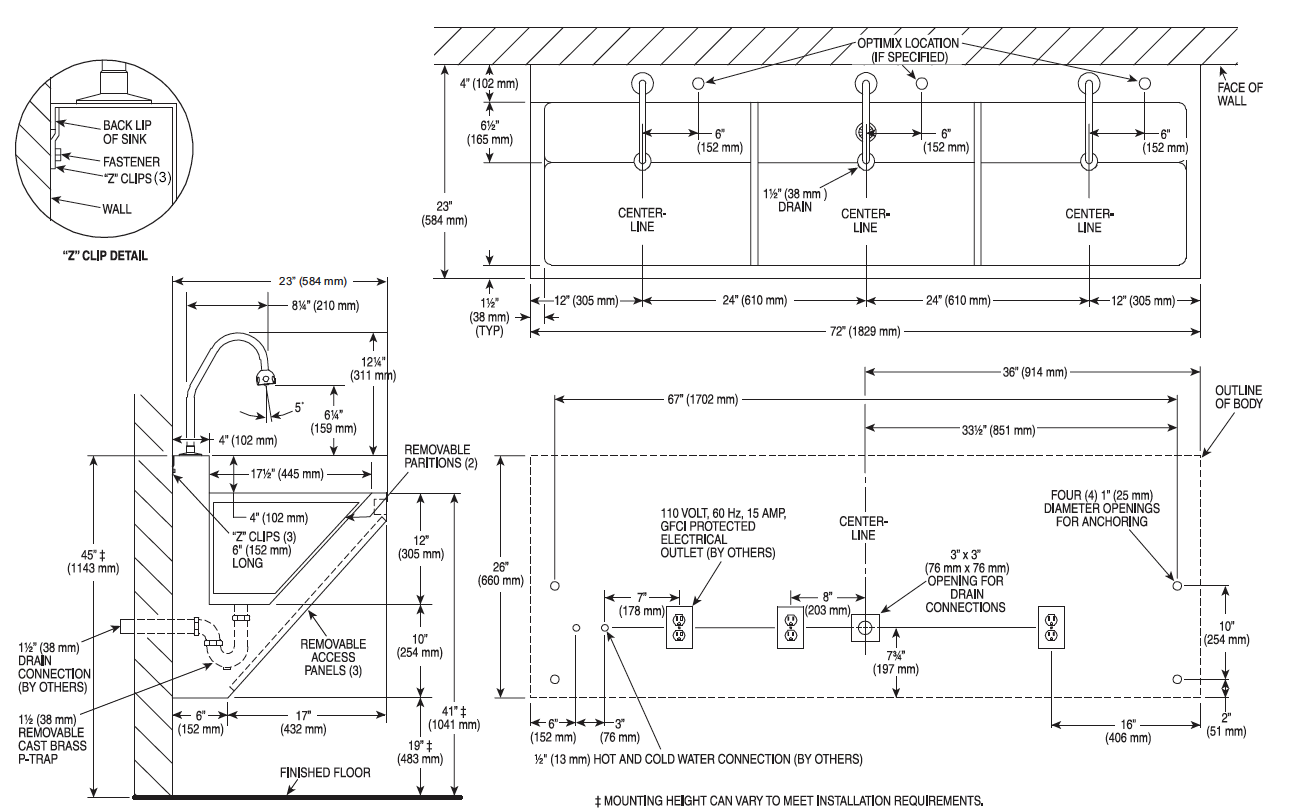

ESS-2300

Product Code
ESS-2300
Product Type
Parent
Date Updated
1761177600
Product Category
Sink
Url Slug
ess-2300
Primary Description
Stainless Steel Sink
Product Features
Features Intro
Triple Station Stainless Steel Scrub Sink with Sensor Activated, 24 VAC, Chrome Plated Brass Hand Washing Faucets with the following features:
Features List
Sink constructed from 16 gauge, Type 304 stainless steel with bead blast finish on sink bowl interior for superior wash-down characteristics
16 gauge “lift-out” style front access panel for easy maintenance access
Sloan OPTIMA Faucet for hands-free operation
Sink is shipped pre-plumbed for easy installation
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
ESS-2300 BIM
Title
Brochure
Files Dowloads
Sink Brochure
Title
Installation Instructions
Files Dowloads
Optima ESS-2000_3000 Series Installation Instructions
Optima ESS-2000_3000 Series (Spanish) Installation Instructions
Title
Repair & Maintenance Guide
Files Dowloads
EHS-1000-ESS-2000-3000 Series Repair and Maintenance Guide
General Spec Sheet
General Spec Sheet
Series Description
Stainless Steel 3-Station Wall-Mounted Scrub Sink
Measure Depth
23.00in
Measure Depth (mm)
584.00mm
Measure Width
72.00in
Measure Width (mm)
1829.00mm
Product Line
Stainless Steel
Building Types
Hospital
Health Club
Sink Material
Stainless Steel
Sink Stations
0
Sink Product Line
Stainless Steel
By Anonymous (not verified) , 10 October 2025

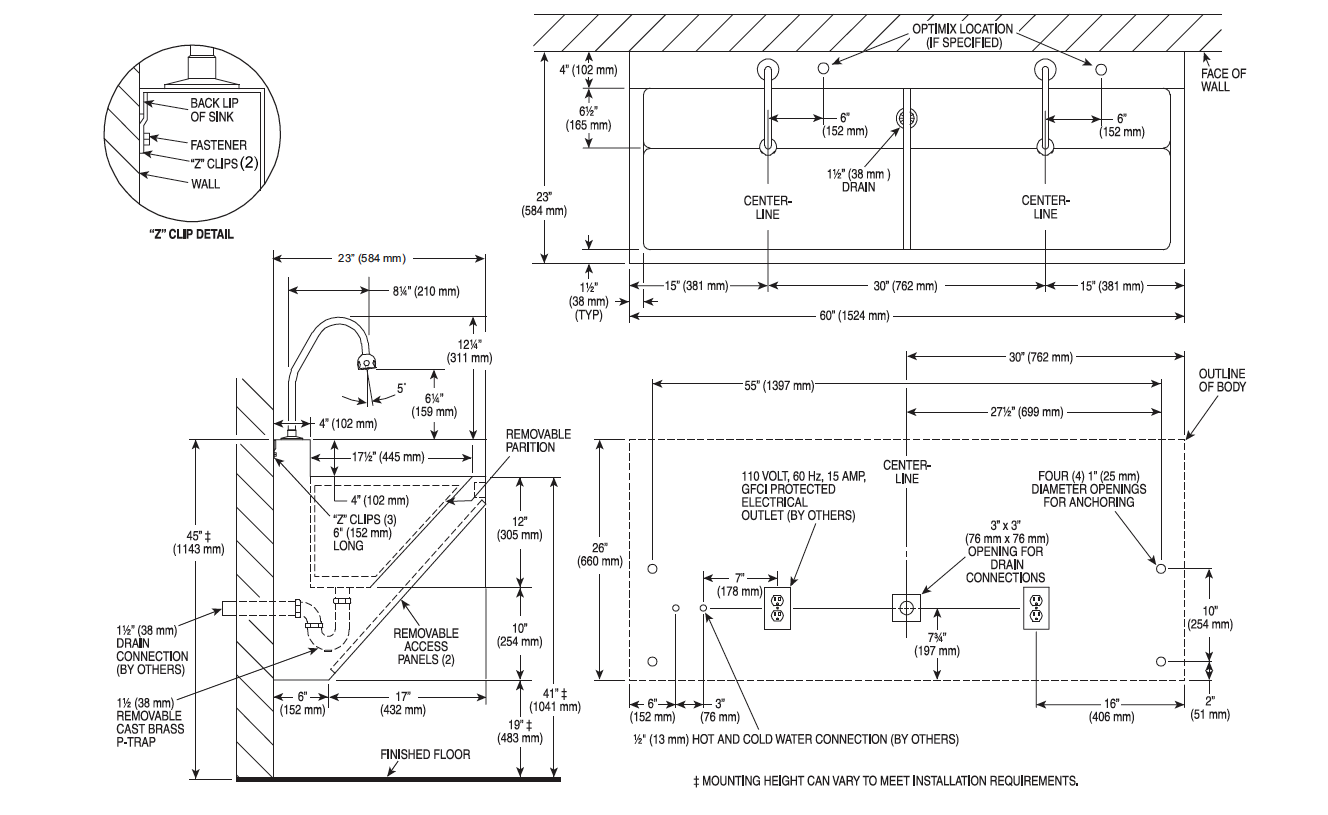

ESS-2200

Product Code
ESS-2200
Product Type
Parent
Date Updated
1761177600
Product Category
Sink
Url Slug
ess-2200
Primary Description
Stainless Steel Sink
Product Features
Features Intro
Double Station Stainless Steel Scrub Sink with Sensor Activated, 24 VAC, Chrome Plated Brass Hand Washing Faucets with the following features:
Features List
Sink constructed from 16 gauge, Type 304 stainless steel with bead blast finish on sink bowl interior for superior wash-down characteristics
16 gauge “lift-out” style front access panel for easy maintenance access
Sloan OPTIMA Faucet for hands-free operation
Sink is shipped pre-plumbed for easy installation
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
ESS-2200 BIM
Title
Brochure
Files Dowloads
Sink Brochure
Title
Installation Instructions
Files Dowloads
Optima ESS-2000_3000 Series Installation Instructions
Optima ESS-2000_3000 Series (Spanish) Installation Instructions
Title
Repair & Maintenance Guide
Files Dowloads
EHS-1000-ESS-2000-3000 Series Repair and Maintenance Guide
General Spec Sheet
General Spec Sheet
Series Description
Stainless Steel 2-Station Wall-Mounted Scrub Sink
Measure Depth
23.00in
Measure Depth (mm)
584.00mm
Measure Width
60.00in
Measure Width (mm)
1524.00mm
Product Line
Stainless Steel
Building Types
Hospital
Health Club
Sink Material
Stainless Steel
Sink Stations
0
Sink Product Line
Stainless Steel
By Anonymous (not verified) , 10 October 2025

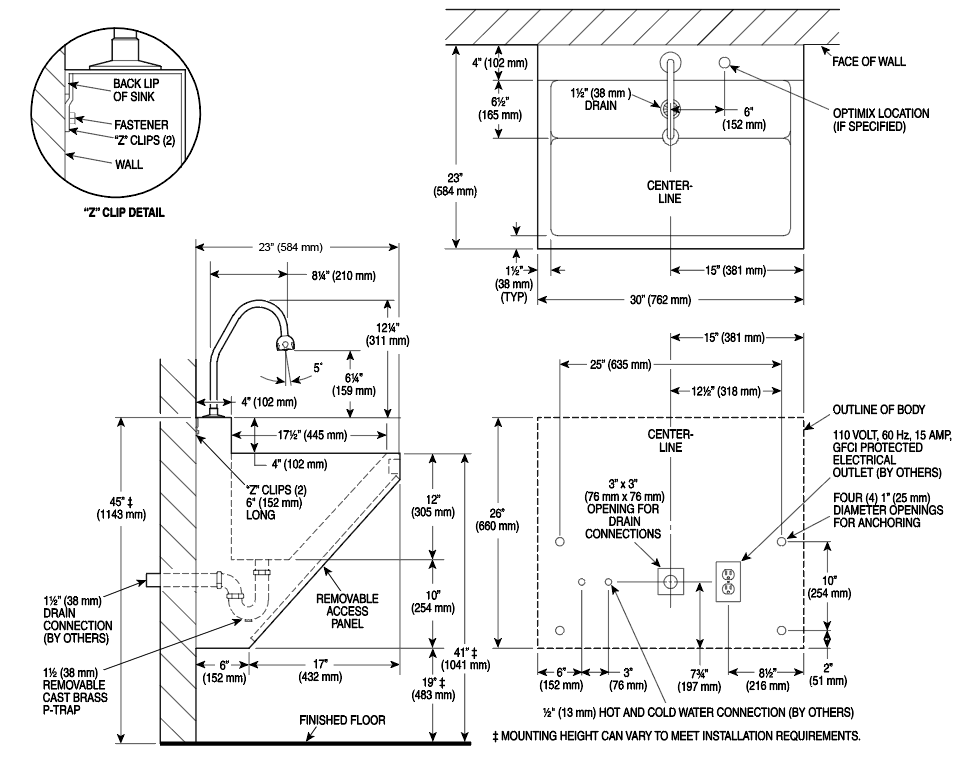

ESS-2100

Product Code
ESS-2100
Product Type
Parent
Date Updated
1761177600
Product Category
Sink
Url Slug
ess-2100
Primary Description
Stainless Steel Sink
Product Features
Features Intro
Single Station Stainless Steel Scrub Sink with Sensor Activated, 24 VAC, Chrome Plated Brass Hand Washing Faucet with the following features:
Features List
Sink constructed from 16 gauge, Type 304 stainless steel with bead blast finish on sink bowl interior for superior wash-down characteristics
16 gauge “lift-out” style front access panel for easy maintenance access
Unit supplied with 20” flexible supply hoses
Sloan OPTIMA Faucet for hands-free operation
Sink is shipped pre-plumbed for easy installation
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
ESS-2100 BIM
Title
Brochure
Files Dowloads
Sink Brochure
Title
Installation Instructions
Files Dowloads
Optima ESS-2000_3000 Series Installation Instructions
Optima ESS-2000_3000 Series (Spanish) Installation Instructions
Title
Repair & Maintenance Guide
Files Dowloads
EHS-1000-ESS-2000-3000 Series Repair and Maintenance Guide
General Spec Sheet
General Spec Sheet
Series Description
Stainless Steel 1-Station Wall-Mounted Scrub Sink
Measure Depth
23.00in
Measure Depth (mm)
584.00mm
Measure Width
30.00in
Measure Width (mm)
762.00mm
Product Line
Stainless Steel
Building Types
Hospital
Health Club
Sink Material
Stainless Steel
Sink Stations
1
Sink Product Line
Stainless Steel
By Anonymous (not verified) , 10 October 2025

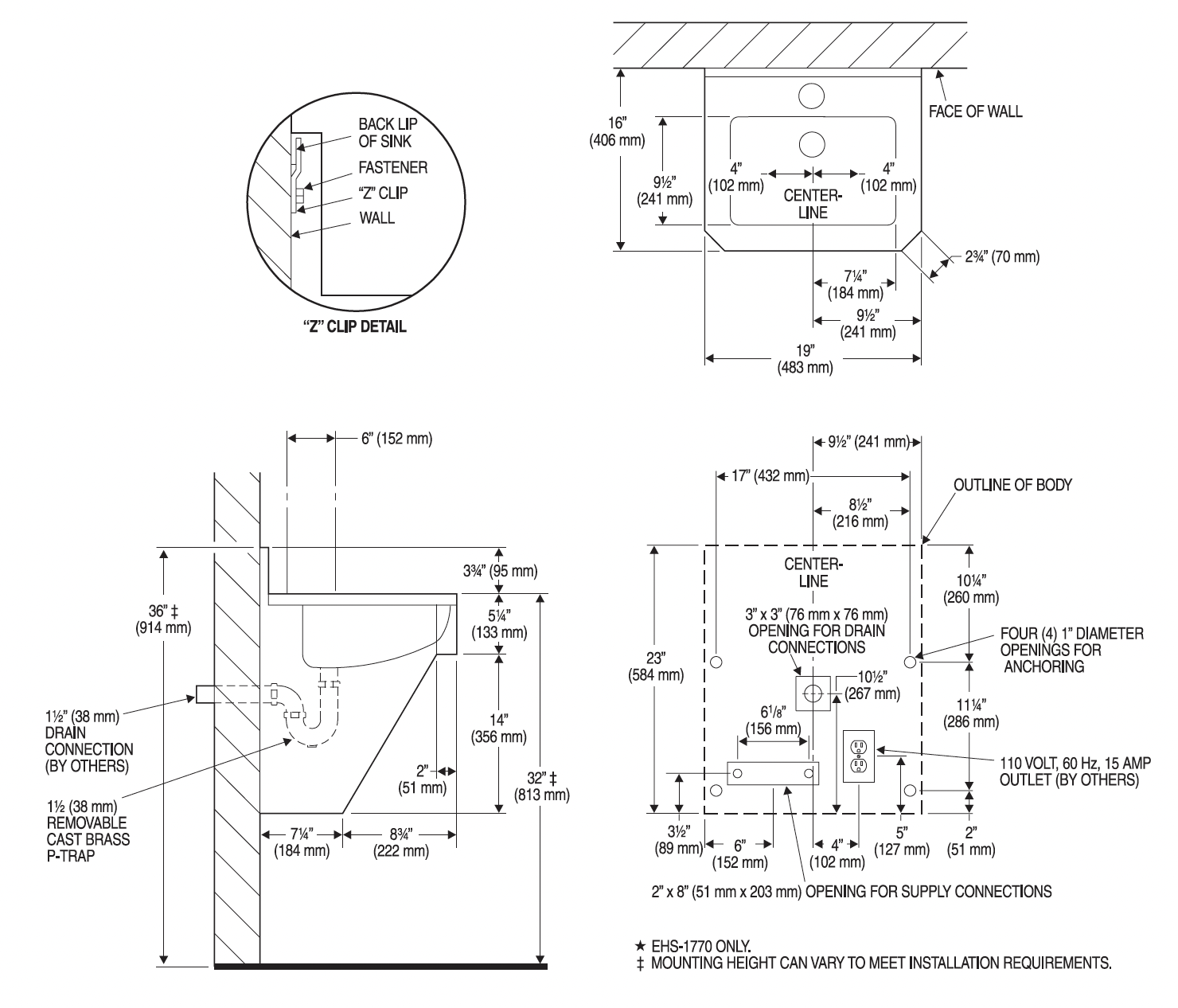

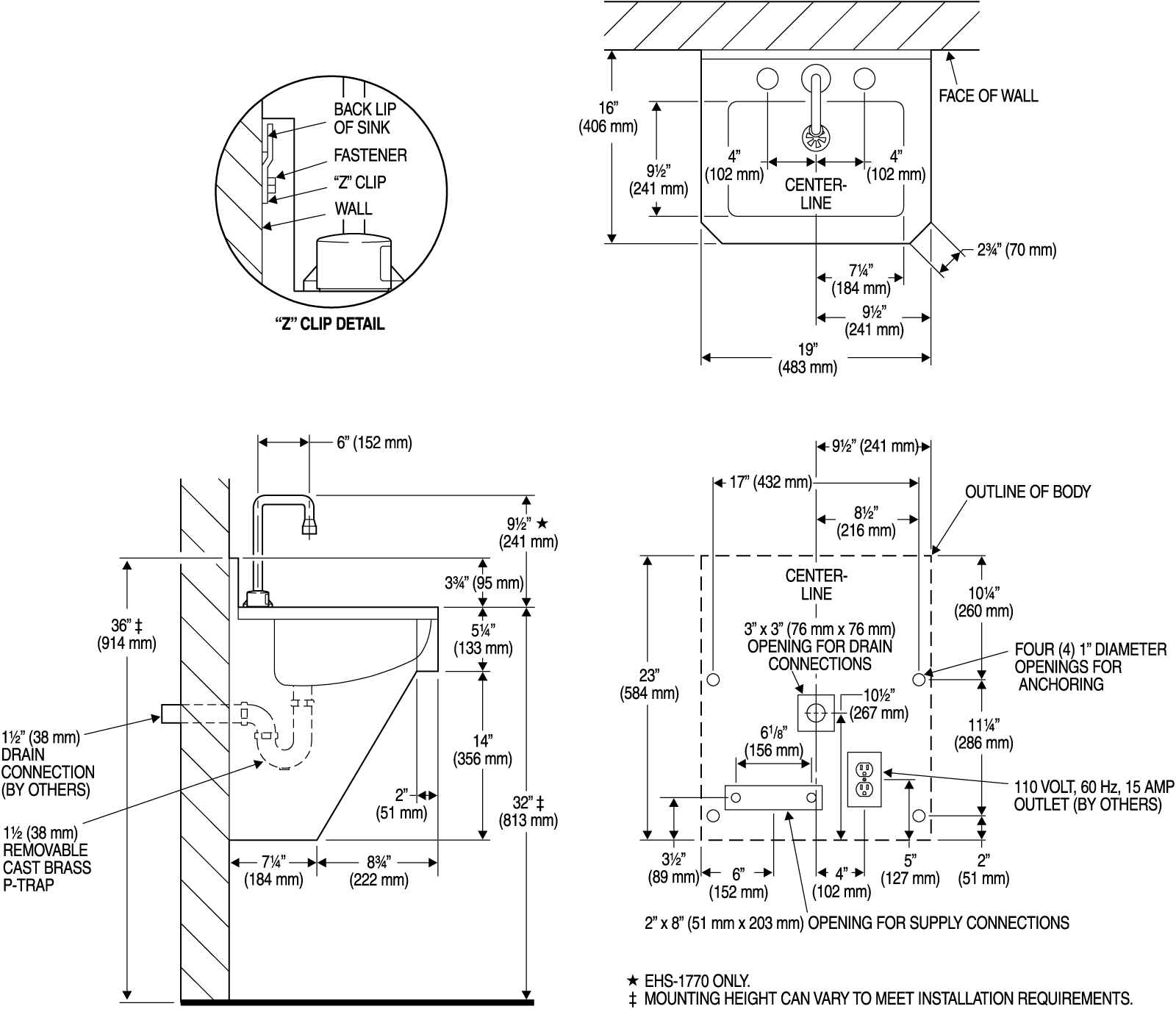

EHS-1000

Product Code
EHS-1000
Product Type
Parent
Date Updated
1761177600
Product Category
Sink
Url Slug
ehs-1000
Primary Description
Stainless Steel Sink
Product Features
Features Intro
Stainless Steel Hand Washing Sink with the following features:
Features List
Sink constructed from 14 gauge, Type 304 stainless steel with brushed stainless
Outer rim of sink raised to help prevent splashing and dripping on floors
Angled front corners to enhance ease of use and protect users from sharp corners
Pair with Optional Sloan OPTIMA Faucet (not included) for hands-free operation
Sink is shipped pre-plumbed for easy installation
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
EHS-1000 BIM
Title
Brochure
Files Dowloads
Sink Brochure
Title
Repair & Maintenance Guide
Files Dowloads
EHS-1000-ESS-2000-3000 Series Repair and Maintenance Guide
General Spec Sheet
General Spec Sheet
Series Description
Stainless Steel 1-Station Wall-Mounted Handwashing Sink
Measure Depth
16.00in
Measure Depth (mm)
406.00mm
Measure Width
19.00in
Measure Width (mm)
483.00mm
Product Line
Stainless Steel
Building Types
Restaurant
Hospital
Health Club
Sink Material
Stainless Steel
Sink Stations
1
Sink Product Line
Stainless Steel
By admin , 8 October 2025

EW-73000

Product Code
EW-73000
Product Type
Parent
Date Updated
1761177600
Product Category
Sink
Url Slug
ew-73000
Primary Description
SloanStone® Solid Surface Sink
Product Features
Features Intro
Triple Station Lavatory System with Sloan Electronic Sensor Technology with the following features:
Features List
Sink has Easy Access integrated head for ease of maintenance and installation. The Easy Access integrated head houses the solenoids, shut-off valves, IR Sensor, electronic modules and be pre-plumbed as well as be accessible from the top of the sink.
Sloan Optima Electronic Sensors for hands free point of use activation
Optional top filled gravity fed manual Soap Dispensers
ADA and TAS lavatory Rim Height Standards achieved in a single design
Aesthetically pleasing soft contoured one-piece continuous Basin
Basin and Integrated Head constructed of durable SloanStone solid surface material
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
EW-73000 BIM
Title
Brochure
Files Dowloads
Sink Brochure
SloanStone® Sinks Brochure
Title
Installation Instructions
Files Dowloads
EW 40000 Installation Instructions
EW 60000 Installation Instructions
EW 70000 Installation Instructions
EW 70000 (Spanish) Installation Instructions
General Spec Sheet
General Spec Sheet
Series Description
SloanStone® Solid Surface 3-Station Wall-Mounted Washstation Sink
Measure Depth
21.00in
Measure Depth (mm)
533.00mm
Measure Width
76.00in
Measure Width (mm)
1930.00mm
Product Line
SloanStone® Superficie Solida
Building Types
K-12
Stadium
Retail Store
Sink Material
SloanStone Solid Surface
Sink Stations
0
Sink Product Line
SloanStone® Solid Surface
By admin , 8 October 2025

EW-72000

Product Code
EW-72000
Product Type
Parent
Date Updated
1761177600
Product Category
Sink
Url Slug
ew-72000
Primary Description
SloanStone® Solid Surface Sink
Product Features
Features Intro
Double Station Lavatory System with Sloan Electronic Sensor Technology with the following features:
Features List
Sink has Easy Access integrated head for ease of maintenance and installation. The Easy Access integrated head houses the solenoids, shut-off valves, IR Sensor, electronic modules and be pre-plumbed as well as be accessible from the top of the sink.
Sloan Optima Electronic Sensors for hands free point of use activation
Optional top filled gravity fed manual Soap Dispensers
ADA and TAS lavatory Rim Height Standards achieved in a single design
Aesthetically pleasing soft contoured one-piece continuous Basin
Basin and Integrated Head constructed of durable SloanStone solid surface material
Downloads
Downloads Product Group
Title
BIM Model
Files Dowloads
EW-72000 BIM
Title
Brochure
Files Dowloads
Sink Brochure
SloanStone® Sinks Brochure
Title
Installation Instructions
Files Dowloads
EW 40000 Installation Instructions
EW 60000 Installation Instructions
EW 70000 Installation Instructions
EW 70000 (Spanish) Installation Instructions
Title
Repair & Maintenance Guide
Files Dowloads
EW-72000-73000 Repair and Maintenance Guide
General Spec Sheet
General Spec Sheet
Series Description
SloanStone® Solid Surface 2-Station Wall-Mounted Washstation Sink
Measure Depth
21.00in
Measure Depth (mm)
533.00mm
Measure Width
50.00in
Measure Width (mm)
1270.00mm
Product Line
SloanStone® Superficie Solida
Building Types
K-12
Stadium
Retail Store
Sink Material
SloanStone Solid Surface
Sink Stations
0
Sink Product Line
SloanStone® Solid Surface
