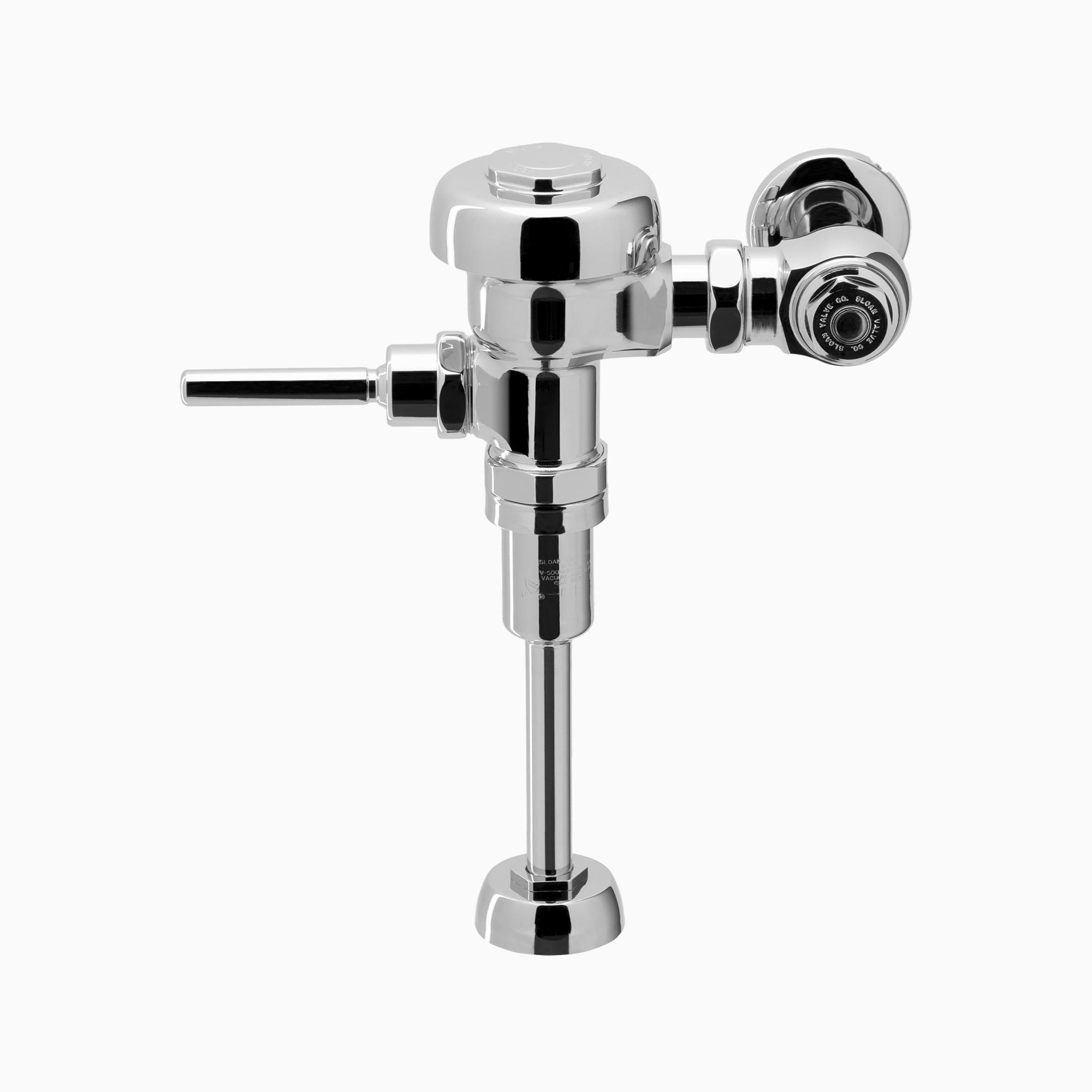

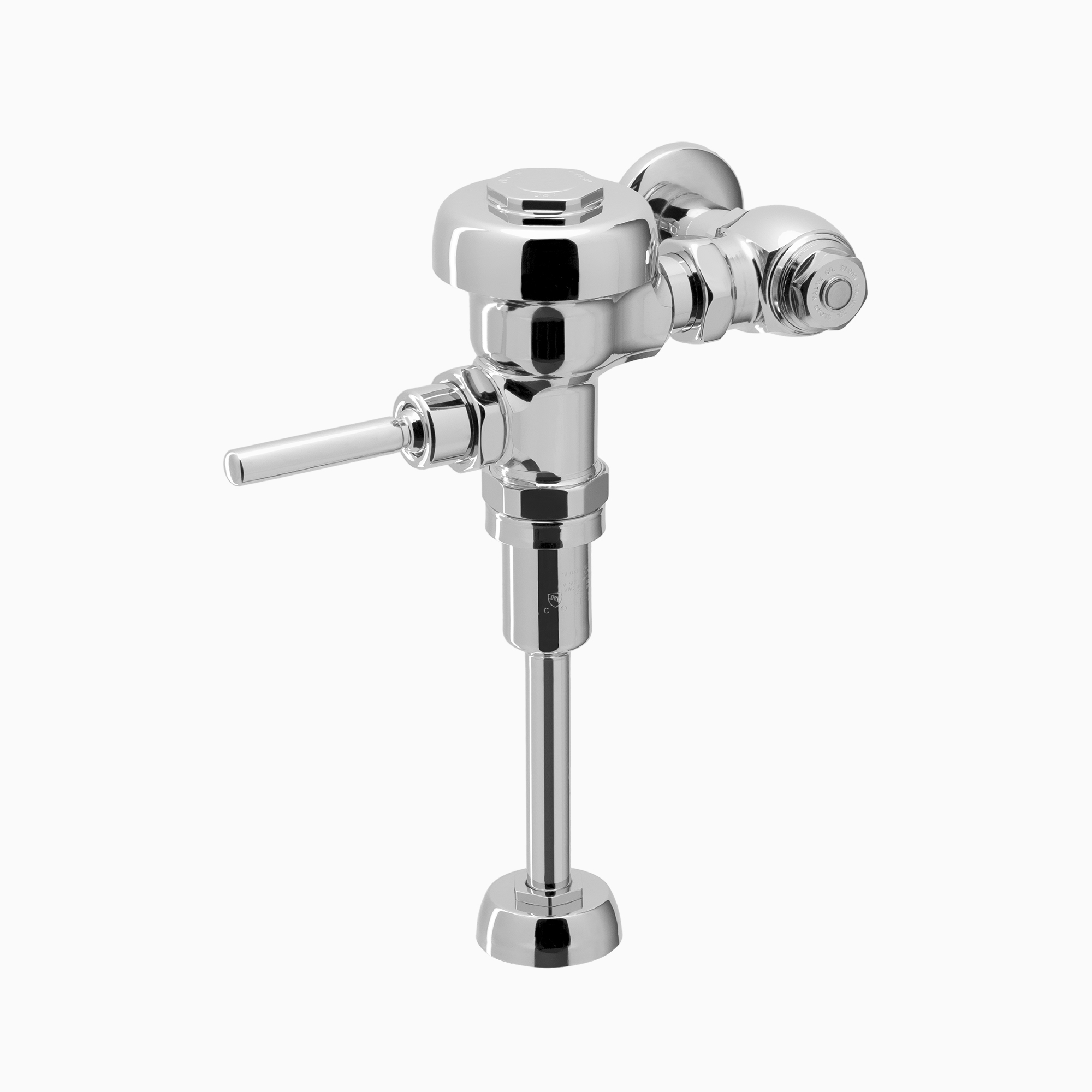

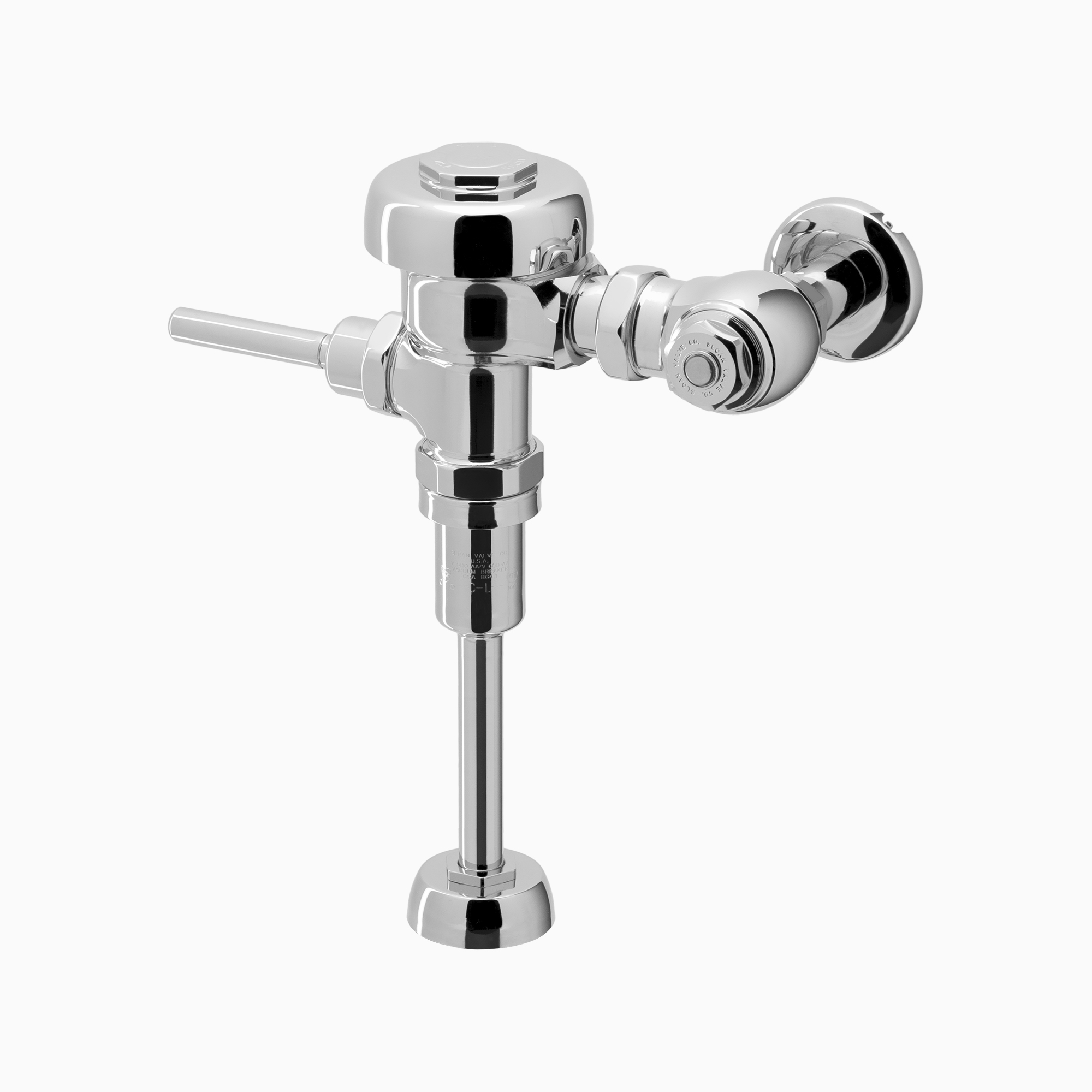

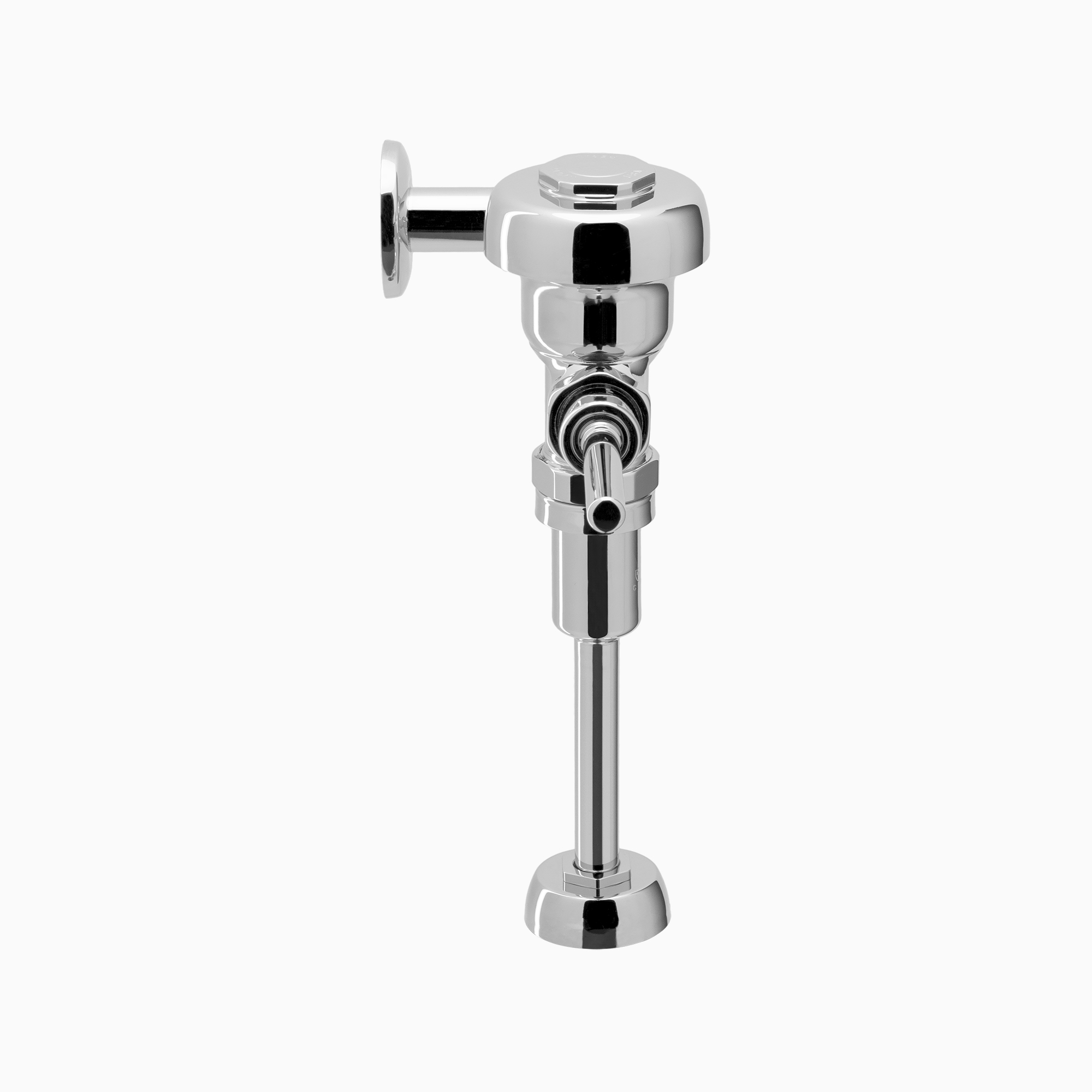

Flushometer

Flush volumes start as low as 0.5 gpf/1.9 Lpf

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume

Low Consumption flush accuracy controlled by Para-Flo™ technology

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

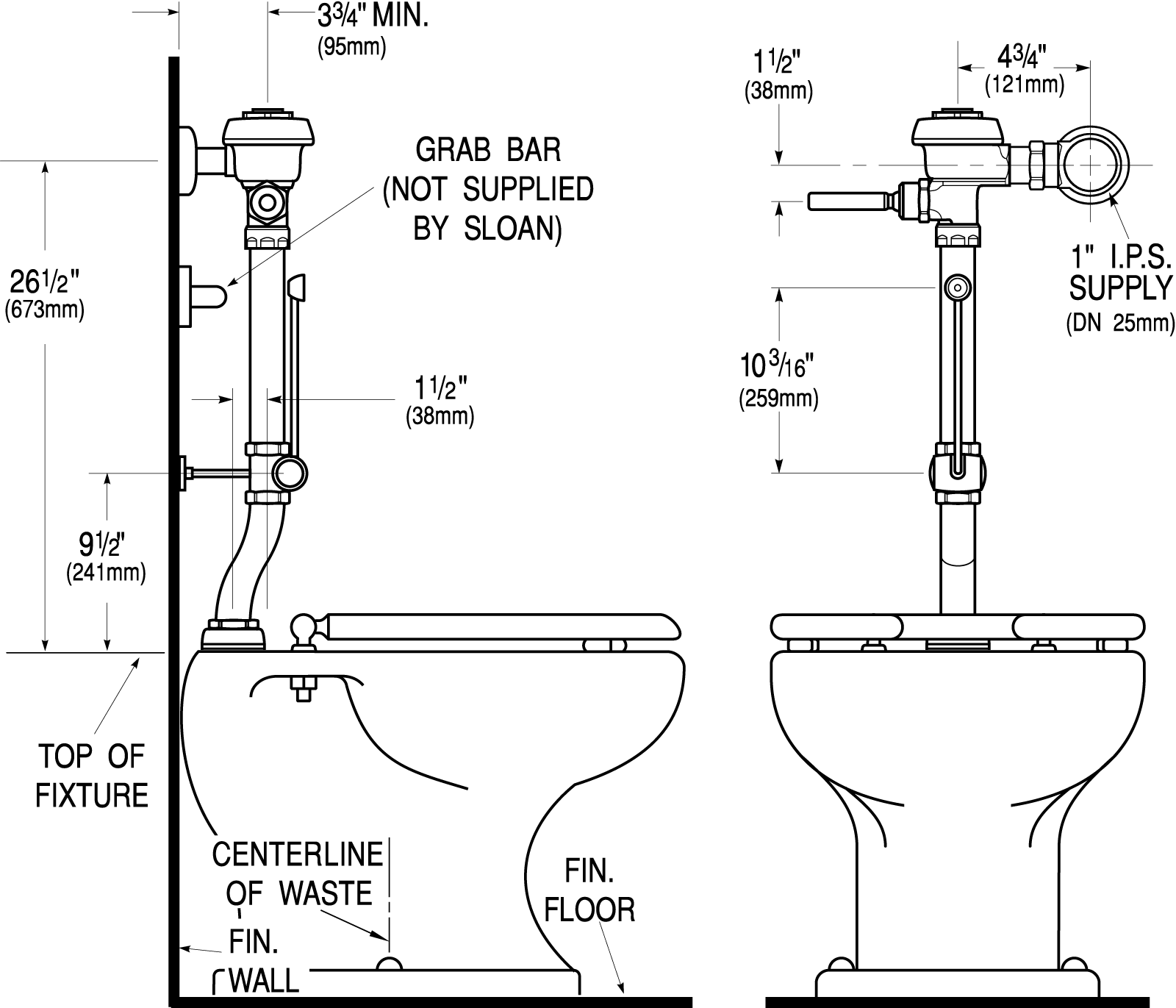

Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls

Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position

Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units

Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage

Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Flush volumes start as low as 1.28 gpf/4.8 Lpf

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Integrity of the product is maintained with the vandal-resistant stop cap

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Wall Box ready

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Integrity of the product is maintained with the vandal-resistant stop cap

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Flush volumes start as low as 1.28 gpf/4.8 Lpf

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Flush accuracy is controlled by CID™ technology, also enhancing water efficiency

Integrity of the product is maintained with the vandal-resistant stop cap

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece to accommodate different height requirements

High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Flush volumes start at 1.28 gpf/4.8 Lpf for greater water savings

Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Flush volumes start at 1.28 gpf/4.8 Lpf for greater water savings

Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Flush volumes start at 1.28 gpf/4.8 Lpf for greater water savings

Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037

Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives

Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume

Low Consumption flush accuracy controlled by Para-Flo™ Technology

Integrity of the product is maintained with control stop plug

Durability is facilitated with high copper, low zinc brass castings for dezincification resistance

Adjustable tailpiece

Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass

Valve shall be in compliance to the applicable sections of ASSE 1037
