HPD

Sloan is committed to providing full disclosure of potential chemicals of concern in products and is in full compliance with the Health Product Declaration Collaborative.

image_cc
HPD
title_page
Health Product Declarations
By Anonymous (not verified) , 10 October 2025
Product Code
CX-154
Product Type
Date Updated
1781827200
Product Category
Url Slug
cx-154
Compliances and Certifications
Primary Description
CX Manual Flushometer
Series Description
CX Concealed Manual Water Closet Flushometer
Product Line
Flushometer Installation
Concealed
Flushometer Activation
Manual
Flushometer Valve
Piston
Flushometer Fixture Type
Water Closet
Flushometer Product Line
Rough-In Parent

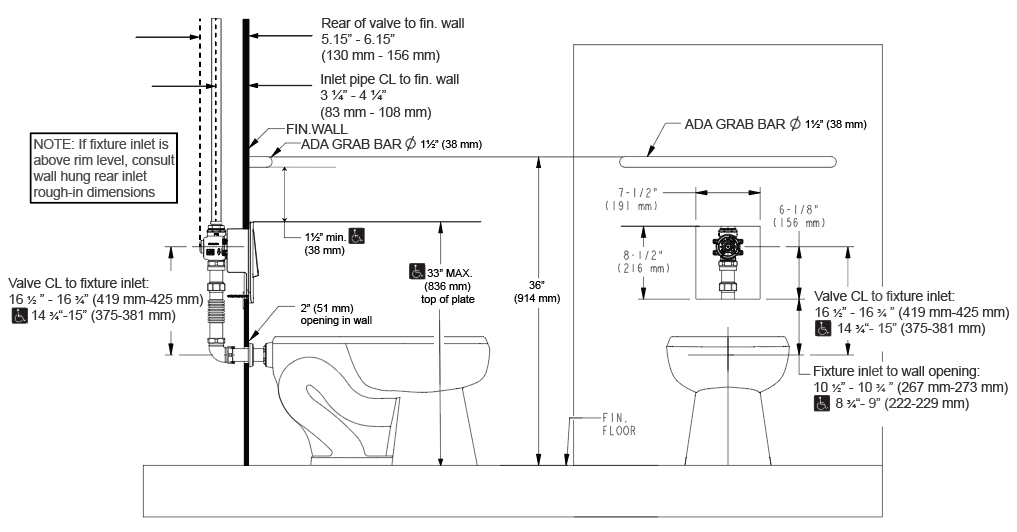

CX-154 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
ADA compliant push button
Vandal resistant wall plate
Adjustable flush connection
8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
By Anonymous (not verified) , 10 October 2025
Product Code
CX 158
Product Type
Date Updated
1781827200
Product Category
Url Slug
cx-158
Primary Description
CX Manual Flushometer
Series Description
CX Concealed Manual Water Closet Flushometer
Product Line
Flushometer Installation
Concealed
Flushometer Activation
Manual
Flushometer Valve
Piston
Flushometer Fixture Type
Water Closet
Flushometer Product Line
Rough-In Parent
CX 158 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
ADA compliant push button
Vandal resistant wall plate
Adjustable flush connection
8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
By Anonymous (not verified) , 10 October 2025
Product Code
EFX-280
Product Type
Date Updated
1780012800
Product Category
Url Slug
efx-280
Primary Description
BASYS® Sensor Faucet
Series Description
BASYS® Turbine-Powered Deck-Mounted Mid Body Faucet
Imagenes Adicionales
EFX-280 - Imagen adicional 1
EFX-280 - Imagen adicional 2
EFX-280 - Imagen adicional 3
EFX-280 - Imagen adicional 4
EFX-280 - Imagen adicional 5
EFX-280 - Imagen adicional 6
EFX-280 - Imagen adicional 7
EFX-280 - Imagen adicional 8
Product Line
Product Family
Electronic Faucet Generation X
Body Type
Mid
Spout Design
BASYS Mid
Faucet Mounting Style
Deck-Mounted
Faucet Power Type
Turbine
Faucet Mounting Type
Deck
Faucet Product Line
Rough-In Parent
EFX-280 - Rough-In Parent
Features Intro
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Die-Cast Metal Hand Washing Faucet with the following features:
Features List
One tool service
All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
Solenoid housed in removable carrier that includes supply strainer
Integral water supply shut off
Supply strainer serviceable from above deck
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
Flexible, high pressure supply hoses, 3/8” compression connections
Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Double infrared sensors with automatic setting feature
Single hole installation
Includes all mounting hardware
Line purge mode, eliminates stagnant water
Adjustable time-outs
3 year limited warranty
By Anonymous (not verified) , 10 October 2025
Product Code
SLOAN 111
Product Type
Date Updated
1781827200
Product Category
Url Slug
sloan-111
Primary Description
Sloan® Manual Flushometer
Series Description
Sloan® Exposed Manual Water Closet Flushometer
Imagenes Adicionales
SLOAN 111 - Imagen adicional 1
SLOAN 111 - Imagen adicional 2
SLOAN 111 - Imagen adicional 3
SLOAN 111 - Imagen adicional 4
Product Line
Flushometer Installation
Exposed
Flushometer Activation
Manual
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Water Closet
Flushometer Product Line
Rough-In Parent
SLOAN 111 - Rough-In Parent
Features List
Flush volumes start as low as 1.28 gpf/4.8 Lpf
Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Integrity of the product is maintained with the vandal-resistant stop cap
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece to accommodate different height requirements
High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
By Anonymous (not verified) , 10 October 2025
Product Code
CX 8154
Product Type
Date Updated
1781827200
Product Category
Url Slug
cx-8154
Primary Description
CX Sensor Flushometer
Series Description
CX Concealed Sensor Floor-Mounted Water Closet Flushometer
Product Line
Flushometer Installation
Concealed
Flushometer Activation
Sensor
Flushometer Valve
Piston
Flushometer Fixture Type
Water Closet
Flushometer Product Line
Rough-In Parent

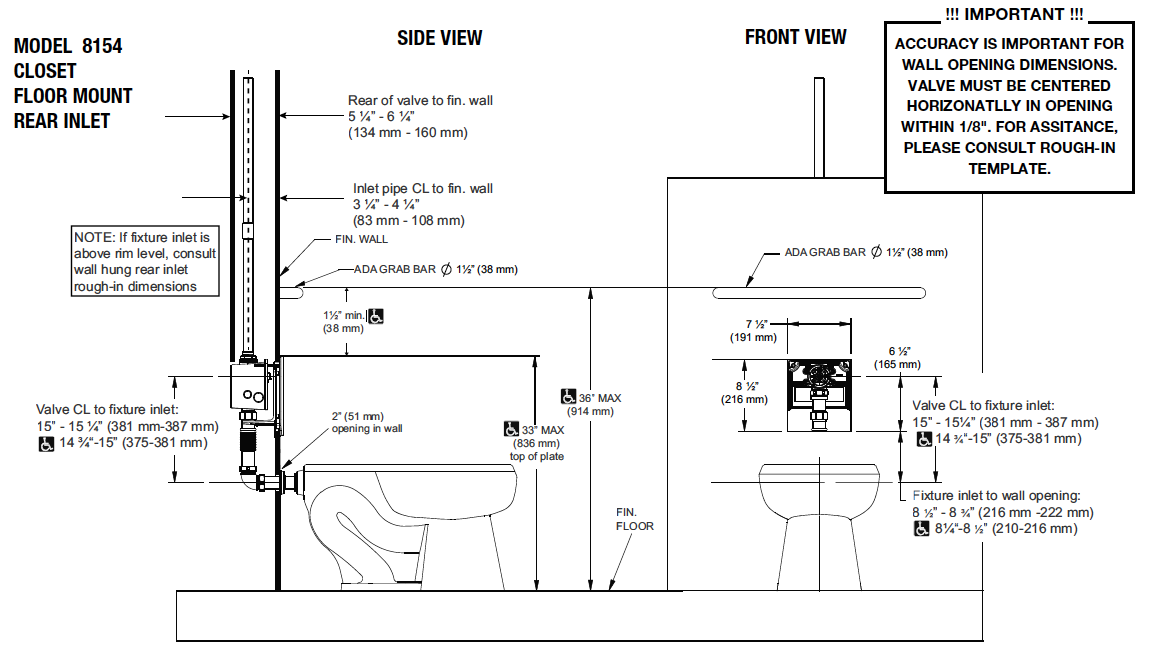

CX 8154 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
Sensor activated, hands-free operation
Battery operated with hardwired option
Electronic override button
Low battery indicator light
Vandal resistant wall plate
Adjustable flush connection
8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
By Anonymous (not verified) , 10 October 2025
Product Code
CX 8198
Product Type
Date Updated
1781827200
Product Category
Url Slug
cx-8198
Primary Description
CX Sensor Flushometer
Series Description
CX Concealed Sensor Urinal Flushometer
Product Line
Flushometer Installation
Concealed
Flushometer Activation
Sensor
Flushometer Valve
Piston
Flushometer Fixture Type
Urinal
Flushometer Product Line
Rough-In Parent
CX 8198 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
Sensor activated, hands-free operation
Battery operated with hardwired option
Electronic override button
low Battery indicator light
vandal resistant wall plate
Adjustable flush connection
By Anonymous (not verified) , 10 October 2025
Product Code
CX 8158
Product Type
Date Updated
1781827200
Product Category
Url Slug
cx-8158
Primary Description
CX Sensor Flushometer
Series Description
CX Concealed Sensor Wall-Mounted Water Closet Flushometer
Product Line
Flushometer Installation
Concealed
Flushometer Activation
Sensor
Flushometer Valve
Piston
Flushometer Fixture Type
Water Closet
Flushometer Product Line
Rough-In Parent
CX 8158 - Rough-In Parent
Features List
Fixed volume piston with filtered O-ring bypass
Front access wall plate requires no rear access plumbing chase
Sensor activated, hands-free operation
Battery operated with hardwired option
Electronic override button
Low battery indicator light
Vandal resistant wall plate
Adjustable flush connection
8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
By Anonymous (not verified) , 10 October 2025
Battery Specifications Parent
G2 8186 - Battery Specifications Parent
Product Code
G2 8186
Product Type
Date Updated
1773273600
Product Category
Url Slug
g2-8186
Primary Description
G2 Sensor Flushometer
Series Description
G2 Exposed Sensor Urinal Flushometer
Imagenes Adicionales
G2 8186 - Imagen adicional 1
G2 8186 - Imagen adicional 2
G2 8186 - Imagen adicional 3
G2 8186 - Imagen adicional 4
Product Line
Flushometer Installation
Exposed
Flushometer Activation
Sensor
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Urinal
Flushometer Product Line
Rough-In Parent
G2 8186 - Rough-In Parent
Features List
ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
Fixed metering bypass and no external volume adjustment to ensure water conservation
Adjustable tailpiece to accommodate different height requirements
High copper, low zinc brass castings for dezincification resistance
Available in 0.5 gpf/1.9 Lpf, low consumption (1.0 gpf/3.8 Lpf), water saver (1.5 gpf/5.7 Lpf), and conventional (3.5 gpf/13.2 Lpf) models
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
By Anonymous (not verified) , 10 October 2025
Product Code
SLOAN 8186
Product Type
Date Updated
1773273600
Product Category
Url Slug
sloan-8186
Primary Description
Sloan® Sensor Flushometer
Series Description
Sloan® Exposed Sensor Urinal Flushometer
Imagenes Adicionales
SLOAN 8186 - Imagen adicional 1
SLOAN 8186 - Imagen adicional 2
SLOAN 8186 - Imagen adicional 3
SLOAN 8186 - Imagen adicional 4
Product Line
Flushometer Installation
Exposed
Flushometer Activation
Sensor
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Urinal
Flushometer Product Line
Rough-In Parent
SLOAN 8186 - Rough-In Parent
Features List
High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Adjustable tailpiece
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
Courtesy Flush® Override Button
By Anonymous (not verified) , 10 October 2025
Product Code
SLOAN 8111
Product Type
Date Updated
1773273600
Product Category
Url Slug
sloan-8111
Primary Description
Sloan® Sensor Flushometer
Series Description
Sloan® Exposed Sensor Water Closet Flushometer
Imagenes Adicionales
SLOAN 8111 - Imagen adicional 1
SLOAN 8111 - Imagen adicional 2
SLOAN 8111 - Imagen adicional 3
SLOAN 8111 - Imagen adicional 4
Product Line
Flushometer Installation
Exposed
Flushometer Activation
Sensor
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Water Closet
Flushometer Product Line
Rough-In Parent
SLOAN 8111 - Rough-In Parent
Features List
High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
