Battery Specifications Parent
Product Code
SOLIS 8111
Product Type
Date Updated
1781827200
Product Category
Url Slug
solis-8111
Compliances and Certifications
Primary Description

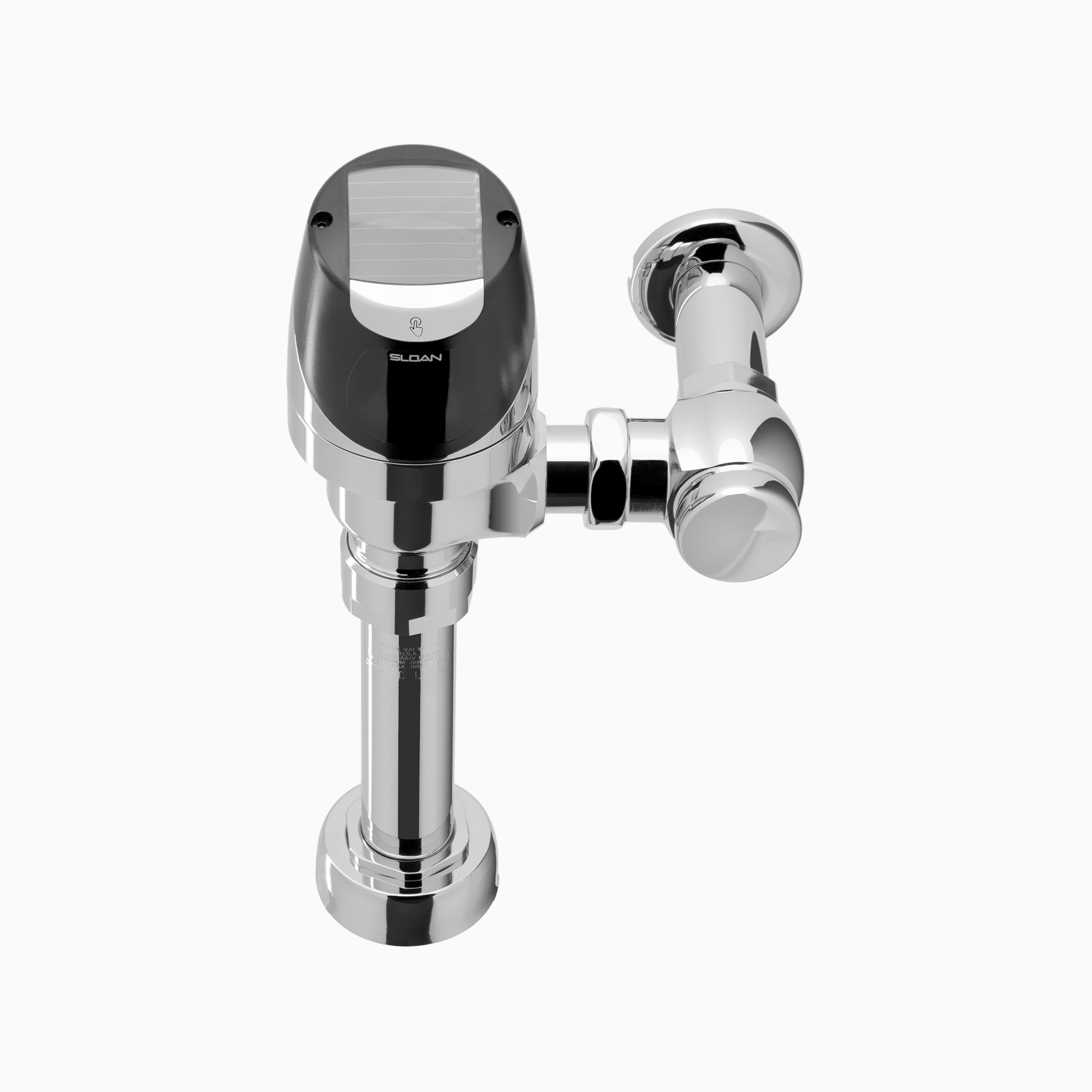

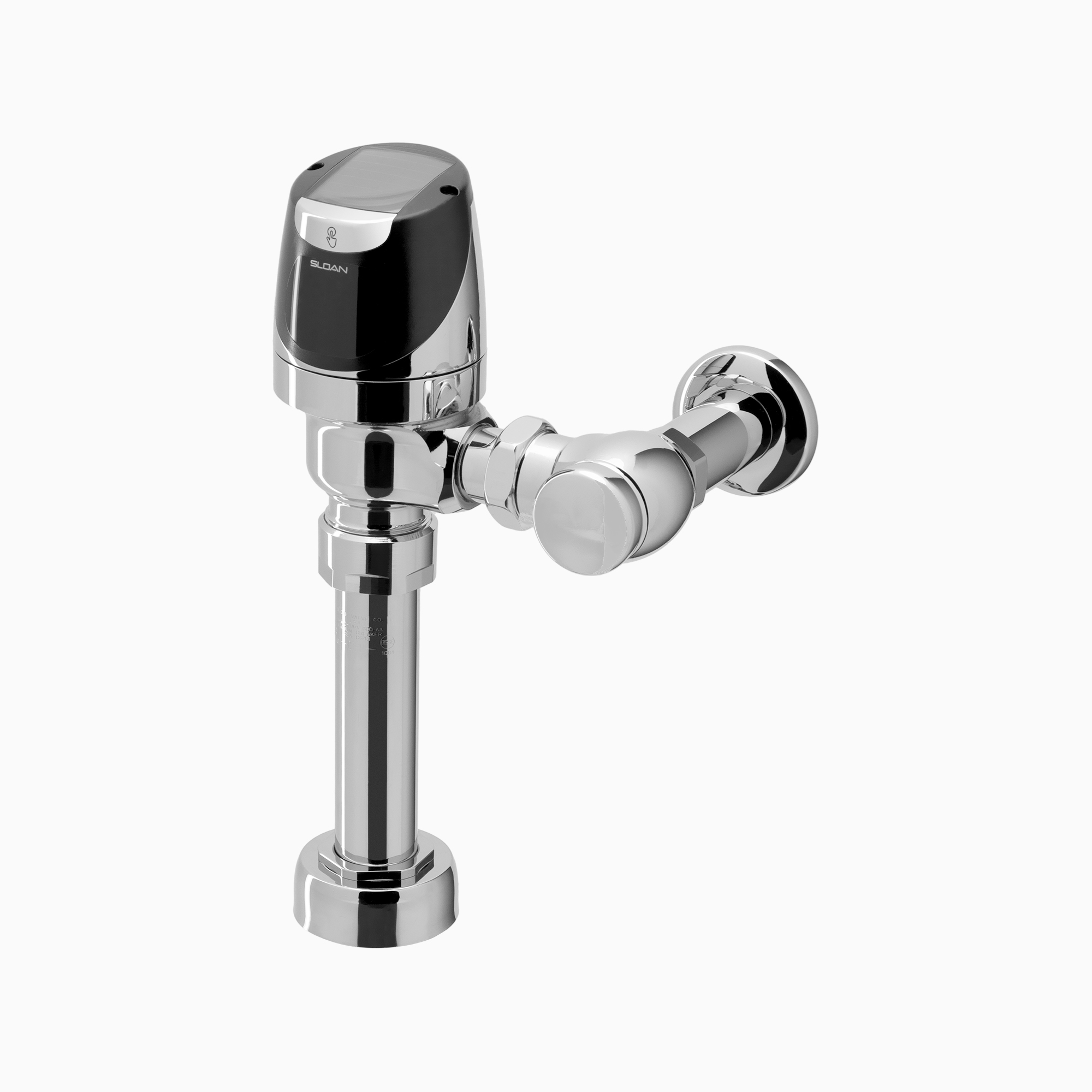

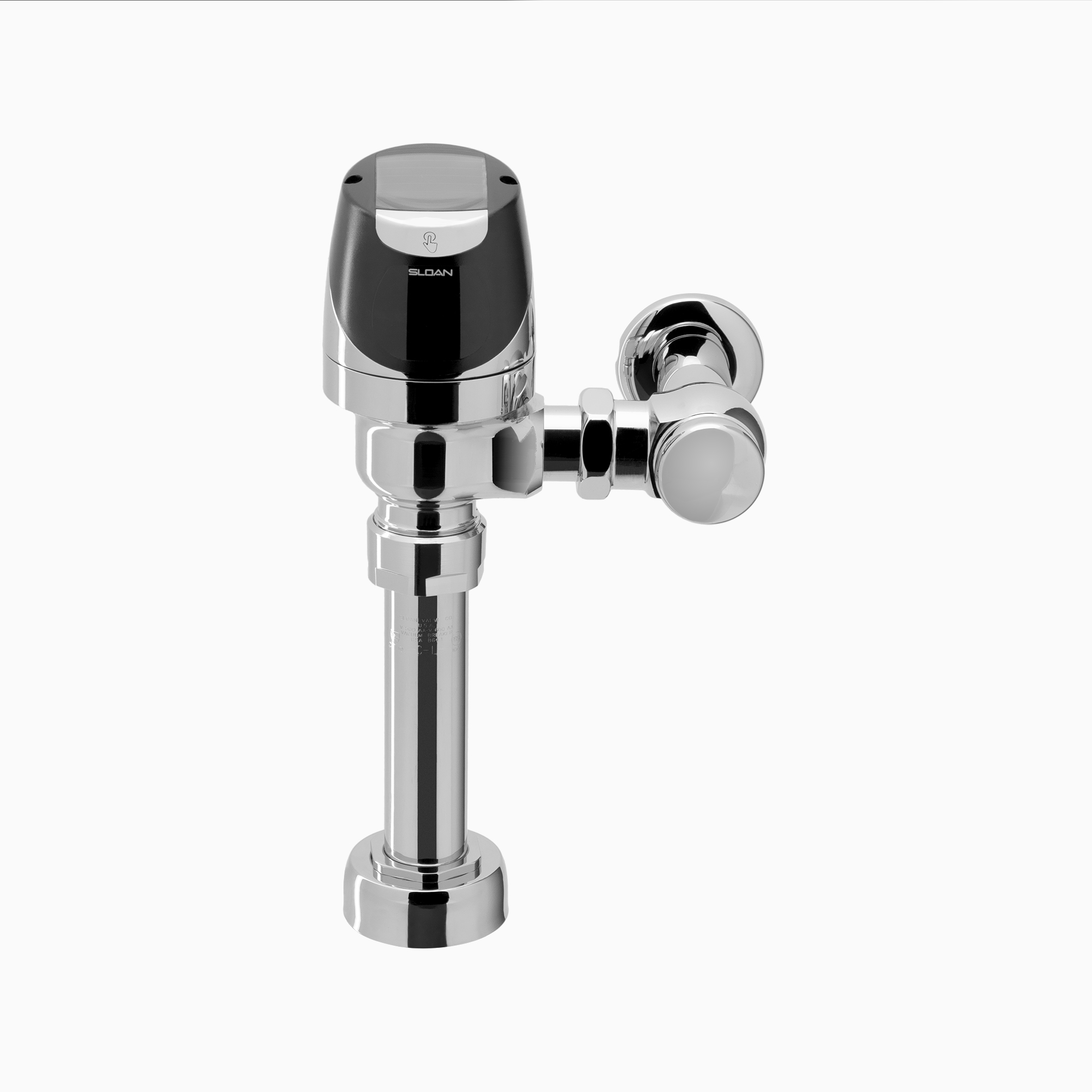

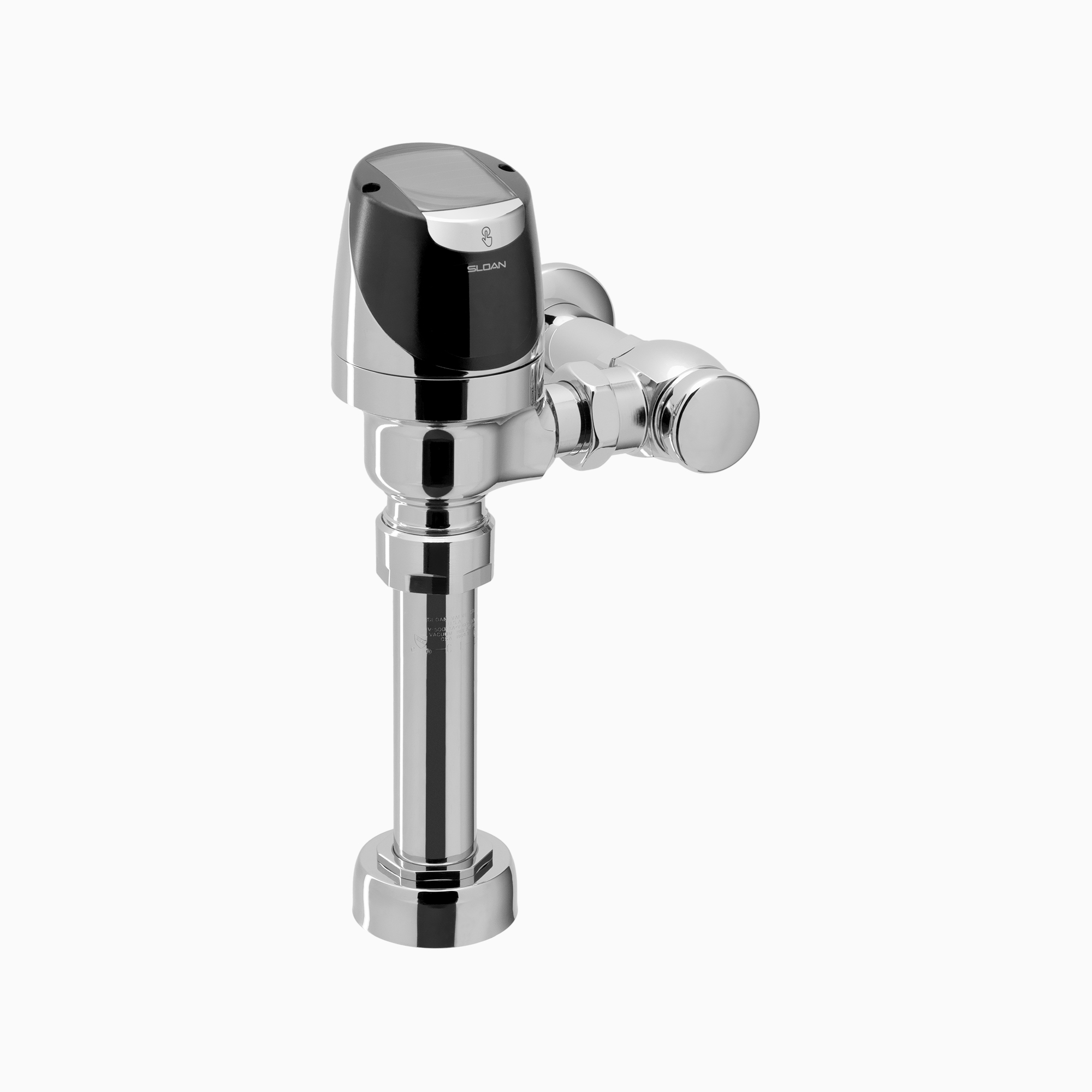

SOLIS® Sensor Flushometer
Series Description
SOLIS® Exposed Sensor Water Closet Flushometer
Imagenes Adicionales
Product Line
Guided Handwashing Display
0
Flushometer Installation
Exposed
Flushometer Activation
Sensor
Flushometer Valve
Diaphragm
Flushometer Fixture Type
Water Closet
Showerhead PWT
0
Sink Stations
0
Urinals SloanTec Glaze
0
Water Closets SloanTec Glaze
0
Sink Variable Width
0
Flushometer Product Line
Brochures
Installation Instruction
Repair & Maintenance Guide
Transparency Reports
BIM Model
Maintenance Schedule

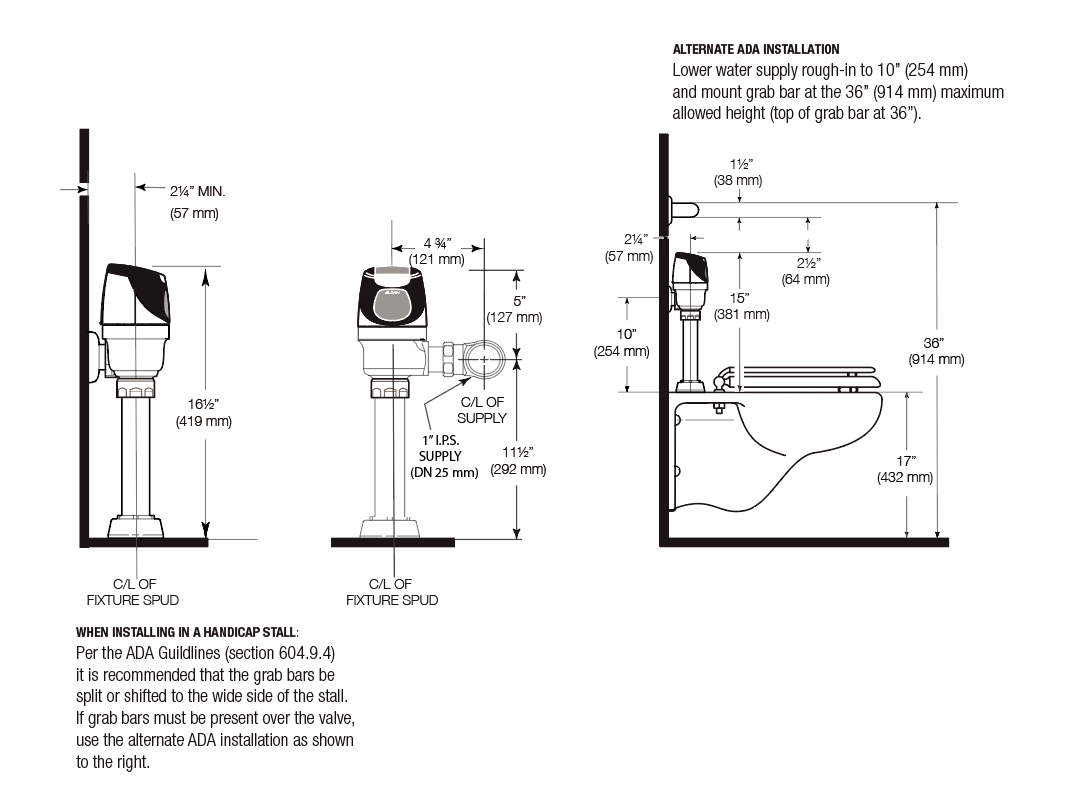

Rough-In Parent
Features List
State-of-the-art photovoltaic technology delivers solar operation
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Sweat solder adapter with cover tube and cast wall flange with set screw
Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
Four (4) Size AA Battery Back-up Power Source
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Engineered Metal Cover with replaceable Lens Window
Flex Tube Diaphragm designed for improved life and reduced maintenance
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Courtesy Flush® Override Button
Override button enables manual flushing if sensor’s power source fails
Valve shall be in compliance to the applicable sections of ASSE 1037
High copper, low zinc brass castings for dezincification resistance
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
