Brushed Stainless

Finish Image
Inoxidable Cepillado
Is Featured
1
color
e3e3e3
By admin , 8 October 2025

TRF 156-1.1-SF

Product Code
34000003
Product Type
Variations
Date Updated
1759968000
Product Category
Flushometer
Url Slug
trf-156-1-1-sf
Compliances and Certifications
cUPC Green Certified (Requires use of listed vacuum breaker that complies with ASSE 1001)
Finish
Brushed Stainless
Product Line
TruFlush
Flushometer Fixture Connection
Rear Spud
Flushometer Flush Volume gpf
1.10gpf
Numeric lpf Flushometer Flush Volume
4.20lpf
Parent
TRF 156
Flushometer Product Line
TruFlush
Spec Sheet Description
1.1 gpf, Filtered, Brushed Stainless Finish, Fixture Connection Rear Spud, Single Flush, Integrated Control Stop
By admin , 8 October 2025

TRF 196-0,25-SF

Product Code
3400018
Product Type
Variations
Date Updated
1759968000
Product Category
Flushometer
Url Slug
trf-196-0-25-sf
Compliances and Certifications
ADA Compliant
cUPC Green Certified (Requires use of listed vacuum breaker that complies with ASSE 1001)
Finish
Brushed Stainless
Product Line
TruFlush
Flushometer Fixture Connection
Rear Spud
Flushometer Flush Volume gpf
0.25gpf
Numeric lpf Flushometer Flush Volume
0.90lpf
Flushometer Water Efficiency
High Efficiency
Parent
TRF 196
Flushometer Product Line
TruFlush
Spec Sheet Description
0.25 gpf, Filtered, Brushed Stainless Finish, Fixture Connection Rear Spud, Single Flush
By admin , 8 October 2025

TRF 196-0.5-SF

Product Code
3400017
Product Type
Variations
Date Updated
1759968000
Product Category
Flushometer
Url Slug
trf-196-0-5-sf
Compliances and Certifications
ADA Compliant
cUPC Green Certified (Requires use of listed vacuum breaker that complies with ASSE 1001)
Finish
Brushed Stainless
Product Line
TruFlush
Flushometer Fixture Connection
Rear Spud
Flushometer Flush Volume gpf
0.50gpf
Numeric lpf Flushometer Flush Volume
1.90lpf
Flushometer Water Efficiency
High Efficiency
Parent
TRF 196
Flushometer Product Line
TruFlush
Spec Sheet Description
0.5 gpf, Filtered, Brushed Stainless Finish, Fixture Connection Rear Spud, Single Flush
By admin , 8 October 2025

ROYAL 111-1.28-SF

Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
1.5"
Supply Pipe
1"
Product Code
3510120
Product Type
Variations
Date Updated
1779321600
Product Category
Flushometer
Url Slug
royal-111-1-28-sf
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
LBC Credit
Made in the USA
Satisfies LEED Credits
EPA WaterSense Listed
WELL Building Standard
Finish
Brushed Stainless
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
1.28gpf
Numeric lpf Flushometer Flush Volume
4.80lpf
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 111
Flushometer Product Line
Royal®
Spec Sheet Description
1.28 gpf, Brushed Stainless Finish, Fixture Connection Top Spud, Single Flush
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
By admin , 8 October 2025

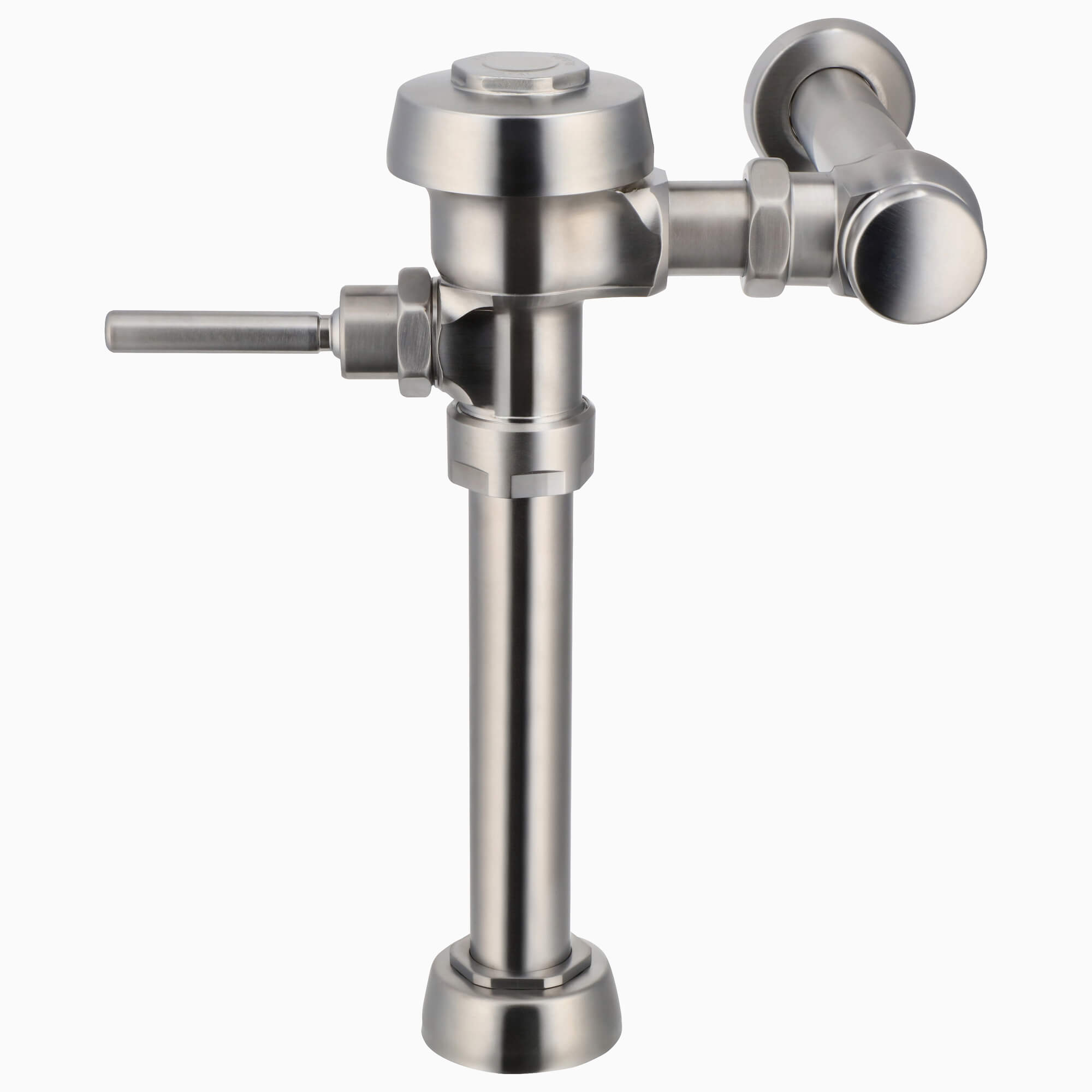

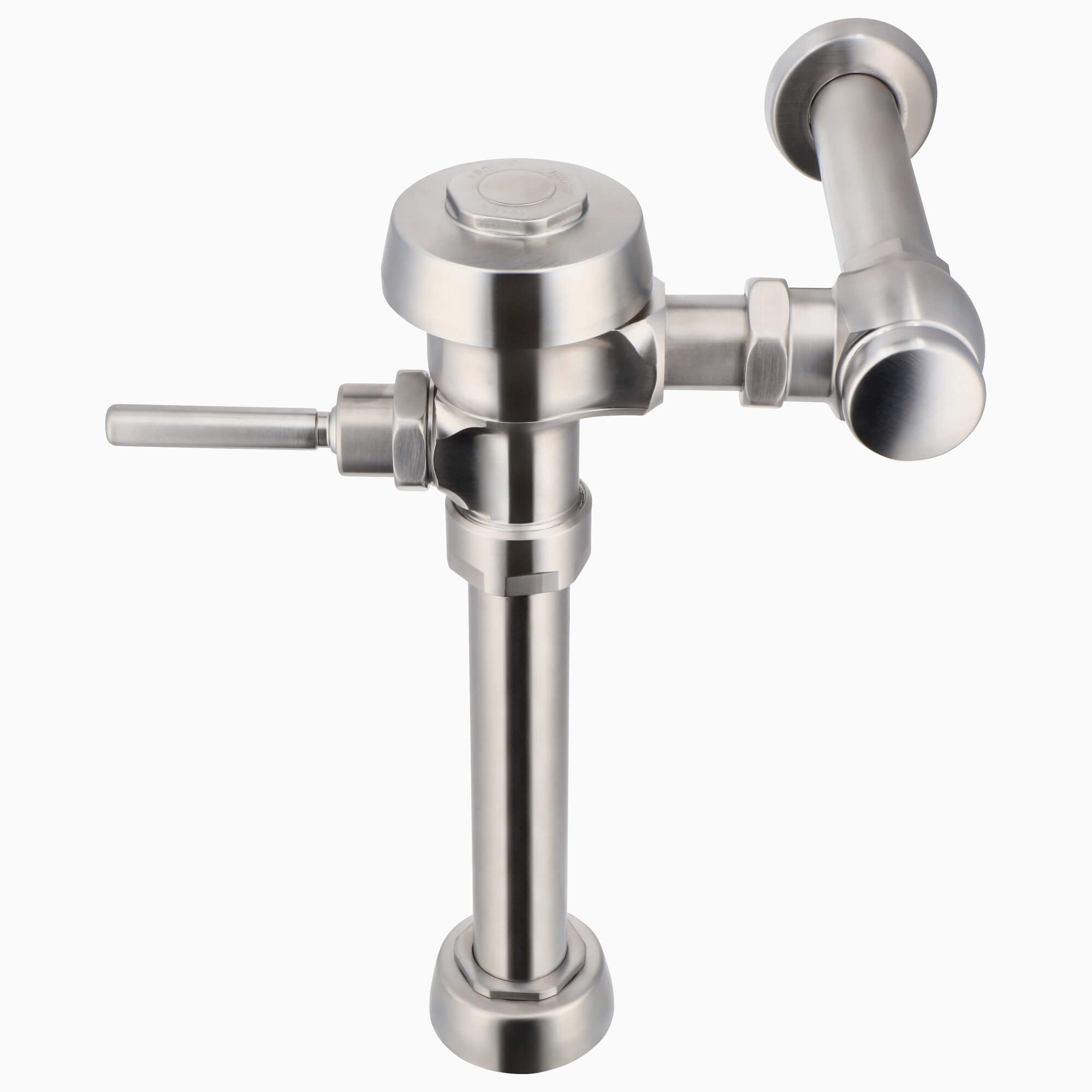

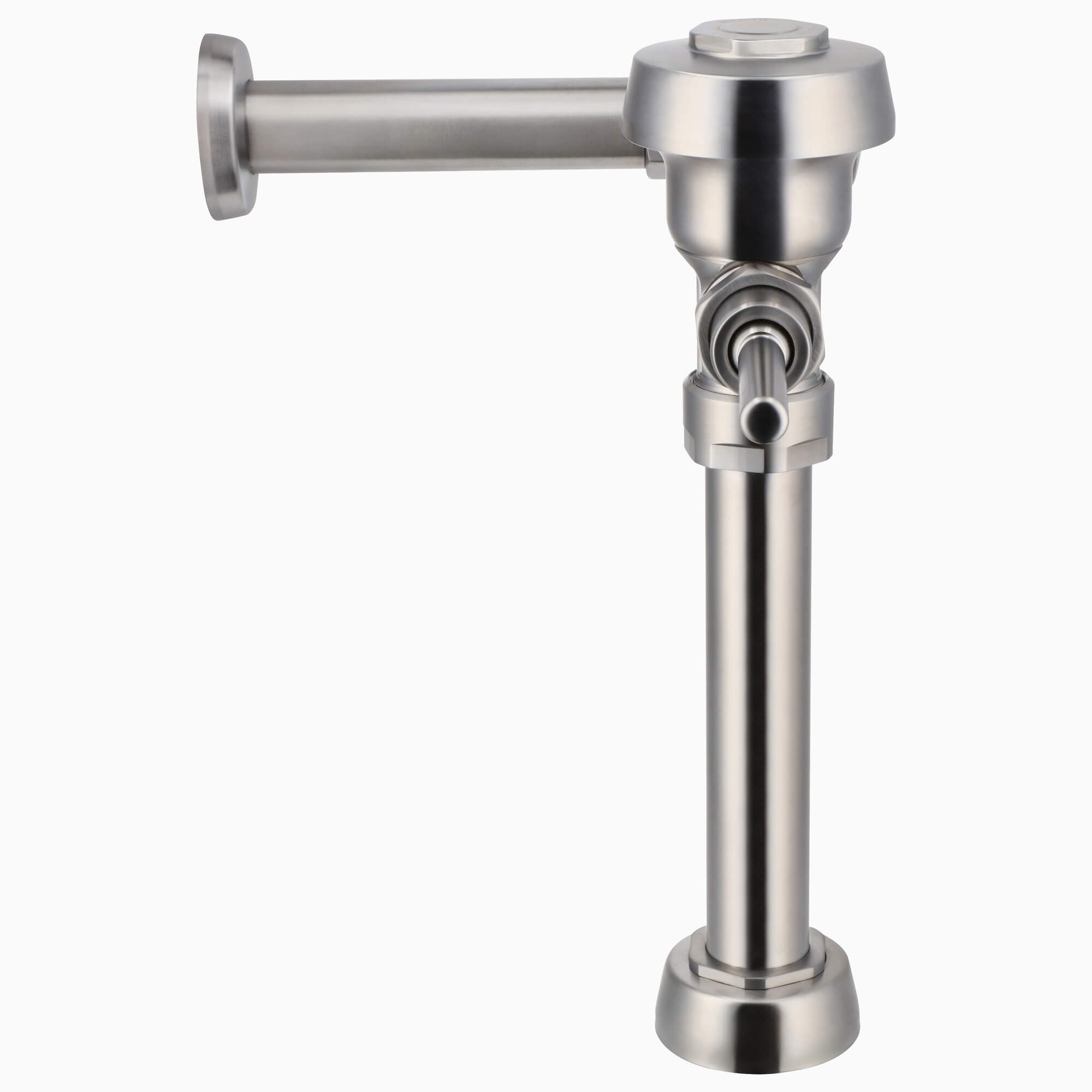

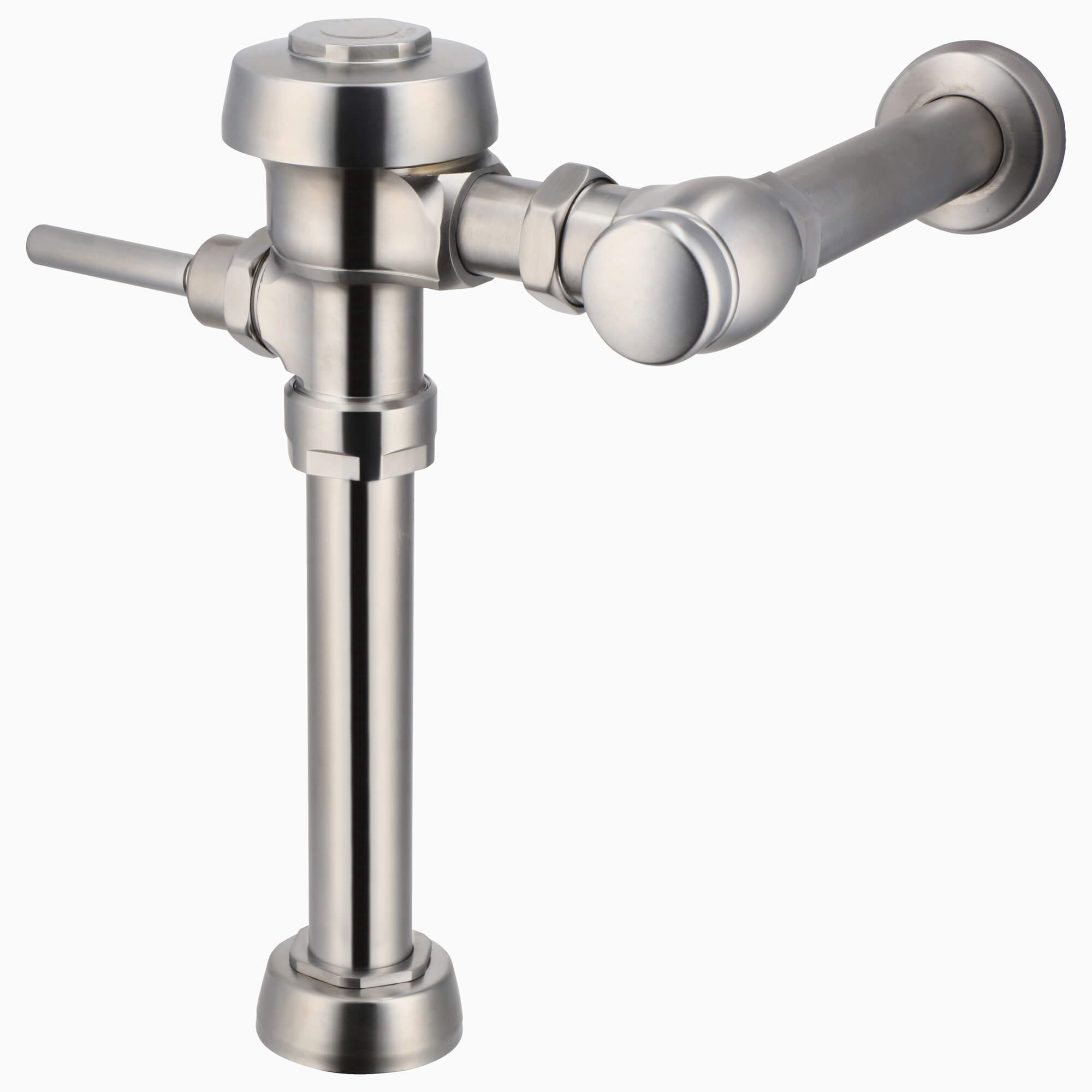

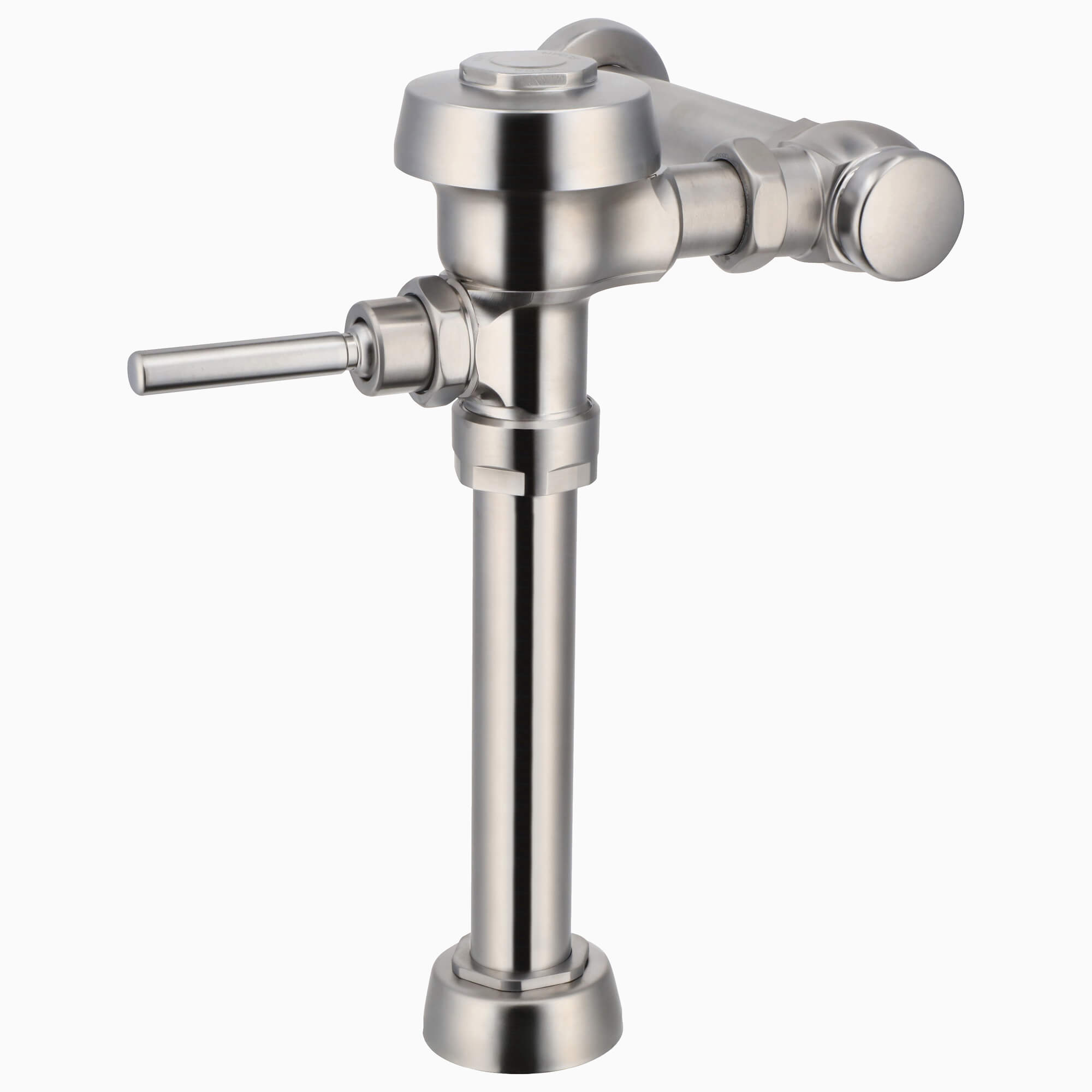

ROYAL 111-1.6-SF

Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
1.5"
Supply Pipe
1"
Product Code
3510011
Product Type
Variations
Date Updated
1779321600
Product Category
Flushometer
Url Slug
royal-111-1-6-sf
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
Made in the USA
Finish
Brushed Stainless
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
1.60gpf
Numeric lpf Flushometer Flush Volume
6.00lpf
Flushometer Water Efficiency
Low Consumption
Parent
ROYAL 111
Flushometer Product Line
Royal®
Spec Sheet Description
1.6 gpf, Brushed Stainless Finish, Fixture Connection Top Spud, Single Flush
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
By admin , 8 October 2025

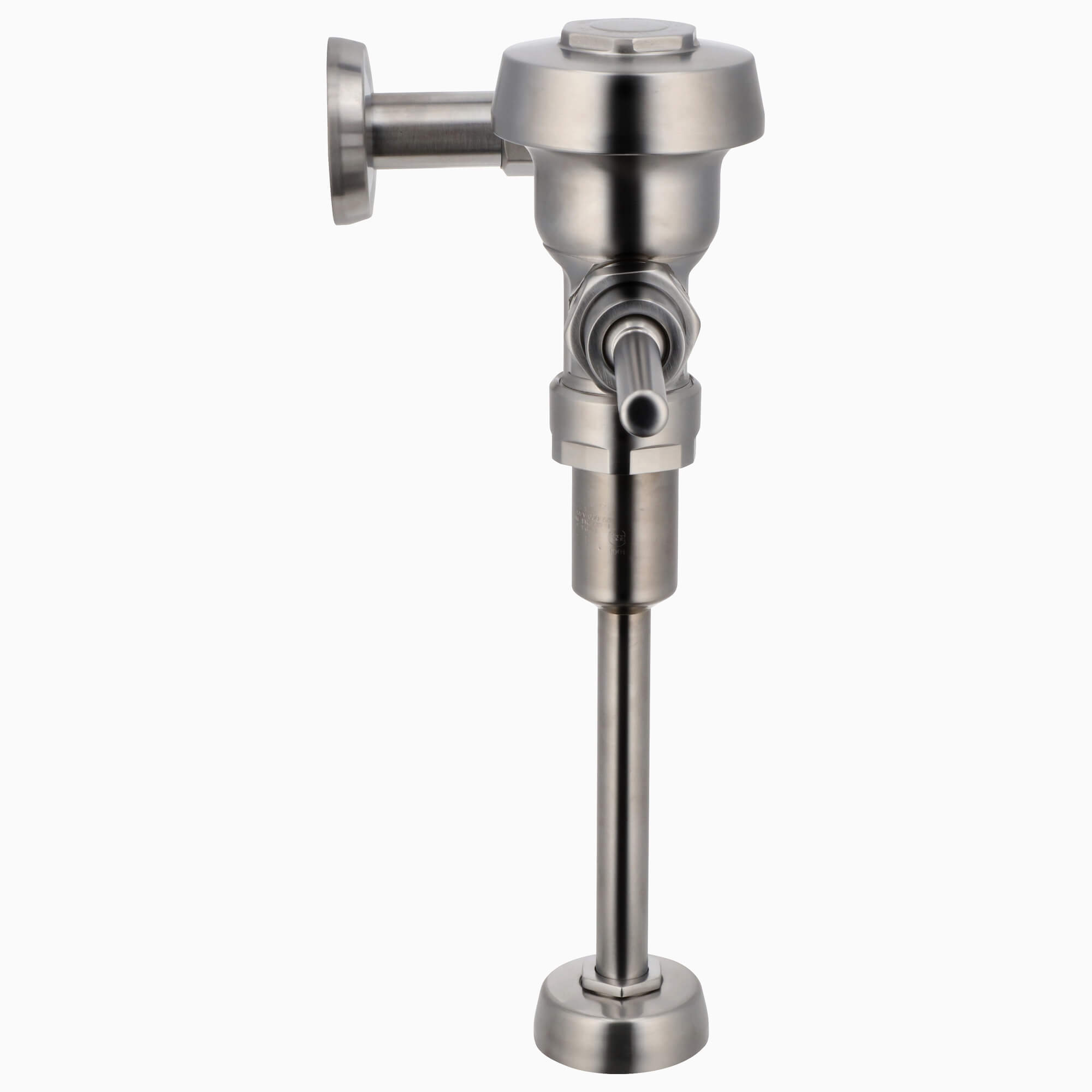

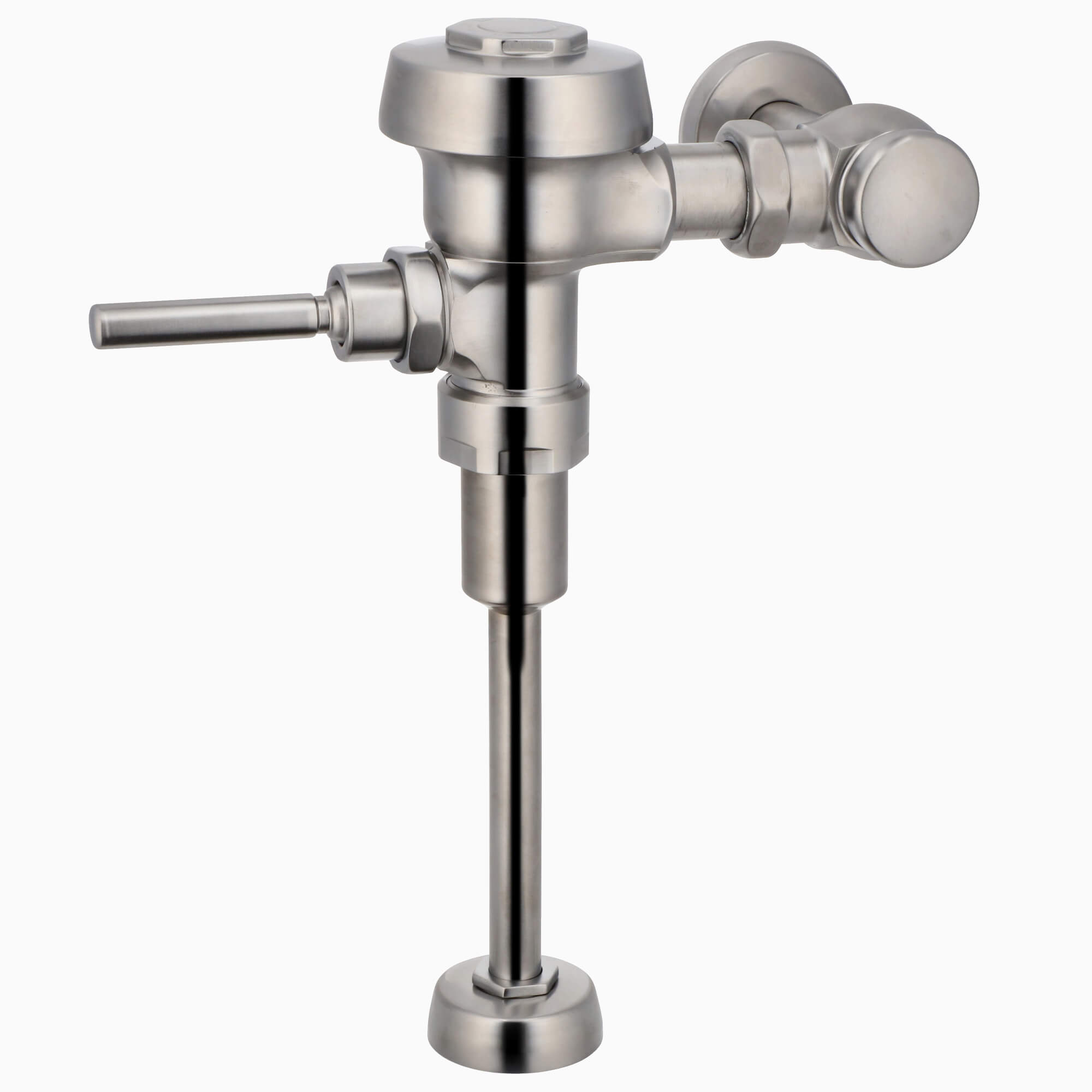

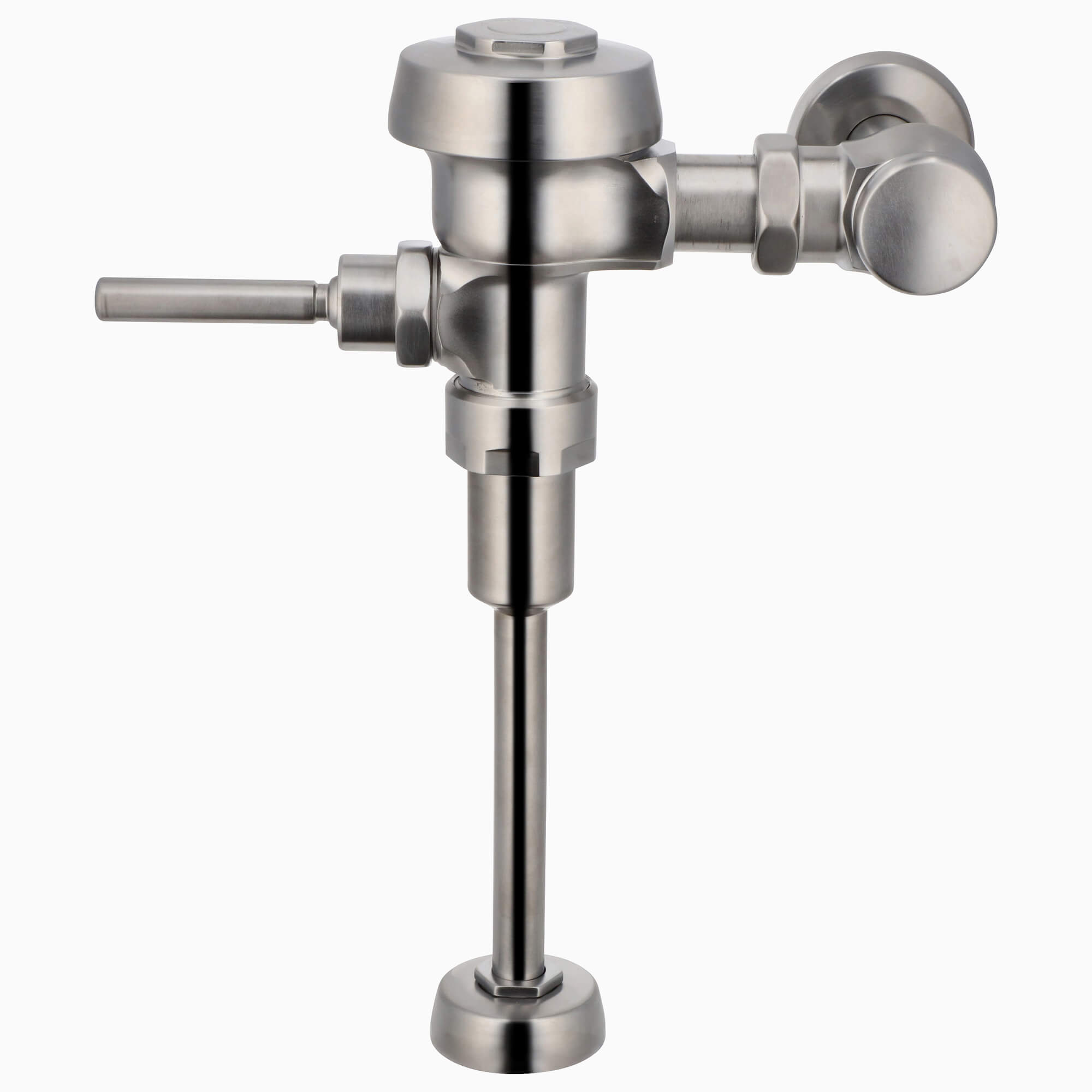

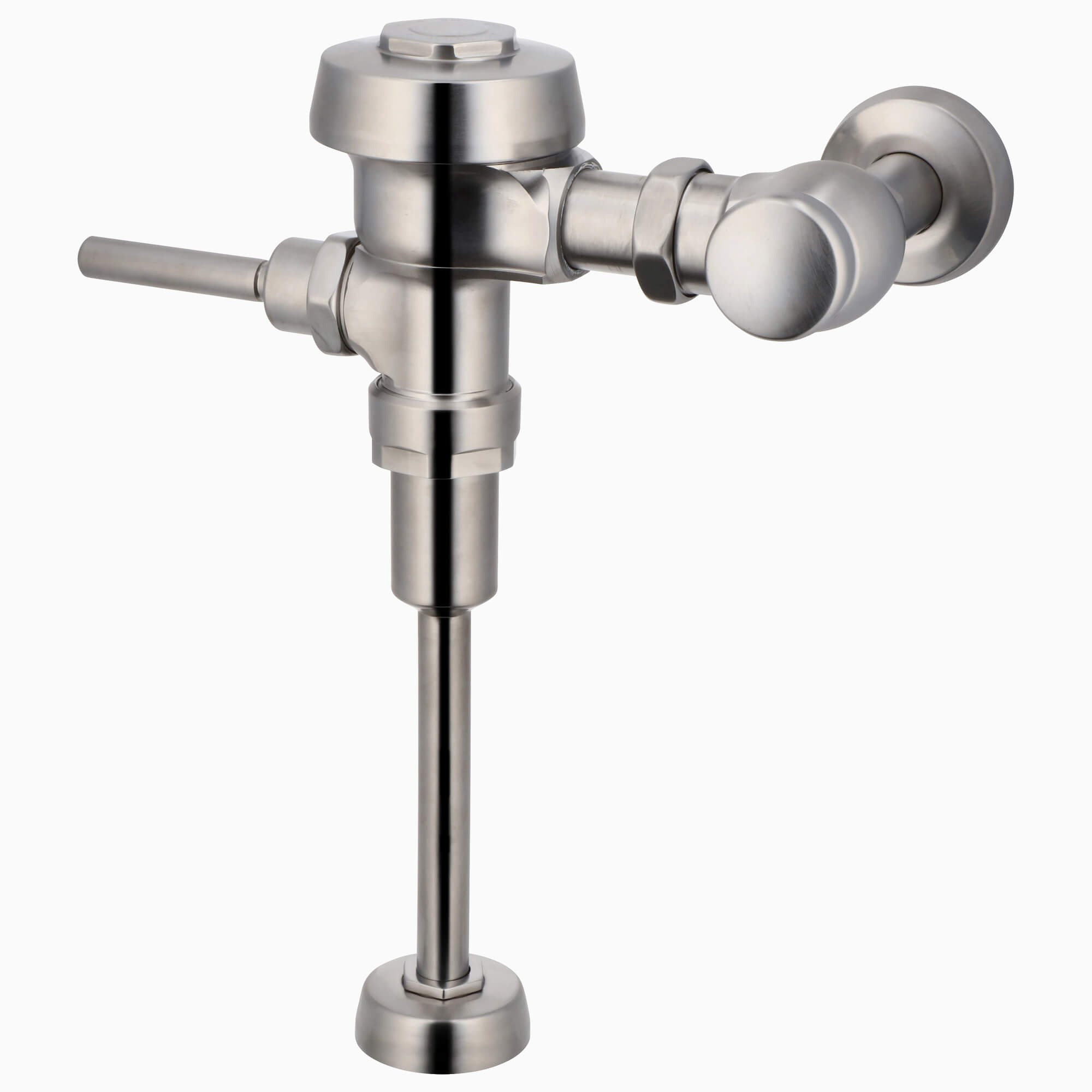

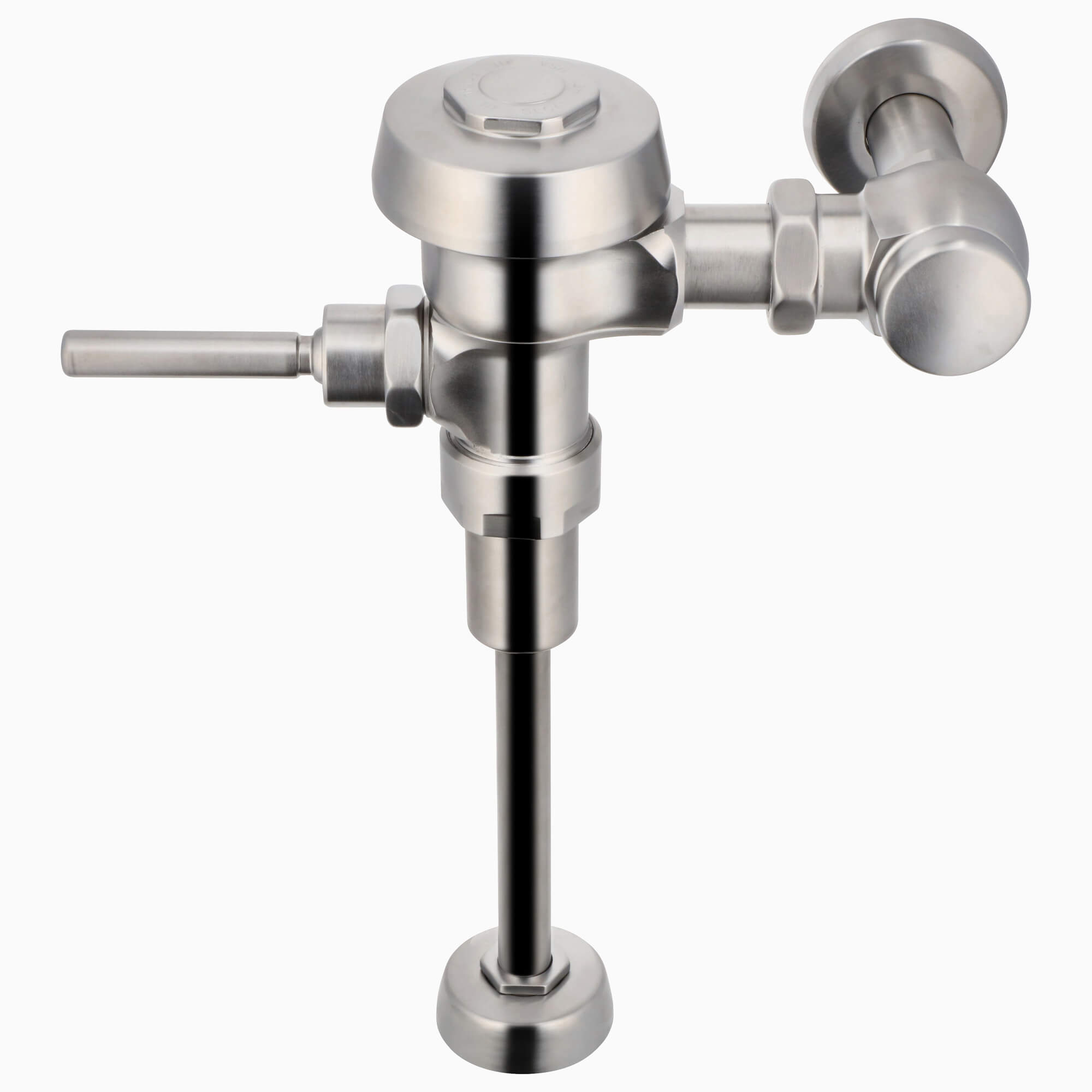

ROYAL 186-0.125-SF

Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
0.75"
Supply Pipe
0.75"
Product Code
3912732
Product Type
Variations
Date Updated
1779321600
Product Category
Flushometer
Url Slug
royal-186-0-125-sf
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
LBC Credit
Made in the USA
Satisfies LEED Credits
EPA WaterSense Listed
WELL Building Standard
Finish
Brushed Stainless
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
0.13gpf
Numeric lpf Flushometer Flush Volume
0.50lpf
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 186
Flushometer Product Line
Royal®
Spec Sheet Description
0.125 gpf, Brushed Stainless Finish, Fixture Connection Top Spud, Single Flush
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
By admin , 8 October 2025

ROYAL 186 ESS-0.125-SF-TMO-24V

Bypass
Dual-Filtered Bypass
Control Stop
3/4"
Override
True Mechanical
Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
0.75"
Supply Pipe
0.75"
Voltage
24V
Product Code
3452651
Product Type
Variations
Date Updated
1779321600
Product Category
Flushometer
Url Slug
royal-186-ess-0-125-sf-tmo-24v
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
Satisfies LEED Credits
UL Certified
EPA WaterSense Listed
Finish
Brushed Stainless
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
0.13gpf
Numeric lpf Flushometer Flush Volume
0.50lpf
Flushometer Power Type
Hardwired
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 186 ESS
Flushometer Product Line
Royal®
Spec Sheet Description
0.125 gpf, Dual-Filtered Bypass, Brushed Stainless Finish, Fixture Connection Top Spud, Single Flush, 3/4" Control Stop, True Mechanical Override, Hardwired, Sensor-Operated, 24V
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
By admin , 8 October 2025

ROYAL 111 ESS-1.6-SF-TMO-24V

Control Stop
1"
Override
True Mechanical
Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
1.5"
Supply Pipe
1"
Voltage
24V
Product Code
3450081
Product Type
Variations
Date Updated
1779321600
Product Category
Flushometer
Url Slug
royal-111-ess-1-6-sf-tmo-24v
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
cUPC Certified
UL Certified
Finish
Brushed Stainless
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
1.60gpf
Numeric lpf Flushometer Flush Volume
6.00lpf
Flushometer Power Type
Hardwired
Flushometer Water Efficiency
Low Consumption
Parent
ROYAL 111 ESS
Flushometer Product Line
Royal®
Spec Sheet Description
1.6 gpf, Brushed Stainless Finish, Fixture Connection Top Spud, Single Flush, 1" Control Stop, True Mechanical Override, Hardwired, Sensor-Operated, 24V
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
By admin , 8 October 2025

ROYAL 111 ESS-1.28-SF-TMO-24V

Control Stop
1"
Override
True Mechanical
Rough-In Dimension (L Dimension)
11.5"
Spud Coupling
1.5"
Supply Pipe
1"
Voltage
24V
Product Code
3450021
Product Type
Variations
Date Updated
1779321600
Product Category
Flushometer
Url Slug
royal-111-ess-1-28-sf-tmo-24v
Compliances and Certifications
ADA Compliant
BAA Compliant
BABAA Compliant
Satisfies LEED Credits
UL Certified
EPA WaterSense Listed
Finish
Brushed Stainless
Product Line
Royal®
Flushometer Fixture Connection
Top Spud
Flushometer Flush Volume gpf
1.28gpf
Numeric lpf Flushometer Flush Volume
4.80lpf
Flushometer Power Type
Hardwired
Flushometer Water Efficiency
High Efficiency
Parent
ROYAL 111 ESS
Flushometer Product Line
Royal®
Spec Sheet Description
1.28 gpf, Brushed Stainless Finish, Fixture Connection Top Spud, Single Flush, 1" Control Stop, True Mechanical Override, Hardwired, Sensor-Operated, 24V
Recommended Specifications
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
By admin , 8 October 2025

TRF 8156-1.28-SF

Product Code
3400116
Product Type
Variations
Date Updated
1759968000
Product Category
Flushometer
Url Slug
trf-8156-1-28-sf
Compliances and Certifications
ADA Compliant
cUPC Green Certified (Requires use of listed vacuum breaker that complies with ASSE 1001)
Finish
Brushed Stainless
Product Line
TruFlush
Flushometer Fixture Connection
Rear Spud
Flushometer Flush Volume gpf
1.28gpf
Numeric lpf Flushometer Flush Volume
4.80lpf
Flushometer Power Type
Battery
Flushometer Water Efficiency
High Efficiency
Parent
TRF 8156
Flushometer Product Line
TruFlush
Spec Sheet Description
1.28 gpf, Filtered, Brushed Stainless Finish, Fixture Connection Rear Spud, Single Flush, Electrical Override, Battery
Brushed Stainless
